HMMWV Axle Differential TM 9-2320-280-24P · Fig. 148

Every part in figure 148 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1102 Differential: 99 lines, 26 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

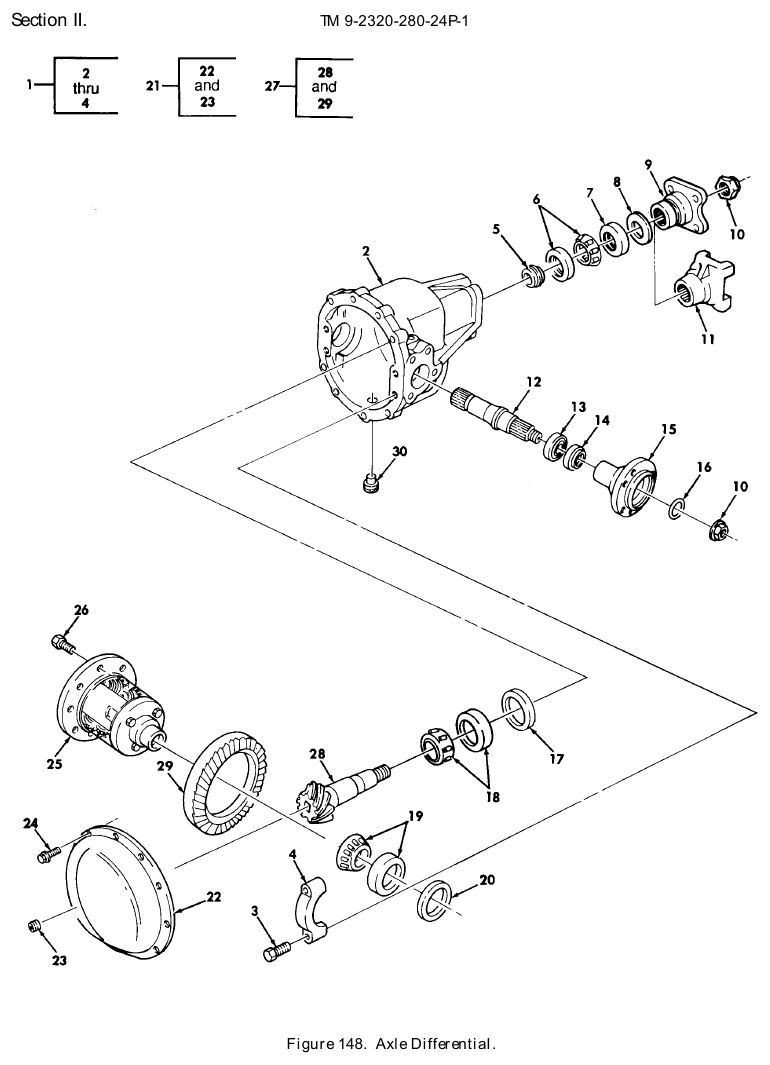

TM 9-2320-280-24P figure 148, Axle Differential: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Mechanical Drive Housing NSN 3040-01-174-9130 · P/N 5579424 HOUSING,MECHANICAL Fits: All models	1	We can source it $455.92 per eachgov't list price
2	Housing P/N 5583758 HOUSING Fits: All models	1	Ask us
3	Machine Bolt NSN 5306-01-254-2358 · P/N 5595662 BOLT,MACHINE 1/2-13 X 2.35 Fits: All models	4	9 in stock
4	Cap P/N 5579426 CAP Fits: All models	2	Ask us
5	Sleeve Spacer NSN 5365-01-180-2585 · P/N 5579450 SPACER,SLEEVE Fits: All models	1	1,574 in stock
6	Roller Tapered Bearing NSN 3110-00-854-1504 · P/N M88048-M88010 BEARING,ROLLER,TAPE Fits: All models	1	2 in stock $45–$85 eachtypical
7	Plain Encased Seal NSN 5330-01-174-8146 · P/N 41292 SEAL,PLAIN ENCASED Fits: All models	1	47 in stock $25–$40 eachtypical
8	Dirt and Liquid Deflector NSN 2520-01-297-5200 · P/N 5598183 DEFLECTOR,DIRT AND USBL EFF 44825 AND ABOVE Fits: All models	1	52 in stock
9	Companion Nonvehicular UN Flange NSN 3010-01-292-6428 · P/N 5582968 FLANGE,COMPANION,UN USBL EFF 1 TO 44824,REAR ONLY Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	49 in stock $149.99our price Buy online ↗
10	Self-Locking Hexagon Nut NSN 5310-01-175-0617 · P/N 5579442 NUT,SELF-LOCKING,HE 7/8-14 Fits: All models	3	16 in stock
11	Universal Joint Vehicular Yoke NSN 2520-01-188-5131 · P/N 5590551 YOKE,UNIVERSAL JOIN FRONT ONLY Fits: All A0 models except M1097, plus M1121	1	6 in stock $50–$90 eachtypical
11	Universal Joint Vehicular Yoke NSN 2520-01-267-7371 · P/N 12460374 YOKE,UNIVERSAL JOIN FRONT AND REAR Fits: All A1 and A2 models, plus M1097, M1123	2	34 in stock $62.35our price Buy online ↗
11	Universal Joint Vehicular Yoke NSN 2520-01-267-7371 · P/N 12460374 YOKE,UNIVERSAL JOIN REAR ONLY VEHICLES USBL EFF 44825 AND ABOVE Fits: All A0 models except M1097, plus M1121	1	34 in stock $62.35our price Buy online ↗
12	Axle Automotive Shaft NSN 2520-01-174-9580 · P/N 5579991 SHAFT,AXLE,AUTOMOTI Fits: All models	1	1 in stock $85–$140 eachtypical
13	Ball Annular Bearing NSN 3110-00-155-6152 · P/N P207K BEARING,BALL,ANNULA Fits: All models	2	116 in stock $45–$85 eachtypical
14	Plain Encased Seal NSN 5330-01-174-8145 · P/N 6009472 SEAL,PLAIN ENCASED Fits: All models	2	10 in stock $25–$50 eachtypical
15	Output Shaft Flange NSN 2520-01-174-5849 · P/N 5593817 FLANGE,OUTPUT SHAFT Fits: All models	2	1 in stock $150.85 per eachgov't list price
16	Preformed Packing NSN 5330-01-487-7129 · P/N 5939517 PACKING,PREFORMED Fits: All models	2	5 in stock
17	Ring Spacer NSN 5365-01-381-4487 · P/N 5579445-54 SPACER,RING 0.1110-0.1120 PART OF KIT P/N 5579445 Fits: All models	1	47 in stock
17	Ring Spacer NSN 5365-01-382-3676 · P/N 5579445-55 SPACER,RING 0.1099-0.1109 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-0973 · P/N 5579445-56 SPACER,RING 0.1088-0.1098 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-3710 · P/N 5579445-57 SPACER,RING 0.1077-0.1087 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1170 · P/N 5579445-58 SPACER,RING 0.1066-0.1076 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1235 · P/N 5579445-59 SPACER,RING 0.1055-0.1065 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1181 · P/N 5579445-60 SPACER,RING 0.1044-0.1054 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1135 · P/N 5579445-61 SPACER,RING 0.1033-0.1043 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1177 · P/N 5579445-62 SPACER,RING 0.1022-0.1032 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1162 · P/N 5579445-63 SPACER,RING 0.1011-0.1021 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-3693 · P/N 5579445-64 SPACER,RING 0.1000-0.1010 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-3726 · P/N 5579445-65 SPACER,RING 0.0989-0.0999 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1273 · P/N 5579445-66 SPACER,RING 0.0978-0.0988 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1166 · P/N 5579445-67 SPACER,RING 0.0967-0.0977 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1157 · P/N 5579445-68 SPACER,RING 0.0956-0.0966 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1240 · P/N 5579445-69 SPACER,RING 0.0945-0.0955 PART OF KIT P/N 5579445 Fits: All models	1	25 in stock
17	Ring Spacer NSN 5365-01-382-3718 · P/N 5579445-70 SPACER,RING 0.0934-0.0944 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1132 · P/N 5579445-71 SPACER,RING 0.0923-0.0933 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1171 · P/N 5579445-72 SPACER,RING 0.0912-0.0922 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-3715 · P/N 5579445-73 SPACER,RING 0.0901-0.0911 PART OF KIT P/N 5579445 Fits: All models	1	We can source it $25–$45 eachtypical
17	Ring Spacer NSN 5365-01-388-4449 · P/N 5579445-74 SPACER,RING 0.0890-0.0900 PART OF KIT P/N 5579445 Fits: All models	1	We can source it $30–$70 eachtypical
17	Ring Spacer NSN 5365-01-382-3694 · P/N 5579445-75 SPACER,RING 0.0879-0.0889 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1159 · P/N 5579445-76 SPACER,RING 0.0868-0.0878 PART OF KIT P/N 5579445 Fits: All models	1	We can source it $30–$70 eachtypical
17	Ring Spacer NSN 5365-01-382-3447 · P/N 5579445-77 SPACER,RING 0.0857-0.0867 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-3700 · P/N 5579445-78 SPACER,RING 0.0846-0.0856 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
17	Ring Spacer NSN 5365-01-382-1058 · P/N 5579445-79 SPACER,RING 0.0835-0.0845 PART OF KIT P/N 5579445 Fits: All models	1	We can source it
18	Roller Tapered Bearing NSN 3110-00-406-9608 · P/N M802048M802011 BEARING,ROLLER,TAPE Fits: All models	1	8 in stock $85.00our price Buy online ↗
19	Roller Tapered Bearing NSN 3110-00-892-0896 · P/N LM603049LM603012 BEARING,ROLLER,TAPE Fits: All models	2	895 in stock $35–$75 eachtypical
20	Ring Spacer NSN 5365-01-381-5166 · P/N 5579453-44 SPACER,RING 0.0745-0.0755 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-9582 · P/N 5579453-45 SPACER,RING 0.0756-0.0766 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-5174 · P/N 5579453-46 SPACER,RING 0.0767-0.0777 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6332 · P/N 5579453-47 SPACER,RING 0.0778-0.0788 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6120 · P/N 5579453-48 SPACER,RING 0.0789-0.0799 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-380-5345 · P/N 5579453-49 SPACER,RING 0.0800-0.0810 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6151 · P/N 5579453-50 SPACER,RING 0.0811-0.0821 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6276 · P/N 5579453-51 SPACER,RING 0.0822-0.0832 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6223 · P/N 5579453-52 SPACER,RING 0.0833-0.0843 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6080 · P/N 5579453-53 SPACER,RING 0.0844-0.0854 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6250 · P/N 5579453-54 SPACER,RING 0.0855-0.0865 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6145 · P/N 5579453-55 SPACER,RING 0.0866-0.0876 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6174 · P/N 5579453-56 SPACER,RING 0.0877-0.0887 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6210 · P/N 5579453-57 SPACER,RING 0.0888-0.0898 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6292 · P/N 5579453-58 SPACER,RING 0.0899-0.0909 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6110 · P/N 5579453-59 SPACER,RING 0.0910-0.0920 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6158 · P/N 5579453-60 SPACER,RING 0.0921-0.0931 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6313 · P/N 5579453-61 SPACER,RING 0.0932-0.0942 PART OF KIT P/N 5579453 Fits: All models	1	190 in stock
20	Ring Spacer NSN 5365-01-381-6226 · P/N 5579453-62 SPACER,RING 0.0943-0.0953 PART OF KIT P/N 5579453 Fits: All models	1	We can source it $40–$75 eachtypical
20	Ring Spacer NSN 5365-01-381-6076 · P/N 5579453-63 SPACER,RING 0.0954-0.0964 PART OF KIT P/N 5579453 Fits: All models	1	50 in stock
20	Ring Spacer NSN 5365-01-381-6303 · P/N 5579453-64 SPACER,RING 0.0965-0.0975 PART OF KIT P/N 5579453 Fits: All models	1	50 in stock
20	Ring Spacer NSN 5365-01-381-6164 · P/N 5579453-65 SPACER,RING 0.0976-.0.0986 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6197 · P/N 5579453-66 SPACER,RING 0.0987-0.0997 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6229 · P/N 5579453-67 SPACER,RING 0.0998-0.1008 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6086 · P/N 5579453-68 SPACER,RING 0.1009-0.1019 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6122 · P/N 5579453-69 SPACER,RING 0.1020-0.1030 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6154 · P/N 5579453-70 SPACER,RING 0.1031-0.1041 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6188 · P/N 5579453-71 SPACER,RING 0.1042-0.1052 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6317 · P/N 5579453-72 SPACER,RING 0.1053-0.1063 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6240 · P/N 5579453-73 SPACER,RING 0.1064-0.1074 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6112 · P/N 5579453-74 SPACER,RING 0.1075-0.1085 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6258 · P/N 5579453-75 SPACER,RING 0.1086-0.1096 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6165 · P/N 5579453-76 SPACER,RING 0.1097-0.1107 PART OF KIT P/N 5579453 Fits: All models	1	We can source it $25–$50 eachtypical
20	Ring Spacer NSN 5365-01-381-6211 · P/N 5579453-77 SPACER,RING 0.1108-0.1118 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-9588 · P/N 5579453-78 SPACER,RING 0.1119-0.1129 PART OF KIT P/N 5579453 Fits: All models	1	27 in stock $25–$40 eachtypical
20	Ring Spacer NSN 5365-01-438-1556 · P/N 5579453-79 SPACER,RING 0.1130-0.1140 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6113 · P/N 5579453-80 SPACER,RING 0.1141-0.1151 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6261 · P/N 5579453-81 SPACER,RING 0.1152-0.1162 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
20	Ring Spacer NSN 5365-01-381-6175 · P/N 5579453-82 SPACER,RING 0.1163-0.1173 PART OF KIT P/N 5579453 Fits: All models	1	We can source it $25–$40 eachtypical
20	Ring Spacer NSN 5365-01-381-6278 · P/N 5579453-83 SPACER,RING 0.1174-0.1184 PART OF KIT P/N 5579453 Fits: All models	1	We can source it
21	Differential Cover NSN 2520-01-210-2624 · P/N 5582303 COVER,DIFFERENTIAL Fits: All models	1	1 in stock $77.00our price Buy online ↗
22	Cover P/N 5579436 COVER 5/16-18 X 5/8 Fits: All models	1	Ask us
23	Pipe Plug NSN 4730-01-257-3348 · P/N 5597050 PLUG,PIPE 1/2-14 Fits: All models	1	We can source it
24	Machine Screw NSN 5305-01-174-8625 · P/N 5579438 SCREW,MACHINE Fits: All models	12	We can source it
25	Differential Gear Unit NSN 2530-01-357-5056 · P/N 5936107 DIFFERENTIAL GEAR U Fits: All models	1	Sold out — we can source it
26	Cap Hexagon Head Screw NSN 5305-00-689-7472 · P/N MS35308-384 SCREW,CAP,HEXAGON H 7/16-20 X 7/8 Fits: All models	8	We can source it
27	Bevel Matched Gear Set NSN 3020-01-364-3398 · P/N 5935390 GEAR SET,BEVEL,MATC Fits: All A1 and A2 models, plus M1097, M1123	1	748 in stock $215.00our price Buy online ↗
27	Bevel Matched Gear Set NSN 3020-01-191-8784 · P/N 5579501 GEAR SET,BEVEL,MATC Fits: All A0 models except M1097, plus M1121	1	60 in stock $235.00our price Buy online ↗
28	Pinion Gear P/N 5935391 PINION GEAR Fits: All A1 and A2 models, plus M1097, M1123	1	Ask us
28	Pinion Gear P/N 5579435 PINION GEAR Fits: All A0 models except M1097, plus M1121	1	Ask us
29	Ring P/N 5935392 RING Fits: All A1 and A2 models, plus M1097, M1123	1	Ask us
29	Ring P/N 5579428 RING Fits: All A0 models except M1097, plus M1121	1	Ask us
30	Pipe Magnetic Plug NSN 4730-01-135-8310 · P/N A-A-59432-08 PLUG,PIPE,MAGNETIC 1/8-27 X 3/8 Fits: All models	1	We can source it quote only

Buy the 7 in-stock parts on our store ↗
