HMMWV Service Brake Caliper Assembly and Rotor TM 9-2320-280-24P · Fig. 158

Every part in figure 158 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1202 Service Brakes: 34 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

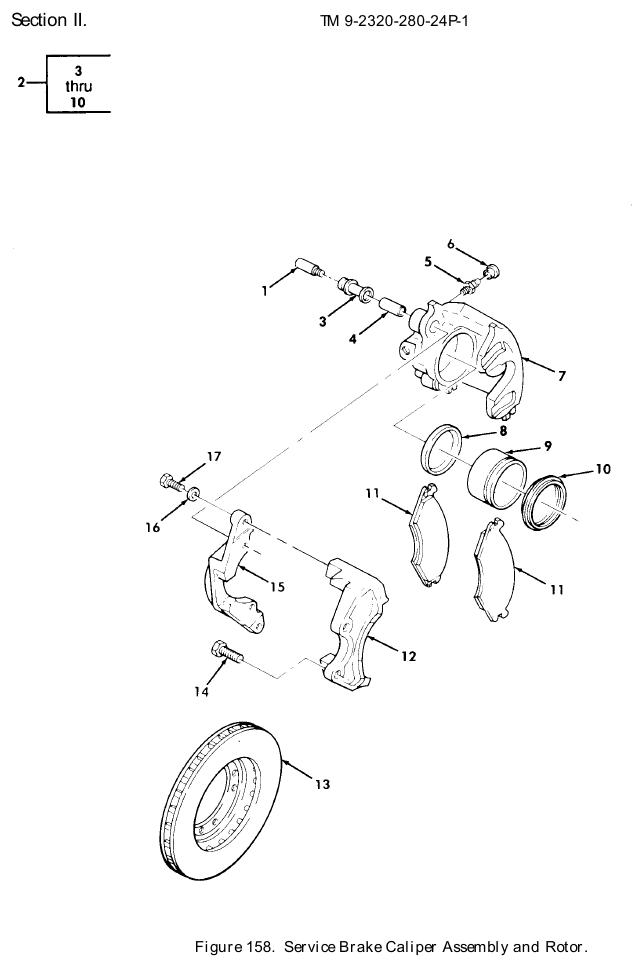

TM 9-2320-280-24P figure 158, Service Brake Caliper Assembly and Rotor: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Setscrew NSN 5305-01-185-8657 · P/N 099912-01 SETSCREW Fits: All models	4	4 in stock
2	Single Disk Brake NSN 2530-01-207-6256 · P/N 103700-02 HOUSING ASSEMBLY,CA REAR,R.H.,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	31 in stock
2	Single Disk Brake NSN 2530-01-204-2583 · P/N 103700-01 BRAKE,SINGLE DISK REAR,L.H.,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	We can source it
2	Single Disk Brake NSN 2530-01-207-6256 · P/N 103700-02 HOUSING ASSEMBLY,CA FRONT,L.H Fits: All A0 and A1 models, plus M1121	1	31 in stock
2	Single Disk Brake NSN 2530-01-204-2583 · P/N 103700-01 BRAKE,SINGLE DISK FRONT,R.H Fits: All A0 and A1 models, plus M1121	1	We can source it
2	CA Front Housing Assembly P/N 103700-09 HOUSING ASSEMBLY,CA FRONT,R.H Fits: All A2 models, plus M1123	1	Ask us
2	CA Front Housing Assembly P/N 103700-10 HOUSING ASSEMBLY,CA FRONT,L.H Fits: All A2 models, plus M1123	1	Ask us
3	Nonmetallic Bushing NSN 5365-01-186-7233 · P/N 108037-01 BUSHING,NONMETALLIC Fits: All models	2	200 in stock
4	Sleeve Bearing NSN 3120-01-186-7181 · P/N 108039-01 BEARING,SLEEVE Fits: All models	2	84 in stock
5	Bleeder Hydraulic System Valve NSN 4820-00-340-1405 · P/N 5578802 BLEEDER VALVE,HYDRA Fits: All models	1	8,042 in stock
6	Protective Dust and Moi Cap-Plug NSN 5340-01-186-1817 · P/N 5597172 CAP-PLUG,PROTECTIVE Fits: All models	1	83 in stock
7	Caliper Rear L.h. Housing P/N 103706-05 HOUSING,CALIPER REAR,L.H.,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	Ask us
7	Caliper Rear R.h. Housing P/N 103706-06 HOUSING,CALIPER REAR,R.H.,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	Ask us
7	Caliper Front Housing P/N 103706-06 HOUSING,CALIPER FRONT,L.H Fits: All A0 and A1 models, plus M1121	1	Ask us
7	Caliper Front Housing P/N 103706-05 HOUSING,CALIPER FRONT,R.H Fits: All A0 and A1 models, plus M1121	1	Ask us
7	Caliper Front Housing P/N 103706-07 HOUSING,CALIPER FRONT,R.H Fits: All A2 models, plus M1123	1	Ask us
7	Caliper Front Housing P/N 103706-08 HOUSING,CALIPER FRONT,L.H Fits: All A2 models, plus M1123	1	Ask us
8	Gasket NSN 5330-01-184-5421 · P/N 092554-01 GASKET PART OF KIT P/N 104870-01 Fits: All models	1	We can source it
9	Disc Brake Piston NSN 2530-01-185-6714 · P/N 10371009 PISTON,DISC BRAKE Fits: All models	1	106 in stock $30–$60 eachtypical
10	Vehicular Components Boot NSN 2530-01-185-7998 · P/N 103712-01 BOOT, VEHICULAR COM PART OF KIT P/N 104870-01 Fits: All models	1	998 in stock
11	Disk Brake Shoe P/N 106397-04 DISK BRAKE SHOE PART OF KIT P/N 57K0264 Fits: All A1 models, plus M1097	4	Ask us
11	Disk Brake Shoe Front and Rear P/N 106397-03 DISK BRAKE SHOE FRONT AND REAR, USBL EFF 1 THRU 44824 PART OF KIT P/N 57K0262 Fits: All A0 models except M1097, plus M1121	4	Ask us
11	Brake Shoe Set P/N 12835400 BRAKE SHOE SET PART OF KIT P/N RCSK17215 Fits: All A2 models, plus M1123	4	Ask us
12	Disc Brake Adapter NSN 2530-01-185-3879 · P/N 5578809 ADAPTER,DISC BRAKE FRONT,L.H Fits: All A0 and A1 models, plus M1121	1	164 in stock $119.41 per eachgov't list price
12	Brake Valve Adapter NSN 2530-01-314-1129 · P/N 10453002 ADAPTER,BRAKE VALVE LEFT AND RIGHT REAR,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	448 in stock $141.00our price Buy online ↗
12	Brake Valve Adapter NSN 2530-01-314-1129 · P/N 10453002 ADAPTER,BRAKE VALVE FRONT,R.H Fits: All A0 and A1 models, plus M1121	1	448 in stock $141.00our price Buy online ↗
12	Brake Vehicular Yoke NSN 2530-01-462-8079 · P/N 12821501 YOKE,BRAKE,VEHICULA FRONT,R.H Fits: All A2 models, plus M1123	1	11 in stock $129.87 per eachgov't list price
12	Brake Vehicular Yoke NSN 2530-01-462-8068 · P/N 12821801 YOKE,BRAKE,VEHICULA FRONT,L.H Fits: All A2 models, plus M1123	1	72 in stock $332.14 per eachgov't list price
13	Disc Brake Rotor NSN 2530-01-185-6712 · P/N 106980-02 ROTOR,DISC BRAKE Fits: All A0 and A1 models, plus M1121	2	58 in stock $351.32 per eachgov't list price
13	Disc Brake Rotor NSN 2530-01-420-7904 · P/N 6002218 ROTOR,DISC BRAKE Fits: All A2 models, plus M1123	2	911 in stock $71.00our price Buy online ↗
14	Cap Hexagon Head Screw NSN 5305-00-724-7220 · P/N B1821BH063C150N SCREW,CAP,HEXAGON H 5/8-11 X 1.50 Fits: All models	8	614 in stock
15	Disc Brake Yoke NSN 2530-01-185-6713 · P/N 104534-01 YOKE,DISC BRAKE Fits: All models	2	308 in stock $30–$60 eachtypical
16	Flat Washer NSN 5310-01-185-8690 · P/N 091247-01 WASHER,FLAT 3/8 Fits: All models	4	We can source it
17	Cap Hexagon Head Screw NSN 5305-01-185-8672 · P/N 096496-01 SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: All models	4	13 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
