HMMWV Personnel Heater Assembly and Attaching Hardware, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 337

Every part in figure 337 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2202 Accessory Items: 26 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

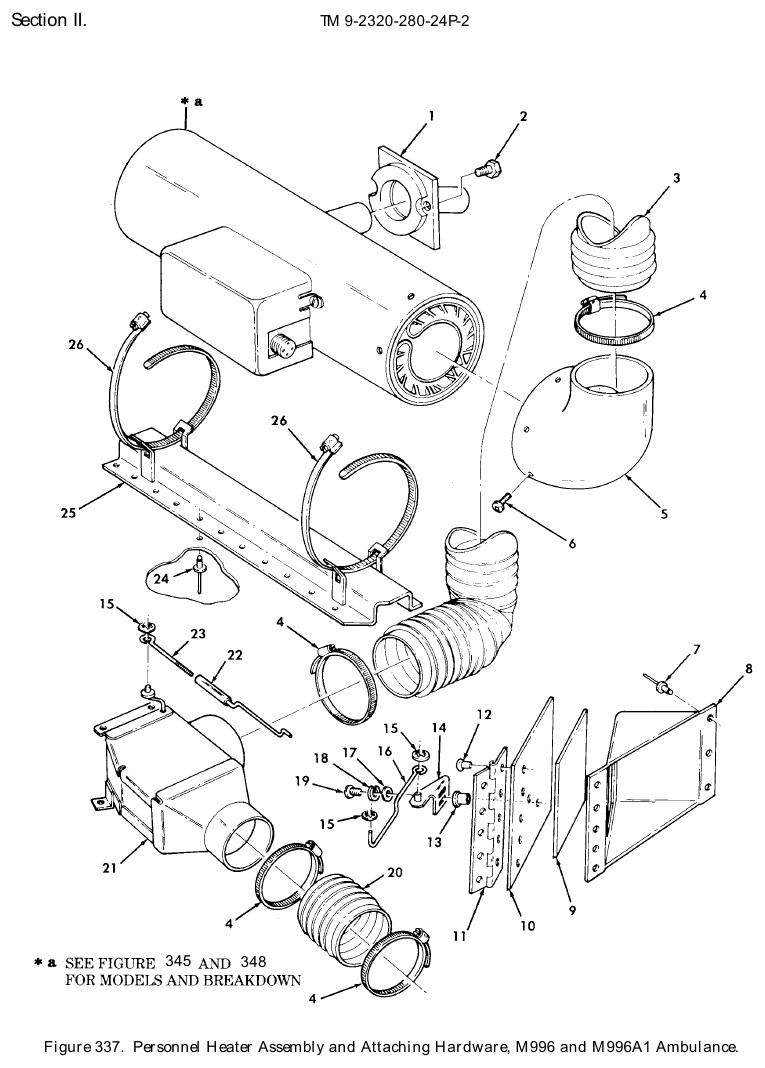

TM 9-2320-280-24P figure 337, Personnel Heater Assembly and Attaching Hardware, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Heater Shield Assembly NSN 2990-01-269-6625 · P/N 5598002 SHIELD ASSEMBLY,HEA Fits: M996, M996A1	1	We can source it $607.20 per eachgov't list price
2	Assembled Washer Screw NSN 5305-00-543-4709 · P/N 10-35936-7 SCREW,ASSEMBLED WAS Fits: M996, M996A1	2	We can source it
3	Nonmetallic Tubing P/N 12339265-12 TUBING,NONMETALLIC Fits: M996, M996A1	1	Ask us
4	Hose Clamp NSN 4730-01-296-9318 · P/N 11608950-18 CLAMP,HOSE Fits: M996, M996A1	4	8 in stock
5	Pipe Elbow NSN 4730-01-297-5111 · P/N 12341883 ELBOW,PIPE Fits: M996, M996A1	1	We can source it $3,164.32 per eachgov't list price
6	Machine Screw NSN 5305-00-984-6195 · P/N MS35206-247 SCREW,MACHINE Fits: M996, M996A1	3	We can source it
7	Blind Rivet NSN 5320-00-275-8344 · P/N AD45BS RIVET,BLIND 1/8 Fits: M996, M996A1	8	We can source it
8	Air Cleaner Intake Deflector NSN 2940-01-290-5014 · P/N 12341662 DEFLECTOR,AIR CLEAN Fits: M996, M996A1	1	We can source it $600.75 per eachgov't list price
9	Gasket NSN 5330-01-290-2709 · P/N 12341657 GASKET Fits: M996, M996A1	1	We can source it
10	Access Cover NSN 5340-01-289-3231 · P/N 5598253 COVER,ACCESS Fits: M996, M996A1	1	We can source it
11	Butt Hinge NSN 5340-01-290-2761 · P/N 5598256-C HINGE,BUTT Fits: M996, M996A1	1	We can source it $564.37 per eachgov't list price
12	Blind Rivet NSN 5320-00-899-0981 · P/N AD42BS RIVET,BLIND Fits: M996, M996A1	5	108 in stock
13	Plain Blind Rivet Nut NSN 5310-01-009-9785 · P/N MS27130-20 NUT,PLAIN,BLIND RIV #10-32 Fits: M996, M996A1	2	We can source it
14	Angle Bracket NSN 5340-01-290-2263 · P/N 5598250-B BRACKET,ANGLE Fits: M996, M996A1	1	We can source it $824.24 per eachgov't list price
15	Lock Washer NSN 5310-01-327-0387 · P/N 12341800 WASHER,LOCK Fits: M996, M996A1	3	We can source it
16	Rigid Connecting Link NSN 3040-01-290-6758 · P/N 5598247 CONNECTING LINK,RIG Fits: M996, M996A1	1	We can source it $1,361.68 per eachgov't list price
17	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M996, M996A1	2	909 in stock
18	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10 Fits: M996, M996A1	2	709 in stock
19	Machine Screw NSN 5305-00-989-7435 · P/N MS35207-264 SCREW,MACHINE #10-32 X .625 Fits: M996, M996A1	2	We can source it
20	Air Duct Hose NSN 4720-01-299-8469 · P/N FLX400132057600 HOSE,AIR DUCT 4.50 INCHES LONG Fits: M996, M996A1	1	We can source it $374.36 per eachgov't list price
21	Heater Diverter Box NSN 2540-01-270-3776 · P/N 12341227 DIVERTER BOX,HEATER Fits: M996, M996A1	1	We can source it $965.52 per eachgov't list price
22	Rigid Connecting Link NSN 3040-01-290-6757 · P/N 5598309 CONNECTING LINK,RIG Fits: M996, M996A1	1	We can source it $336.91 per eachgov't list price
23	Rigid Connecting Link NSN 3040-01-290-6760 · P/N 5598310 CONNECTING LINK,RIG Fits: M996, M996A1	1	We can source it $1,296.21 per eachgov't list price
24	Blind Rivet NSN 5320-01-254-4251 · P/N 5593050 RIVET,BLIND Fits: M996, M996A1	22	62 in stock
25	Plate Spacer NSN 5365-01-280-5875 · P/N 5597035 SPACER,PLATE Fits: M996, M996A1	1	We can source it $425.49 per eachgov't list price
26	Hose Clamp NSN 4730-00-908-6294 · P/N 96HSS CLAMP,HOSE Fits: M996, M996A1	2	633 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
