Catalog › Parts manuals › TM 9-2320-280-24P › Data Plates and Instruction Holders › Fig. 360

HMMWV Data Plates, TOW Carrier TM 9-2320-280-24P · Fig. 360

Every part in figure 360 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 2210 Data Plates and Instruction Holders: 3 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

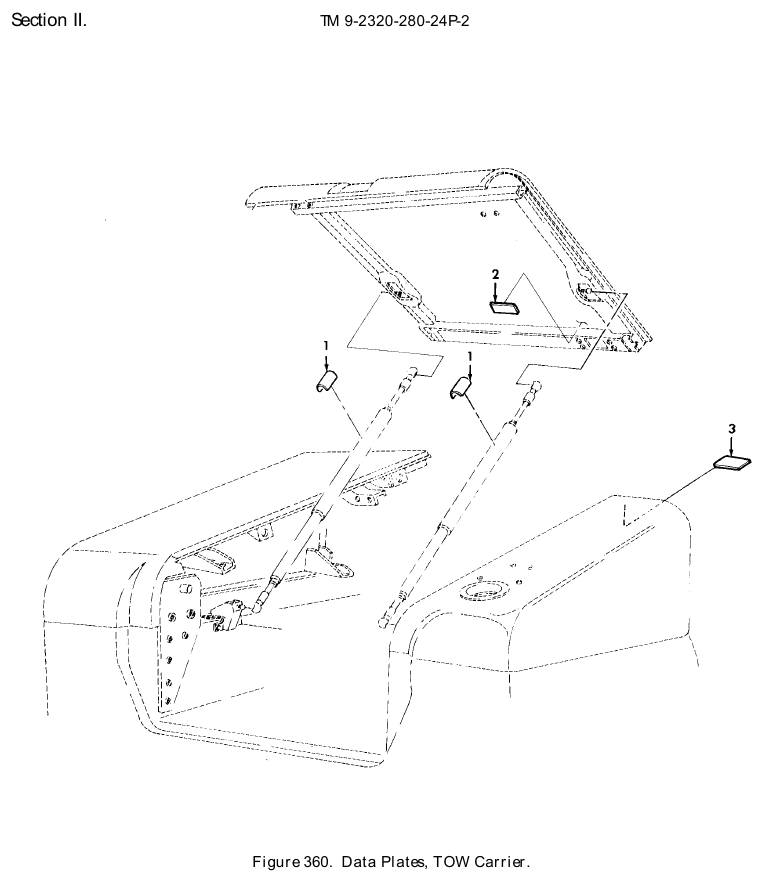

TM 9-2320-280-24P figure 360, Data Plates, TOW Carrier: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Decal NSN 7690-01-204-7785 · P/N 12340814 DECAL NO HAND HOLD Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
2	Identification Marker NSN 7690-01-204-7847 · P/N 12340852 MARKER,IDENTIFICATI Fits: All A0 models except M1042, M1097, plus M966A1, M1045A1, M1045A2, M1046A1, M1121	1	We can source it
3	Identification Marker NSN 7690-01-190-8501 · P/N 12340904 MARKER,IDENTIFICATI CBR OVER GARMENTS Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
