HMMWV Arctic Kit, Two Man Crew, Bow, and Mounting Components TM 9-2320-280-24P · Fig. 373

Every part in figure 373 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 12 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

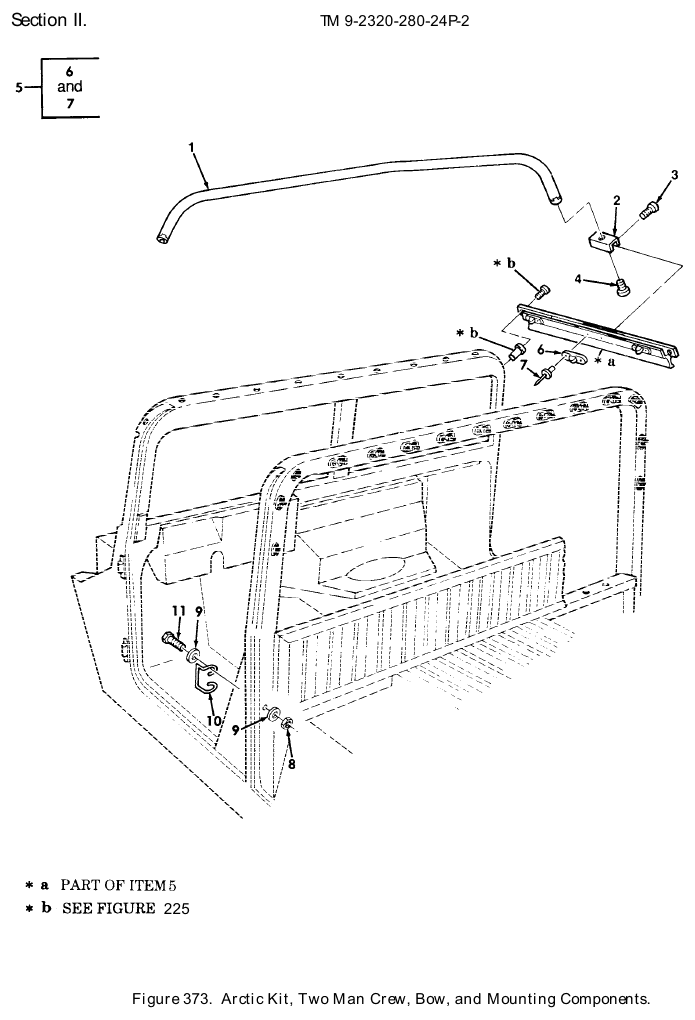

TM 9-2320-280-24P figure 373, Arctic Kit, Two Man Crew, Bow, and Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Top Bow NSN 2540-01-206-4115 · P/N 12340713 BOW,VEHICULAR TOP PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	27 in stock $100.99 per eachgov't list price
2	Retaining Strap NSN 5340-01-204-3862 · P/N 12340239 STRAP,RETAINING PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	4	358 in stock $25–$40 eachtypical
3	Machine Screw NSN 5305-00-059-3659 · P/N MS51958-63 SCREW,MACHINE #10-32 X 1/2 PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	4	169 in stock
4	Machine Screw NSN 5305-00-071-1313 · P/N MS51957-77 SCREW,MACHINE 1/4-20 X 3/8 PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	4 in stock
5	Handrail NSN 2590-01-198-2895 · P/N 12340603-1 RAIL ASSEMBLY,HAND L.H. PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	35 in stock $201.34 per assemblygov't list price
5	Handrail NSN 2590-01-197-4898 · P/N 12340603-2 RAIL ASSEMBLY,HAND R.H. PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	21 in stock $125.62 per assemblygov't list price
6	Turnbutton Fastener Stud NSN 5325-00-823-5999 · P/N XB78323-05001 STUD,TURNBUTTON FAS PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	3	22 in stock
7	Blind Rivet NSN 5320-00-083-5009 · P/N M24243/1-A403 RIVET,BLIND 1/8 DIA.,.126-.187 GRIP PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	6	641 in stock
8	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24 PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	4	904 in stock
9	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	4	2,036 in stock
10	Buckle NSN 5340-01-207-0717 · P/N 12339187 BUCKLE PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	2	101 in stock $17.50our price Buy online ↗
11	Machine Bolt NSN 5306-00-182-2027 · P/N 7346712 BOLT,MACHINE 5/16-24 PART OF KIT P/N 57K0137 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	4	360 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
