HMMWV Engine and Crew Compartment Heater Fuel Supply and Return Lines, Muffler, and Mounting Hardware TM 9-2320-280-24P · Fig. 397D

Every part in figure 397D of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3303 Winterization Kits: 14 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

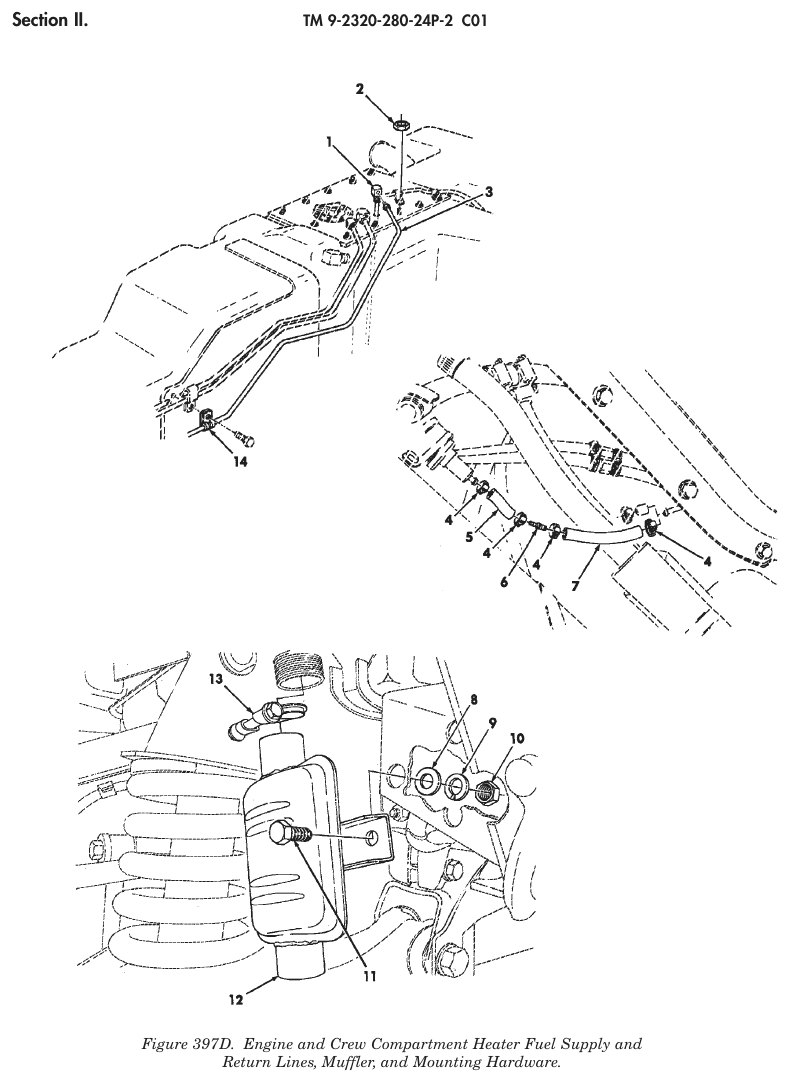

TM 9-2320-280-24P figure 397D, Engine and Crew Compartment Heater Fuel Supply and Return Lines, Muffler, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Metal Tube Assembly NSN 4710-01-359-2956 · P/N 12338548-2 TUBE ASSEMBLY,METAL PART OF KIT P/N 57K3497 Fits: All models	1	94 in stock $25–$55 eachtypical
2	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING PART OF KIT P/N 57K3497 Fits: All models	1	626 in stock
3	Metal Tube Assembly NSN 4710-01-358-6397 · P/N 12342747 TUBE ASSEMBLY,METAL PART OF KIT P/N 57K3497 Fits: All models	1	1,204 in stock $29.89our price Buy online ↗
4	Hose Clamp NSN 5998-01-118-1278 · P/N MMF4-SS CLAMP,HOSE PART OF KIT P/N 57K3497 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1; all A2 models except M997A2, plus M1121, M1123	4	We can source it
5	Nonmetallic Make From Hose Hose P/N 9436711-2.0 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 9438381,2.00 INCHES LONG PART OF KIT P/N 57K3497 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1; all A2 models except M997A2, plus M1121, M1123	1	Ask us
6	Tube Reducer NSN 4730-01-474-6940 · P/N 12460438 REDUCER,TUBE PART OF KIT P/N 57K3497 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1; all A2 models except M997A2, plus M1121, M1123	1	We can source it $85–$145 eachtypical
7	Nonmetallic Make From Hose Hose P/N 9436356-AR HOSE,NONMETALLIC MAKE FROM HOSE,P/N 9438315,CUT LENGTH TO FIT PART OF KIT P/N 57K3497 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1; all A2 models except M997A2, plus M1121, M1123	1	Ask us
8	Flat Washer NSN 5310-01-408-6466 · P/N 9417098 WASHER,FLAT PART OF KIT P/N 57K3497 Fits: All models	1	2,500 in stock $25–$55 eachtypical
9	Lock Washer NSN 5310-00-011-6121 · P/N 120384 WASHER,LOCK PART OF KIT P/N 57K3497 Fits: All models	1	337 in stock
10	Plain Hexagon Nut NSN 5310-01-465-4525 · P/N 9418753 NUT,PLAIN,HEXAGON PART OF KIT P/N 57K3497 Fits: All models	1	34 in stock
11	Cap Hexagon Head Screw NSN 5305-00-947-4351 · P/N B1821BH075C100N SCREW,CAP,HEXAGON H PART OF KIT P/N 57K3497 Fits: All models	1	We can source it
12	Exhaust Muffler NSN 2990-01-475-3969 · P/N 19562D MUFFLER,EXHAUST Fits: All models	1	We can source it $166.80 per eachgov't list price
13	Loop Clamp NSN 5340-01-475-3164 · P/N 367400 CLAMP,LOOP Fits: All models	1	We can source it $25–$55 eachtypical
14	Loop Clamp NSN 5340-00-993-6207 · P/N MS21333-99 CLAMP,LOOP PART OF KIT P/N 57K3497 Fits: All models	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
