HMMWV Communications Kit, Radio Cables, (3) AN/VRC-46 TM 9-2320-280-24P · Fig. 428

Every part in figure 428 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 3307 Special Purpose Kits: 24 lines, 21 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

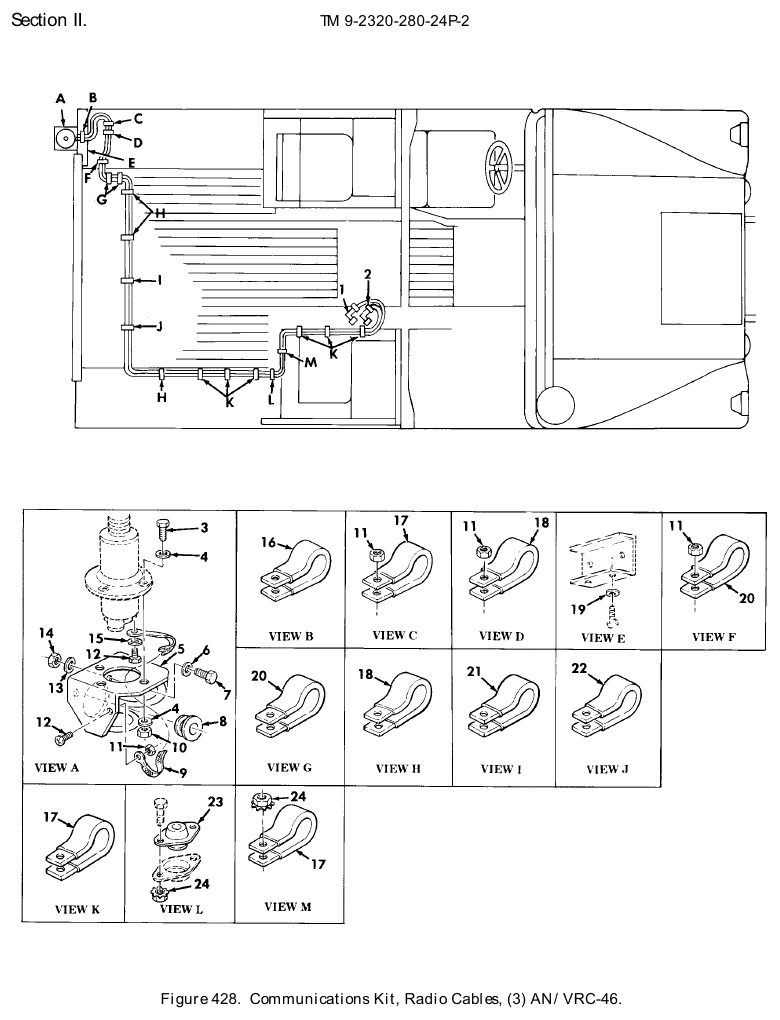

TM 9-2320-280-24P figure 428, Communications Kit, Radio Cables, (3) AN/VRC-46: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Radio Frequency Cable Assembly NSN 5995-01-291-6384 · P/N 5597496 CABLE ASSEMBLY,RADI PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	2 in stock quote only $234.64 per eachgov't list price
2	Special Purpose E Cable Assembly NSN 5995-01-251-6785 · P/N 12338089-4 CABLE ASSEMBLY,SPEC PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	9 in stock quote only $427.49 per eachgov't list price
3	Cap Hexagon Head Screw NSN 5305-00-782-9489 · P/N B1821BH038C200N SCREW,CAP,HEXAGON H 3/8-16 X 2.00 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	365 in stock
4	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	8	6 in stock
5	Support NSN 5985-01-215-9404 · P/N A3046166 SUPPORT,ANTENNA LEFT REAR PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
6	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	3	471 in stock
7	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	3	276 in stock
8	Nonmetallic Grommet NSN 5325-00-754-1155 · P/N MS35489-50 GROMMET,NONMETALLIC PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	We can source it
9	Electrical Lead NSN 6150-01-207-8120 · P/N 12338099-1 LEAD,ELECTRICAL PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	1 in stock
10	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	219 in stock
11	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	10 in stock
12	Machine Screw NSN 5305-00-059-3659 · P/N MS51958-63 SCREW,MACHINE #10-32 X .50 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	169 in stock
13	Flat Washer NSN 5310-01-208-7576 · P/N 12338095 WASHER,FLAT PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	3	1 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	3	354 in stock
15	Lock Washer NSN 5310-00-045-3296 · P/N MS35338-43 WASHER,LOCK #10 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	709 in stock
16	Loop Clamp NSN 5340-00-854-6730 · P/N MS21333-124 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	800 in stock
17	Loop Clamp NSN 5340-00-057-2906 · P/N MS21333-73 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	8	35 in stock
18	Loop Clamp NSN 5340-00-922-6300 · P/N MS21333-77 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	4	12 in stock
19	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	2	4,285 in stock
20	Loop Clamp NSN 5340-00-724-7038 · P/N MS21333-76 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	3	We can source it
21	Loop Clamp NSN 5340-00-958-8457 · P/N MS21333-78 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	13 in stock
22	Loop Clamp NSN 5340-00-050-2740 · P/N MS21333-75 CLAMP,LOOP PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	787 in stock
23	Nonmetallic Grommet NSN 5325-01-255-5063 · P/N 5590155 GROMMET,NONMETALLIC PART OF KIT P/N 5596946 Fits: M998, M998A1, M1038, M1038A1	1	2 in stock
24	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SEL-LOCKING,AS 1/4-20 PART OF KIT P/N 5596946 ADAPTER,ANTENNA TO ( 1) 425-13 BOLT,MACHINE ( 14) 417-4 BOLT,MACHINE ( 4) 417-7 BOLT,MACHINE ( 4) 418-4 BOLT,MACHINE ( 2) 418-7 BOLT,MACHINE ( 3) 418-6 BOLT,MACHINE ( 8) 419-5 BOLT,MACHINE ( 6) 419-7 BOLT,MACHINE ( 4) 419-8 BOLT,MACHINE Fits: M998, M998A1, M1038, M1038A1	2	570 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
