HMMWV Slave Receptacle and Cable Assemblies TM 9-2320-280-24P · Fig. 72

Every part in figure 72 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0612 Batteries, Storage: 25 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

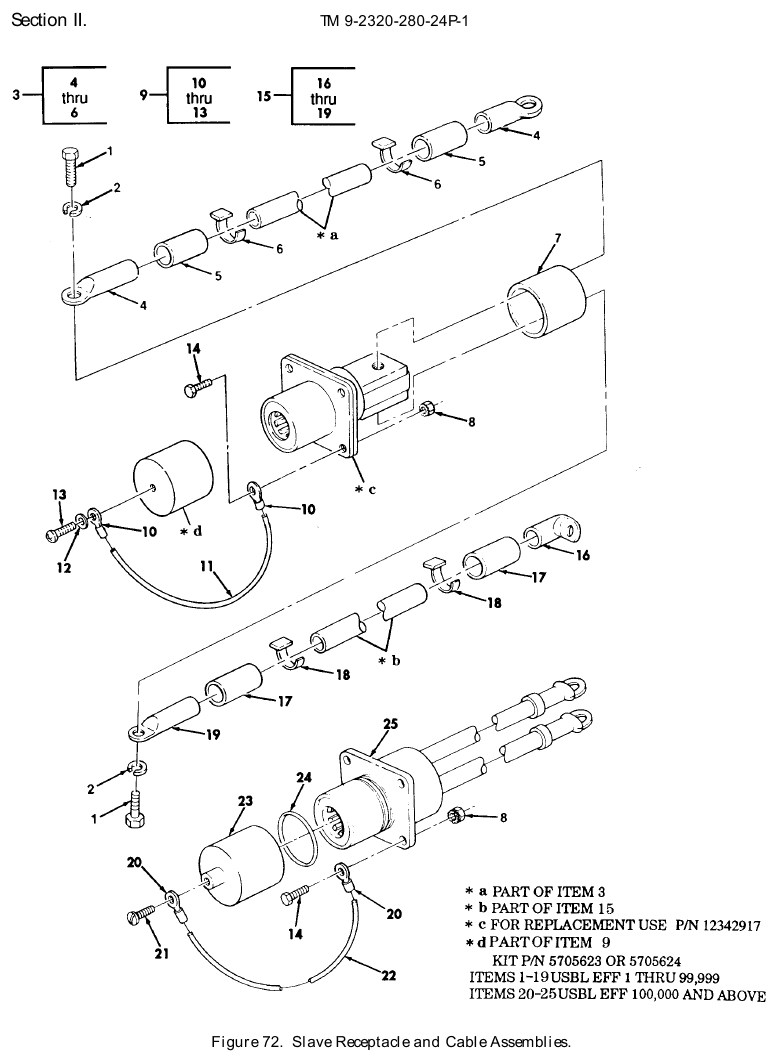

TM 9-2320-280-24P figure 72, Slave Receptacle and Cable Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Screw NSN 5305-00-269-3209 · P/N MS90726-58 SCREW,CAP,HEXAGON H 3/8-24 X 3/4, USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	2	We can source it
2	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK Fits: All A0 models except M1097, plus M1121	2	1,162 in stock
3	Cable Assembly Make From Wire P/N 5578878 CABLE ASSEMBLY MAKE FROM WIRE,P/N M13486/1-14,36 INCHES LONG,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	Ask us
4	Lug Terminal NSN 5940-00-115-5006 · P/N MS25036-133 TERMINAL,LUG USBL EFF 1 THRU 99, 999 Fits: All A0 models except M1097, plus M1121	2	30 in stock
5	Electrical Insulation Sleeving NSN 5970-00-221-5301 · P/N RESINITEEP69C INSULATION SLEEVING USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	2	We can source it
6	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	2	1 in stock $20.58our price Buy online ↗
7	Sleeve Spacer NSN 5365-01-206-7486 · P/N 12339337 SPACER,SLEEVE USBL EFF 1 THRU 99, 999 Fits: All A0 models except M1097, plus M1121	1	We can source it $50–$90 eachtypical
8	Plain Assembled Washer Nut NSN 5310-00-995-4130 · P/N 511-120800-00 NUT,PLAIN,ASSEMBLED 12-24,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	4	We can source it
9	Protective Dust and Moisture Cap NSN 5340-01-059-0114 · P/N 11675004 CAP,PROTECTIVE,DUST USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	6 in stock $50–$100 eachtypical
10	Lug Terminal NSN 5940-00-143-4794 · P/N C-828-10 TERMINAL,LUG USBL EFF 1 THRU 99, 999 Fits: All A0 models except M1097, plus M1121	2	223 in stock
11	Fibrous Slave Make From Cord Cord P/N P5006-4G-9 CORD,FIBROUS SLAVE MAKE FROM CORD, P/N P5006-4G,9 INCHES LONG,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	Ask us
12	Lock Washer NSN 5310-00-579-5554 · P/N MS35333-35 WASHER,LOCK USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	We can source it
13	Machine Screw NSN 5305-00-958-4357 · P/N MS35207-242 SCREW,MACHINE USBL EFF 1 THRU 99, 999 Fits: All A0 models except M1097, plus M1121	1	We can source it
14	Machine Screw NSN 5305-00-841-2044 · P/N 9418913 SCREW,MACHINE 12-24 X 7/8 Fits: All A0 models except M1097, plus M1121	4	We can source it
15	Cable Assembly Make From Wire P/N 5578877 CABLE ASSEMBLY MAKE FROM WIRE,P/N M13486/1-14,36 INCHES LONG,USEL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	Ask us
16	Lug Terminal NSN 5940-00-735-5520 · P/N TG33 TERMINAL,LUG USBL EFF 1 THRU 99, 999 Fits: All A0 models except M1097, plus M1121	1	We can source it
17	Electrical Insulation Sleeving NSN 5970-00-221-5301 · P/N TURB0LEX76B INSULATION SLEEVING USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	2	We can source it
18	Marker Band NSN 9905-00-893-3570 · P/N M43436/1-3 BAND,MARKER USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	2	1 in stock $20.58our price Buy online ↗
19	Lug Terminal NSN 5940-00-115-5006 · P/N MS25036-133 TERMINAL,LUG UABL EFF 1 THRU 99, 999 Fits: All A0 models except M1097, plus M1121	1	30 in stock
20	Lug Terminal NSN 5940-00-143-4794 · P/N MS25036-112 TERMINAL,LUG USBL EFF 100,000 AND ABOVE Fits: All A0 and A1 models, plus M1121	2	223 in stock
21	Machine Screw NSN 5305-00-984-6192 · P/N MS35206-244 SCREW,MACHINE #8-32 X 11.125,USBL EFF 100,000 AND ABOVE Fits: All A0 and A1 models, plus M1121	1	We can source it
22	Fiber Rope Assembly Make From Cord P/N P5006-4G-9 FIBER ROPE ASSEMBLY MAKE FROM CORD, P/N P5006-4G,9 INCHES LONG,USBL EFF 100,000 AND ABOVE Fits: All A0 and A1 models, plus M1121	1	Ask us
23	Protective Dust and Moisture Cap NSN 5340-01-315-7223 · P/N 12342306 CAP,PROTECTIVE,DUST USBL EFF 100, 000 AND ABOVE Fits: All A0 and A1 models, plus M1121	1	3 in stock $25–$40 eachtypical
24	O-Ring NSN 5331-00-297-9990 · P/N MS28775-222 O-RING USBL EFF 100,000 AND ABOVE Fits: All A0 and A1 models, plus M1121	1	76 in stock
25	Cable Assembly NSN 6150-01-317-5853 · P/N 12342303 CABLE ASSEMBLY,POWE USBL EFF 100, 000 AND ABOVE Fits: All A0 and A1 models, plus M1121	1	We can source it quote only

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
