HMMWV Engine and Container Assembly TM 9-2320-280-24P · Fig. 1

Every part in figure 1 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 01 Engine: 35 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

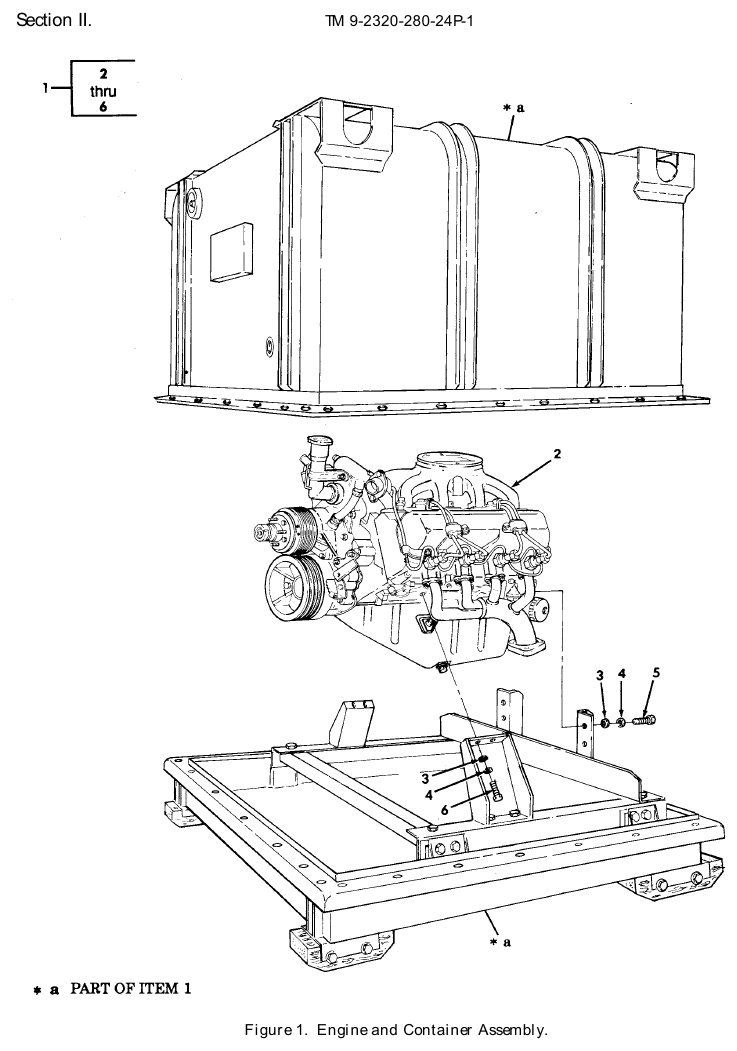

TM 9-2320-280-24P figure 1, Engine and Container Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Engine and Container NSN 2815-01-314-7940 · P/N 5705628 ENGINE AND CONTAINE 6.2 LITER Fits: All A0 and A1 models, plus M1121	1	1 in stock $11,397.00 per eachgov't list price
1	With Contain Engine NSN 2815-01-406-6675 · P/N 57K3226 ENGINE,WITH CONTAIN 1996 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	2 in stock $24,349.00 per eachgov't list price
1	With Contain Engine NSN 2815-01-439-6664 · P/N 57K3525 ENGINE,WITH CONTAIN 1997 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	9 in stock $24,349.00 per eachgov't list price
1	Diesel Engine NSN 2815-01-453-7404 · P/N 57K3537 ENGINE,WITH CONTAIN 1998 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	We can source it $24,349.00 per eachgov't list price
1	Engine with Contain NSN 2815-01-472-6312 · P/N 57K3547 ENGINE,WITH CONTAIN 1999 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	We can source it $24,349.00 per eachgov't list price
1	With Contain Engine NSN 2815-01-439-6664 · P/N 57K3556 ENGINE,WITH CONTAIN 2000 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	9 in stock $24,349.00 per eachgov't list price
1	With Contain Engine NSN 2815-01-439-6664 · P/N 57K3567 ENGINE,WITH CONTAIN 2001 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	9 in stock $24,349.00 per eachgov't list price
1	Engine with Contain NSN 2815-01-410-9710 · P/N 57K3223 ENGINE WITH CONTAIN 1995 AND 1996 6.5 LITER Fits: All A2 models, plus M1123	1	We can source it $45,436.00 per eachgov't list price
1	With Contain Engine NSN 2815-01-439-6665 · P/N 57K3524 ENGINE,WITH CONTAIN 1997 6.5 LITER Fits: All A2 models, plus M1123	1	14 in stock $45,436.00 per eachgov't list price
1	Diesel Engine NSN 2815-01-453-7403 · P/N 57K3536 ENGINE,WITH CONTAIN 1998 6.5 LITER Fits: All A2 models, plus M1123	1	4 in stock $45,436.00 per eachgov't list price
1	Diesel Engine NSN 2815-01-461-7078 · P/N 57K3543 ENGINE,WITH CONTAIN 1999 6.5 LITER Fits: All A2 models, plus M1123	1	We can source it $45,436.00 per eachgov't list price
1	Diesel Engine NSN 2815-01-461-7078 · P/N 57K3555 ENGINE,WITH CONTAIN 2000 6.5 LITER Fits: All A2 models, plus M1123	1	We can source it $45,436.00 per eachgov't list price
1	Diesel Engine NSN 2815-01-461-7078 · P/N 57K3566 ENGINE,WITH CONTAIN 2001 6.5 LITER Fits: All A2 models, plus M1123	1	We can source it $45,436.00 per eachgov't list price
2	Diesel Engine P/N 12338770 ENGINE,DIESEL 6.2 LITER,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	Ask us
2	Diesel Engine P/N 12338770-4 ENGINE,DIESEL 6.2 LITER,USBL EFF 100,000 AND ABOVE Fits: All A0 and A1 models, plus M1121	1	Ask us
2	Diesel Engine P/N 12460163-1 ENGINE,DIESEL 1996 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	Ask us
2	Diesel Engine P/N 12460163-3 ENGINE,DIESEL 1997 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	Ask us
2	Diesel Engine P/N 12460163-5 ENGINE,DIESEL 1998 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	Ask us
2	Diesel Engine P/N 12460163-7 ENGINE,DIESEL 1999 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	Ask us
2	Diesel Engine P/N 12460163-9 ENGINE,DIESEL 2000 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	Ask us
2	Diesel Engine P/N 12460163-11 ENGINE,DIESEL 2001 6.5 LITER DETUNED FOR USE AS 6.2 LITER REPLACEMENT Fits: All A0 and A1 models, plus M1121	1	Ask us
2	Diesel Engine P/N 12447108-1 ENGINE,DIESEL 1995 AND 1996 6.5 LITER Fits: All A2 models, plus M1123	1	Ask us
2	Diesel Engine P/N 12460490 ENGINE,DIESEL 1997 6.5 LITER Fits: All A2 models, plus M1123	1	Ask us
2	Diesel Engine P/N 12469048 ENGINE,DIESEL 1998 6.5 LITER Fits: All A2 models, plus M1123	1	Ask us
2	Diesel Engine P/N 12469087 ENGINE,DIESEL 1999 6.5 LITER Fits: All A2 models, plus M1123	1	Ask us
2	Diesel Engine P/N 12469160 ENGINE,DIESEL 2000 6.5 LITER Fits: All A2 models, plus M1123	1	Ask us
2	Diesel Engine P/N 12469444 ENGINE,DIESEL 2001 6.5 LITER Fits: All A2 models, plus M1123	1	Ask us
3	Flat Washer NSN 5310-00-809-4061 · P/N MS27183-15 WASHER,FLAT 7/16,USE UP TO 1998 Fits: All models	8	763 in stock
3	Flat Washer NSN 5310-01-186-1254 · P/N 11501032 WASHER,FLAT 10 MM,1999,00,01 Fits: All models	8	We can source it
4	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8,USE UP TO 1998 Fits: All models	8	1,162 in stock
4	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK 10 MM,1999,00,01 Fits: All models	8	1 in stock
5	Cap Hexagon Head Screw NSN 5305-00-781-3926 · P/N B1821BH038C275N SCREW,CAP,HEXAGON H 3/8-16 X 2.750 USE UP TO 1998 Fits: All models	4	We can source it
5	Cap Hexagon Head Screw NSN 5305-01-380-3395 · P/N B18231B10025NF SCREW,CAP,HEXAGON H M10 X 1.5-25MM 1999,00,01 Fits: All models	4	We can source it
6	Cap Hexagon Head Screw NSN 5305-00-543-2419 · P/N B1821BH038C113N SCREW,CAP,HEXAGON H 3/8-16 X 1.125 USE UP TO 1998 Fits: All models	4	1,168 in stock
6	Machine Bolt NSN 5306-01-185-7048 · P/N 11513606 BOLT,MACHINE M10 X 1.5-33MM 1999, 00,01 Fits: All models	4	9,070 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
