HMMWV Engine Mounting Brackets TM 9-2320-280-24P · Fig. 2

Every part in figure 2 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0100 Engine Assembly: 17 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

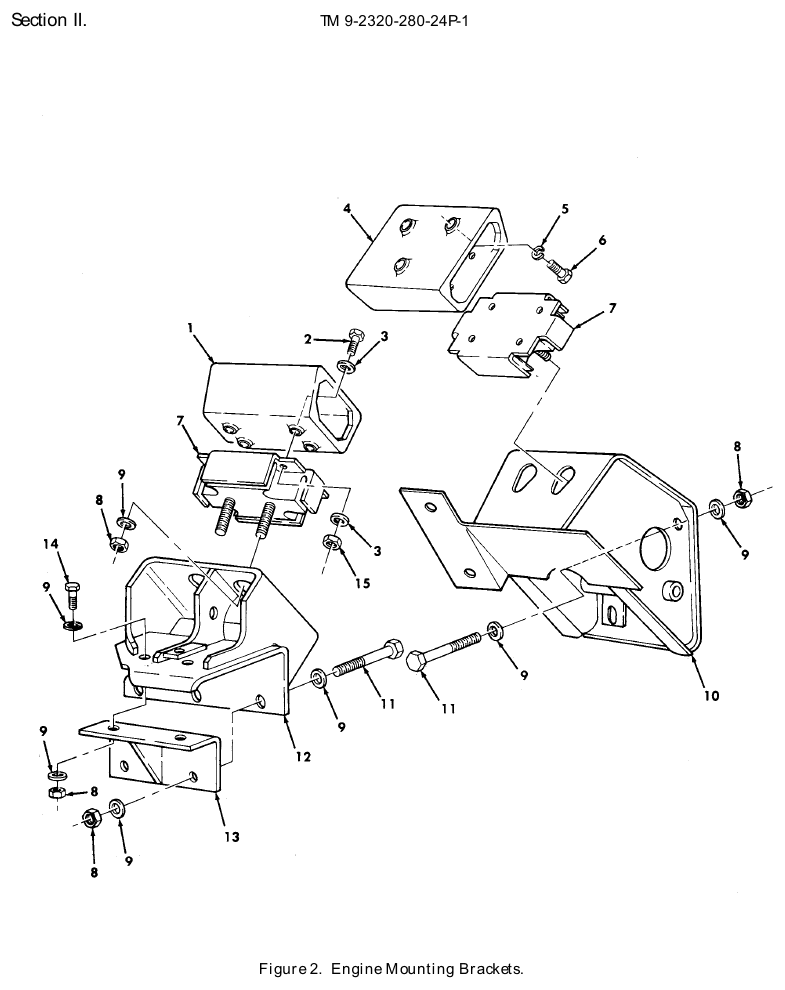

TM 9-2320-280-24P figure 2, Engine Mounting Brackets: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Mount Resilient Bracket NSN 2510-01-185-6115 · P/N 12339133 BRACKET,MOUNT,RESIL R.H Fits: All models	1	1 in stock $80–$135 eachtypical
2	Cap Hexagon Head Screw NSN 5305-00-543-2419 · P/N B1821BH038C113N SCREW,CAP,HEXAGON H 3/8-16 X 1.25 Fits: All models	8	1,168 in stock
3	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: All models	16	1,146 in stock $7.83our price Buy online ↗
4	Engine Mount Bracket NSN 2510-01-185-6112 · P/N 12339132 BRACKET,ENGINE MOUN L.H Fits: All models	1	4 in stock $107.87 per eachgov't list price
5	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8,USE UP TO 1998 Fits: All models	6	1,162 in stock
5	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK 10 MM,1999,00,01 Fits: All models	6	1 in stock
6	Cap Hexagon Head Screw NSN 5305-00-781-3926 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 USE UP TO 1998 Fits: All models	6	We can source it
6	Cap Hexagon Head Screw NSN 5305-01-380-3395 · P/N B18231B10025NF SCREW,CAP,HEXAGON H M10 X 1.5-25MM 1999,00,01 Fits: All models	6	We can source it
7	Resilient Weapon System Mount NSN 5342-01-189-9982 · P/N 5568310 MOUNT,RESILIENT Fits: All models	2	We can source it $55–$105 eachtypical
8	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All models	13	1,713 in stock
9	Flat Washer NSN 5310-01-121-1703 · P/N 2310-0143-001 WASHER,FLAT 1/2 Fits: All models	22	2,218 in stock
10	Engine Mount Bracket NSN 2510-01-185-6113 · P/N 12338205 BRACKET,ENGINE MOUN Fits: All models	1	5 in stock $322.86 per eachgov't list price
11	Cap Hexagon Head Screw NSN 5305-00-071-2081 · P/N B1821BH050C450N SCREW,CAP,HEXAGON H 1/2-13 X 4.50 Fits: All models	7	43 in stock
12	Engine Mount Bracket NSN 2510-01-185-6114 · P/N 12338183 BRACKET,ENGINE MOUN R.H Fits: All models	1	We can source it $90–$145 eachtypical
13	Angle Bracket NSN 5340-01-186-7173 · P/N 12338163 BRACKET,ANGLE R.H Fits: All models	1	We can source it $25–$55 eachtypical
14	Cap Hexagon Head Screw NSN 5305-00-915-8087 · P/N B1821BH050C125D SCREW,CAP,HEXAGON H 1/2-13 X 1.25 Fits: All models	2	125 in stock
15	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: All models	8	219 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
