HMMWV Air Cleaner, Air Horn, and Related Parts TM 9-2320-280-24P · Fig. 12

Every part in figure 12 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0304 Air Cleaner: 43 lines, 32 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

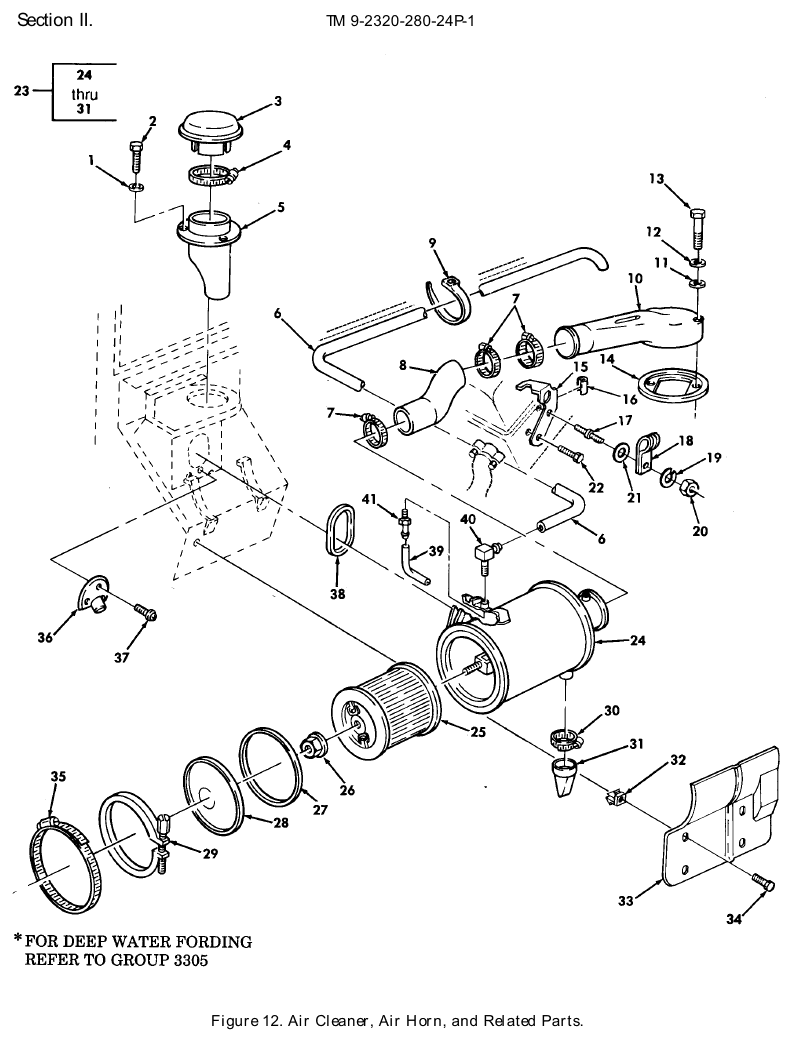

TM 9-2320-280-24P figure 12, Air Cleaner, Air Horn, and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT Fits: All models	3	2,325 in stock
2	Tapping Screw NSN 5305-01-162-8512 · P/N 9421073 SCREW,TAPPING Fits: All models	3	We can source it
3	Air Cleaner Intake Pipe Cap NSN 2940-01-189-1809 · P/N F-6D9K090B CAP,AIR CLEANER INT Fits: All models	1	14 in stock $116.37 per eachgov't list price
4	Hose Clamp NSN 4730-00-359-9487 · P/N C72P CLAMP,HOSE Fits: All models	1	We can source it
5	Shield Assembly NSN 2940-01-188-3224 · P/N 12338373 SHIELD ASSEMBLY Fits: All models	1	23 in stock $117.87 per assemblygov't list price
6	Metallic Make From Tubing Tube P/N CPR104420-1-26 TUBE,METALLIC MAKE FROM TUBING,P/N CPR104420-1,26 INCHES LONG Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	Ask us
6	Metallic Make From Tubing Tube P/N CPR104420-1-28 TUBE,METALLIC MAKE FROM TUBING,P/N CPR104420-1,28 INCHES LONG Fits: All A2 models, plus M966, M966A1, M996, M996A1, M997, M997A1 and 15 more	1	Ask us
7	Hose Clamp NSN 4730-01-189-0871 · P/N H68SS CLAMP,HOSE Fits: All models	3	122 in stock
8	Preformed Hose NSN 4720-01-185-8152 · P/N 12338380 HOSE,PREFORMED Fits: All A0 models except M997; all A1 models except M997A1; all A2 models except M997A2, plus M1121, M1123	1	3 in stock $55–$95 eachtypical
8	Preformed Hose NSN 4720-01-203-7789 · P/N 5584588 HOSE,PREFORMED Fits: M997, M997A1, M997A2	1	5 in stock $50–$90 eachtypical
9	Tie Down Electrical Compon Strap NSN 5975-00-074-2072 · P/N MS3367-1-9 STRAP,TIEDOWN,ELECT Fits: All models	1	300 in stock
10	Air Horn Intake Tube NSN 2590-01-278-1053 · P/N 5584559 TUBE,AIR HORN INTAK Fits: All models	1	1 in stock $668.16 per eachgov't list price
11	Flat Washer NSN 5310-01-185-7214 · P/N 12339052 WASHER,FLAT 5/16 Fits: All models	2	27 in stock
12	Flat Washer NSN 5310-01-132-8275 · P/N 9418924 WASHER,FLAT 5/16 Fits: All models	2	739 in stock
13	Machine Bolt NSN 5306-00-225-8511 · P/N MS90725-47 BOLT,MACHINE 5/16-18 X 3.75 Fits: All models	2	84 in stock
14	Gasket NSN 5330-01-246-1822 · P/N 12338382 GASKET Fits: All models	1	153 in stock
15	Corner Brace NSN 5340-01-189-9861 · P/N 5590657 BRACE,CORNER Fits: All models	1	4 in stock $35–$75 eachtypical
16	Cushioning Pad NSN 2590-01-471-0236 · P/N 12339902-13 PROTECTOR,PAINT Fits: All models	1	46 in stock
17	Shouldered Stud NSN 5307-01-150-1227 · P/N 14033946 STUD,SHOULDERED 10-1.5 X 20 MM Fits: All models	1	1,577 in stock $14.69our price Buy online ↗
18	Loop Clamp NSN 5340-00-151-9651 · P/N MS21333-129 CLAMP,LOOP Fits: All models	1	We can source it
19	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK M10 Fits: All models	1	1 in stock
20	Nut NSN 5310-01-143-0512 · P/N 29520052 NUT M10 Fits: All models	1	8 in stock
21	Flat Washer NSN 5310-00-080-6004 · P/N D21059-16 WASHER,FLAT #10 Fits: All models	1	1,146 in stock $7.83our price Buy online ↗
22	Machine Bolt NSN 5306-01-158-9917 · P/N DIN933M10X20 BOLT,MACHINE 10-1.5 X 20MM Fits: All models	1	We can source it
23	Intake Air Cleaner NSN 2940-01-188-5117 · P/N L-111D30 AIR CLEANER,INTAKE Fits: All models	1	20 in stock $985.00our price Buy online ↗
24	Body Assembly P/N L-111DR30-L BODY ASSEMBLY Fits: All models	1	Ask us
25	Intake Air Cleane Filter Element NSN 2940-01-188-3776 · P/N W-250D53 FILTER ELEMENT,INTA Fits: All models	1	3 in stock $50.00our price Buy online ↗
26	Plain Hexagon Nut NSN 5310-01-211-5037 · P/N 0-952A59 NUT,PLAIN,HEXAGON 5/16-18 Fits: All models	1	574 in stock $25–$55 eachtypical
27	Gasket NSN 5330-01-452-2474 · P/N 12342872 GASKET Fits: All models	1	391 in stock
28	Air Cleaner Cover NSN 2940-01-188-3387 · P/N L-563C170 COVER,AIR CLEANER Fits: All models	1	45 in stock $75–$125 eachtypical
29	Loop Clamp NSN 5340-01-190-0402 · P/N L-223C24 CLAMP,LOOP Fits: All models	1	3 in stock
30	Hose Clamp NSN 4730-01-257-4905 · P/N 5416K25 CLAMP,HOSE Fits: All models	1	We can source it
31	Dust and Moisture Seal Boot NSN 5340-01-024-1273 · P/N L-638C2GS BOOT,DUST AND MOIST Fits: All models	1	4 in stock $30–$70 eachtypical
32	Expansion Shield NSN 5340-01-208-8688 · P/N 5585094 SHIELD,EXPANSION Fits: All models	4	We can source it
33	Air Cleaner Shield NSN 2540-01-196-4726 · P/N 12338863 SHIELD,AIR CLEANER Fits: All models	1	9 in stock $60–$100 eachtypical
34	Tapping Screw NSN 5305-00-058-1082 · P/N MS51861-34 SCREW,TAPPING #10-16 X 1/2 Fits: All models	4	48 in stock
35	Hose Clamp NSN 4730-01-210-5785 · P/N HTM-1200 CLAMP,HOSE Fits: All models	3	18 in stock
36	Tube Drainage Bracket NSN 5342-01-187-7029 · P/N 12338842 BRACKET,TUBE,DRAINA Fits: All models	1	10 in stock
37	Cap Socket Head Screw NSN 5305-00-226-7237 · P/N MS16995-78 SCREW,CAP,SOCKET HE #8-18 X 3/8 Fits: All models	3	We can source it
38	Gasket NSN 5330-01-188-0911 · P/N 12338379 GASKET Fits: All models	1	5 in stock $25.00our price Buy online ↗
39	Nonmetallic Tubing NSN 4720-01-214-5757 · P/N 12340799 TUBING,NONMETALLIC Fits: All models	1	We can source it
40	Pipe to Hose Elbow NSN 4730-01-070-7680 · P/N 1069X4 ELBOW,PIPE TO HOSE Fits: All models	1	60 in stock
41	Straight Pipe to Hose Adapter NSN 4730-01-185-5348 · P/N 1068X4 ADAPTER,STRAIGHT,PI Fits: All models	1	25 in stock

Buy the 5 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
