Catalog › Parts manuals › TM 9-2320-280-24P › Fuel Injection Pump and Fuel Filter Lines › Fig. 11

HMMWV Fuel Injection Supply and Return Lines TM 9-2320-280-24P · Fig. 11

Every part in figure 11 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0302 Fuel Injection Pump and Fuel Filter Lines: 55 lines, 34 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

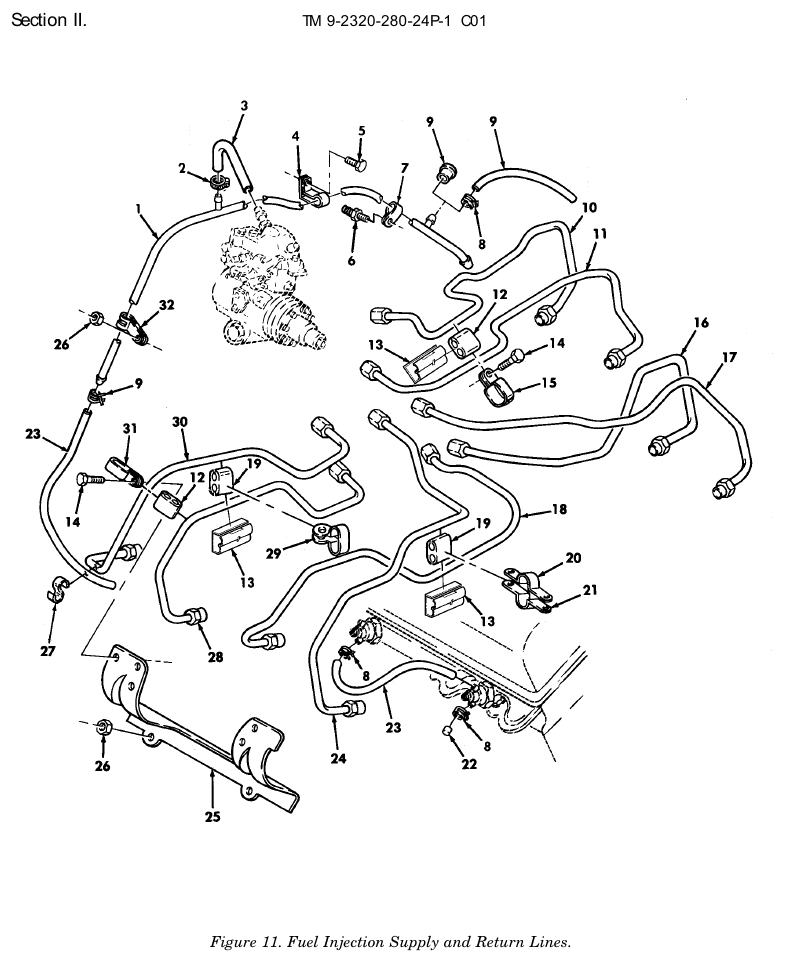

TM 9-2320-280-24P figure 11, Fuel Injection Supply and Return Lines: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Bent Metallic Tube NSN 4710-01-446-9570 · P/N 12554835 TUBE,BENT,METALLIC 6.5 LITER USE WITH PUMP ASSEMBLY P/N DB2831-5149 AND DB2831-5209 Fits: All models	1	904 in stock $19.00our price Buy online ↗
1	Bent Metallic Tube NSN 4710-01-148-2659 · P/N 14061569 TUBE,BENT,METALLIC 6.2 LITER Fits: All A0 and A1 models, plus M1121	1	We can source it
2	Hose Clamp NSN 4730-01-163-3544 · P/N 15620999 CLAMP,HOSE Fits: All models	2	We can source it
3	Nonmetallic Make From Hose Hose P/N 9439363 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 4219-3681,7 INCHES LONG Fits: All models	1	Ask us
4	Loop Clamp NSN 5340-01-151-9956 · P/N 14033893 CLAMP,LOOP Fits: All models	1	32 in stock $50–$85 eachtypical
5	Machine Bolt NSN 5306-01-148-3667 · P/N 11504512 BOLT,MACHINE 10-1.5X16 MM Fits: All models	2	We can source it
6	Shouldered Stud NSN 5307-01-150-9538 · P/N 22515630 STUD,SHOULDERED Fits: All models	1	8 in stock $25–$40 eachtypical
7	Loop Clamp NSN 5340-00-881-5303 · P/N MS21333-45 CLAMP,LOOP Fits: All models	1	We can source it
8	Hose Clamp NSN 4730-00-150-6118 · P/N 11663000 CLAMP,HOSE Fits: All models	18	254 in stock
9	Tubing Nonmetallic Make From Hose P/N 14066305-AR TUBING NONMETALLIC MAKE FROM HOSE, P/N 9439046,CUT LENGTH TO FIT Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1, plus M997A2, M1097A2, M1121, M1123	1	Ask us
9	Protective Dust and Moistur Plug NSN 5340-01-476-5585 · P/N 12338577 PLUG,PROTECTIVE,DUS Fits: M996, M996A1, M997, M997A1	1	We can source it
10	Metal Tube Assembly NSN 4710-01-148-9580 · P/N 14033912 TUBE ASSEMBLY,METAL 6.2 LITER,#2 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4523 Fits: All A0 models except M1097, plus M1121	1	4 in stock $333.41 per eachgov't list price
10	Metal Tube Assembly NSN 4710-01-314-4483 · P/N 10149552 TUBE ASSEMBLY,METAL 6.2 LITER,#2 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4879 Fits: All A0 and A1 models, plus M1121	1	We can source it $50–$95 eachtypical
10	Metal Tube Assembly NSN 4710-01-412-8611 · P/N 14098632 TUBE ASSEMBLY,METAL 6.5 LITER,#2 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2831-5149 AND DB2831-5209 Fits: All models	1	2 in stock $30–$70 eachtypical
11	Metal Tube Assembly NSN 4710-01-412-1669 · P/N 14098634 TUBE ASSEMBLY,METAL 6.5 LITER,#4 CYLINDER, USE WITH PUMP ASSEMBLY P/N DB2831-5149 AND DB2831-5209 Fits: All models	1	2 in stock $55–$105 eachtypical
11	Metal Tube Assembly NSN 4710-01-149-5076 · P/N 14033914 TUBE ASSEMBLY,METAL 6.2 LITER,#4 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4523 Fits: All A0 models except M1097, plus M1121	1	2 in stock $70–$120 eachtypical
11	Metal Tube Assembly NSN 4710-01-316-0222 · P/N 10149554 TUBE ASSEMBLY,METAL 6.2 LITER,#4 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4879 Fits: All A0 and A1 models, plus M1121	1	9 in stock $35–$65 eachtypical
12	Nonmetallic Grommet NSN 5325-01-160-4618 · P/N 23503124 GROMMET,NONMETALLIC 6.2 AND 6.5 LITER,UP TO 1995,INNER AND OUTER Fits: All models	8	9 in stock
12	Nonmetallic Grommet NSN 5325-01-160-4618 · P/N 23503124 GROMMET,NONMETALLIC 6.5 LITER,1996 AND ABOVE,OUTER Fits: All models	4	9 in stock
13	Grommet P/N 12554808 GROMMET,NONMETALLIC 6.5 LITER,1996 AND ABOVE,INNER AND CENTER Fits: All models	8	Ask us
14	Tapping Screw NSN 5305-01-150-1521 · P/N 11503617 SCREW,TAPPING 6.2 AND 6.5 LITER UP TO 1995 Fits: All models	8	100 in stock
14	Tapping Screw NSN 5305-01-150-1521 · P/N 11503617 SCREW,TAPPING 6.5 LITER,1996 AND ABOVE Fits: All models	4	100 in stock
15	Loop Clamp NSN 5340-01-150-6026 · P/N 14033955 CLAMP,LOOP 6.2 AND 6.5 LITER,UP TO 1995 Fits: All models	4	22 in stock $25–$40 eachtypical
16	Metal Tube Assembly NSN 4710-01-150-0971 · P/N 14033916 TUBE ASSEMBLY,METAL 6.2 LITER,#6 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4523 Fits: All A0 models except M1097, plus M1121	1	3 in stock
16	Metal Tube Assembly NSN 4710-01-314-4485 · P/N 10149556 TUBE ASSEMBLY,METAL 6.2 LITER,#6 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4879 Fits: All A0 and A1 models, plus M1121	1	7 in stock $55–$95 per assemblytypical
16	Metal Tube Assembly NSN 4710-01-411-8489 · P/N 14098636 TUBE ASSEMBLY,METAL 6.5 LITER,#6 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2831-5149 AND DB2831-5209 Fits: All models	1	1 in stock $30–$70 eachtypical
17	Metal Tube Assembly NSN 4710-01-411-8492 · P/N 14098638 TUBE ASSEMBLY,METAL 6.5 LITER,#8 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2831-5149 AND DB2831-5209 Fits: All models	1	1 in stock $30–$60 eachtypical
17	Metal Tube Assembly NSN 4710-01-148-9582 · P/N 14033918 TUBE ASSEMBLY,METAL 6.2 LITER,#8 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4523 Fits: All A0 models except M1097, plus M1121	1	2 in stock $226.17 per eachgov't list price
17	Metal Tube Assembly NSN 4710-01-314-4484 · P/N 10149558 TUBE ASSEMBLY,METAL 6.2 LITER,#8 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4879 Fits: All A0 and A1 models, plus M1121	1	We can source it $40–$85 eachtypical
18	Metal Tube Assembly NSN 4710-01-411-8488 · P/N 14098635 TUBE ASSEMBLY,METAL 6.5 LITER,#5 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2831-5149 AND DB2831-5209 Fits: All models	1	2 in stock $50–$100 eachtypical
18	Metal Tube Assembly NSN 4710-01-153-1636 · P/N 14033915 TUBE ASSEMBLY,METAL 6.2 LITER,#5 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4523 Fits: All A0 models except M1097, plus M1121	1	1 in stock
18	Metal Tube Assembly NSN 4710-01-314-4487 · P/N 10149555 TUBE ASSEMBLY,METAL 6.2 LITER,#5 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4879 Fits: All A0 and A1 models, plus M1121	1	We can source it $30–$70 eachtypical
19	Grommet P/N 23503111 GROMMET,NONMETALLIC 6.2 AND 6.5 LITER,UP TO 1995,CENTER Fits: All models	4	Ask us
20	Retaining Strap NSN 5340-01-150-4106 · P/N 14033921 STRAP,RETAINING Fits: All models	3	2 in stock
21	Retaining Strap NSN 5340-01-150-6275 · P/N 14033922 STRAP,RETAINING Fits: All models	3	2 in stock
22	Cap NSN 5342-01-166-1534 · P/N 14066301 CAP Fits: All models	2	1 in stock
23	Nonmetallic Make From Hose Tubing P/N 10183996 TUBING,NONMETALLIC MAKE FROM HOSE, P/N 9439046,CUT TO LENGTH Fits: All models	7	Ask us
24	Metal Tube Assembly NSN 4710-01-412-1667 · P/N 14098637 TUBE ASSEMBLY,METAL 6.5 LITER #7 USE WITH PUMP ASSEMBLY P/N DB2831-5149 AND DB2831-5209 Fits: All models	1	1 in stock $30–$70 eachtypical
24	Metal Tube Assembly NSN 4710-01-149-5077 · P/N 14033917 TUBE ASSEMBLY,METAL 6.2 LITER,#7 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4523 Fits: All A0 models except M1097, plus M1121	1	2 in stock
24	Metal Tube Assembly NSN 4710-01-314-4486 · P/N 10149557 TUBE ASSEMBLY,METAL 6.2 LITER,#7 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4879 Fits: All A0 and A1 models, plus M1121	1	2 in stock $85–$140 per assemblytypical
25	Double Angle Bracket NSN 5340-01-159-6626 · P/N 14033824 BRACKET,DOUBLE ANGL L.H. AND R.H., 6.2 LITER,USE PRIOR TO 1990 ENGINE, PUMP ASSEMBLY P/N DB2829-4523 Fits: All A0 models except M1097, plus M1121	2	We can source it quote only
25	Double Angle Bracket NSN 5340-01-159-6626 · P/N 14033824 BRACKET,DOUBLE ANGL R.H.,6.2 LITER, USE WITH 1990 ENGINE AND ABOVE,PUMP ASSEMBLY P/N DB2829-4879 OR 6.5 LITER P/N DB2831-5149 AND DB2831- 5209 Fits: All models	1	We can source it quote only
25	Mounting Bracket NSN 5340-01-440-9678 · P/N 05742118 BRACKET,MOUNTING L.H.,6.2 LITER, USE WITH 1990 ENGINE AND ABOVE,PUMP ASSEMBLY P/N DB2829-4879 OR 6.5 LITER,P/N DB2831-5149 AND DB2831- 5209 Fits: All models	1	8 in stock $25–$40 eachtypical
26	Plain Hexagon Nut NSN 5310-01-165-3331 · P/N 11500749 NUT,PLAIN,HEXAGON Fits: All models	5	10 in stock
27	Spring Tension Clip NSN 5340-01-187-0892 · P/N 12339890 CLAMP,SPRING TENSION Fits: All A1 models; all A0 models except M997; all A2 models except M997A2, plus M1121, M1123	1	We can source it
28	Metal Tube Assembly NSN 4710-01-148-9581 · P/N 14033913 TUBE ASSEMBLY,METAL 6.2 LITER,#3 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4523 Fits: All A0 models except M1097, plus M1121	1	249 in stock $40.99our price Buy online ↗
28	Metal Tube Assembly NSN 4710-01-314-4488 · P/N 10149553 TUBE ASSEMBLY,METAL 6.2 LITER,#3 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4879 Fits: All A0 and A1 models, plus M1121	1	We can source it $55–$105 eachtypical
28	Metal Tube Assembly NSN 4710-01-412-8615 · P/N 14098633 TUBE ASSEMBLY,METAL 6.5 LITER,#3 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2831-5149 AND DB2831-5209 Fits: All models	1	We can source it $30–$65 eachtypical
29	Loop Clamp NSN 5340-01-150-7774 · P/N 14033953 CLAMP,LOOP L.H Fits: All models	1	30 in stock
30	Metal Tube Assembly NSN 4710-01-493-1712 · P/N 10154669 TUBE ASSEMBLY,METAL 6.5 LITER,#1 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2831-5149 AND DB2831-5209 Fits: All models	1	We can source it $30–$60 eachtypical
30	Metal Tube Assembly NSN 4710-01-149-5075 · P/N 14033911 TUBE ASSEMBLY,METAL 6.2 LITER,#1 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4523 Fits: All A0 models except M1097, plus M1121	1	1 in stock $135.83 per eachgov't list price
30	Metal Tube Assembly NSN 4710-01-314-4489 · P/N 10149551 TUBE ASSEMBLY,METAL 6.2 LITER,#1 CYLINDER,USE WITH PUMP ASSEMBLY P/N DB2829-4879 Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$55 eachtypical
31	Loop Clamp NSN 5340-01-148-7529 · P/N 560613 CLAMP,LOOP 6.2 AND 6.5 LITER,UP TO 1995,OUTER Fits: All models	4	5 in stock
31	Loop Clamp NSN 5340-01-493-2538 · P/N 10225180 CLAMP,LOOP 6.5 LITER,1996 AND ABOVE,OUTER Fits: All models	4	We can source it
32	Loop Clamp NSN 5340-01-493-2555 · P/N 10191497 CLAMP,LOOP Fits: All models	1	55 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
