HMMWV Transmission Vent Lines and Attaching Hardware TM 9-2320-280-24P · Fig. 123

Every part in figure 123 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0721 Coolers, Pumps, Motors: 6 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

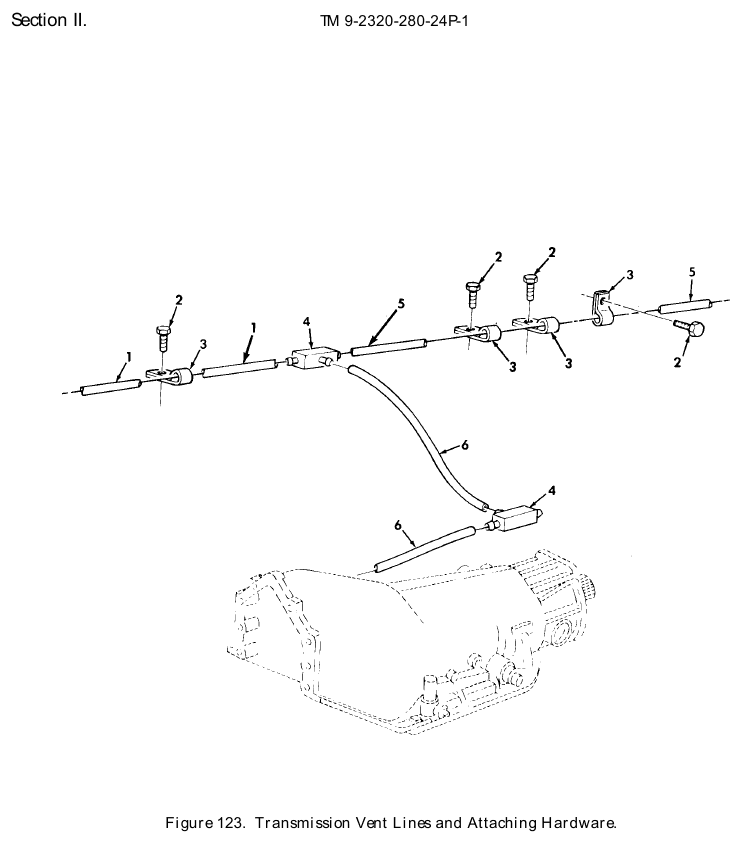

TM 9-2320-280-24P figure 123, Transmission Vent Lines and Attaching Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tube Make From Tube P/N 5591253 TUBE MAKE FROM TUBE, P/N CPR104420- 1, 41 INCHES LONG Fits: All models	1	Ask us
2	Tapping Screw NSN 5305-01-236-4349 · P/N 172482 SCREW,TAPPING 3/8-16 X .62 Fits: All models	4	We can source it
3	Loop Clamp NSN 5340-00-050-9077 · P/N MS21333-119 CLAMP,LOOP Fits: All models	4	We can source it
4	Hose Tee NSN 4730-01-003-5105 · P/N 1064X4 TEE,HOSE Fits: All models	2	5 in stock
5	Tube Make From Tube P/N 5591168 TUBE MAKE FROM TUBE, P/N CPR104420- 1, 64 INCHES LONG Fits: All models	1	Ask us
6	Tube Make From Tube P/N 5582642 TUBE MAKE FROM TUBE, P/N CPR104420- 1, 11 INCHES LONG Fits: All models	2	Ask us
