HMMWV Transmission Oil Pump TM 9-2320-280-24P · Fig. 122

Every part in figure 122 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0721 Coolers, Pumps, Motors: 45 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

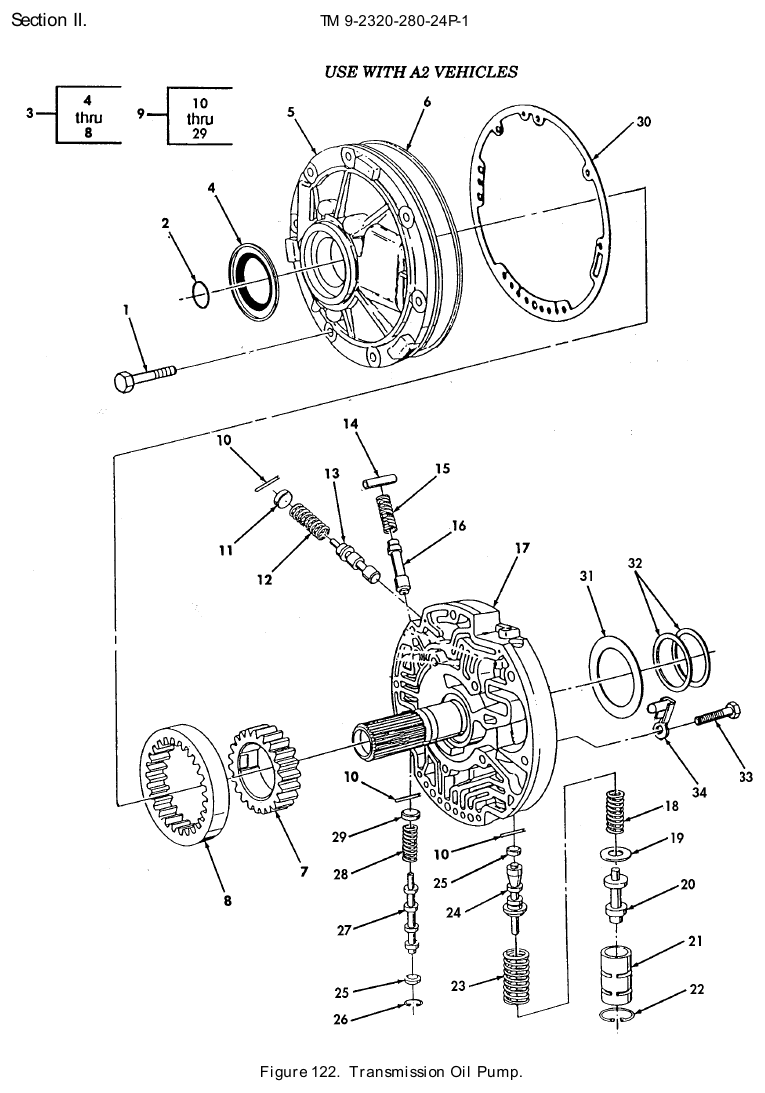

TM 9-2320-280-24P figure 122, Transmission Oil Pump: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-01-411-1596 · P/N 8661792 BOLT,MACHINE PART OF KIT P/N 24205251 PART OF KIT P/N 24202111 PART OF KIT P/N 24204441 PART OF KIT P/N 24210955 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	7	We can source it
2	Plain Seal NSN 5330-01-414-6607 · P/N 8661760 SEAL,PLAIN Fits: All A2 models, plus M1123	1	We can source it
3	Rotary Pump NSN 4320-01-398-2069 · P/N 24208852 PUMP,ROTARY 1995,96 Fits: All A2 models, plus M1123	1	We can source it
3	Rotary Pump NSN 4320-01-485-7480 · P/N 24211287 PARTS KIT,ROTARY PU 1997,98,99,00, 01 Fits: All A2 models, plus M1123	1	We can source it $264.50 per eachgov't list price
4	Plain Seal NSN 5330-01-379-1139 · P/N 8661602 SEAL,PLAIN PART OF KIT P/N 24202111, PART OF KIT P/N 24204441 Fits: All A2 models, plus M1123	1	4 in stock
5	Oil Pump Body P/N 8682194 BODY,OIL PUMP 1995,96 Fits: All A2 models, plus M1123	1	Ask us
5	Parts Kit P/N 24211287 PARTS KIT,ROTARY PU 1997,98,99 00,01 Fits: All A2 models, plus M1123	1	Ask us
6	Plain Encased Seal NSN 5330-01-324-0906 · P/N 8654716 SEAL,PLAIN ENCASED 1995,96 Fits: All A2 models, plus M1123	1	We can source it
6	Seal Retainer NSN 5330-01-478-6554 · P/N 24210605 RETAINER,SEAL 1997,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it
7	Gear P/N 8661682 GEAR 1995,96 Fits: All A2 models, plus M1123	1	Ask us
7	Gear P/N 24205786 GEAR 1997,98,99,00,01 Fits: All A2 models, plus M1123	1	Ask us
8	Gear P/N 8661683 GEAR Fits: All A2 models, plus M1123	1	Ask us
9	Cover Assembly P/N 24205398 COVER ASSEMBLY,TRAN 1995,96 Fits: All A2 models, plus M1123	1	Ask us
9	Transmission Cover Assembly NSN 2520-01-465-8809 · P/N 24204303 COVER ASSEMBLY,TRAN 1997,98,99,00, 01 Fits: All A2 models, plus M1123	1	265 in stock $707.76 per eachgov't list price
10	Straight Headless Pin NSN 5315-01-461-8374 · P/N 8661838 PIN,STRAIGHT,HEADLE Fits: All A2 models, plus M1123	3	We can source it
11	Expansion Plug NSN 5340-01-477-7052 · P/N 8682858 PLUG,EXPANSION Fits: All A2 models, plus M1123	1	We can source it
12	Helical Compression Spring NSN 5360-01-460-9068 · P/N 8678258 SPRING,HELICAL,COMP Fits: All A2 models, plus M1123	1	We can source it
13	Linear Directional Control Valve NSN 4820-01-460-9991 · P/N 8678257 VALVE,LINEAR,DIRECT Fits: All A2 models, plus M1123	1	We can source it
14	Straight Headless Pin NSN 5315-01-461-5649 · P/N 8661768 PIN,STRAIGHT,HEADLE Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
15	Helical Compression Spring NSN 5360-01-408-7977 · P/N 8661767 SPRING,HELICAL,COMP Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
16	Directional Control Linear Slide NSN 4810-01-460-9975 · P/N 8661766 SLIDE,DIRECTIONAL C Fits: All A2 models, plus M1123	1	We can source it
17	Pump Cover P/N 24202681 COVER,PUMP 1995,96 Fits: All A2 models, plus M1123	1	Ask us
17	Pump Cover P/N 24204304 COVER,PUMP 1997,98,99,00,01 Fits: All A2 models, plus M1123	1	Ask us
18	Helical Compression Spring NSN 5360-01-460-9073 · P/N 8680551 SPRING,HELICAL,COMP Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
19	Washer Thrust Bearing NSN 3120-01-461-6680 · P/N 8680548 BEARING,WASHER,THRU Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
20	Linear Directional Control Valve NSN 4820-01-461-0011 · P/N 8680549 VALVE,LINEAR,DIRECT Fits: All A2 models, plus M1123	1	We can source it
21	Helical Compression Spring Seat NSN 5340-01-460-8361 · P/N 8682856 SEAT,HELICAL COMPRE Fits: All A2 models, plus M1123	1	We can source it $25–$60 eachtypical
22	Retaining Ring NSN 5325-01-477-6608 · P/N 8679465 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it $25–$45 eachtypical
23	Helical Compression Spring NSN 5360-01-460-9070 · P/N 8661798 SPRING,HELICAL,COMP Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
24	Directional Control Linear Slide NSN 4820-01-460-8288 · P/N 8680547 SLIDE,DIRECTIONAL C Fits: All A2 models, plus M1123	1	We can source it $25–$50 eachtypical
25	Transmission O Plug NSN 2520-01-461-5133 · P/N 8682855 PLUG,TRANSMISSION O Fits: All A2 models, plus M1123	2	We can source it
26	Gear Ring Reduction NSN 2010-00-937-5599 · P/N 274267 RING REDUCTION,GEAR Fits: All A2 models, plus M1123	1	We can source it
27	Linear Directional Control Valve NSN 4820-01-460-9988 · P/N 8681070 VALVE,LINEAR,DIRECT Fits: All A2 models, plus M1123	1	We can source it
28	Helical Compression Spring NSN 5360-01-460-9072 · P/N 8681069 SPRING,HELICAL,COMP Fits: All A2 models, plus M1123	1	We can source it
29	Transmission V Plug NSN 2520-01-461-5648 · P/N 8682857 PLUG,TRANSMISSION V Fits: All A2 models, plus M1123	1	We can source it
30	Gasket NSN 5330-01-409-1665 · P/N 8677782 GASKET PART OF KIT P/N 24205251,PART OF KIT P/N 24202111 Fits: All A2 models, plus M1123	1	We can source it
31	Washer Thrust Bearing NSN 3120-01-461-6679 · P/N 8677571 BEARING,WASHER,THRU .059 Fits: All A2 models, plus M1123	1	We can source it $30–$70 eachtypical
31	Washer Thrust Bearing NSN 3120-01-471-7844 · P/N 8677572 BEARING,WASHER,THRU .075 Fits: All A2 models, plus M1123	1	We can source it $45–$90 eachtypical
31	Sleeve Bushing NSN 3120-01-411-5783 · P/N 8677573 BEARING,WASHER,THRU .091 Fits: All A2 models, plus M1123	1	We can source it $55–$95 eachtypical
31	Washer Thrust Bearing NSN 3120-01-411-5787 · P/N 8677574 BEARING,WASHER,THRU .107 Fits: All A2 models, plus M1123	1	We can source it $40–$85 eachtypical
31	Washer Thrust Bearing NSN 3120-01-461-6677 · P/N 8677575 BEARING,WASHER,THRU .123 Fits: All A2 models, plus M1123	1	340 in stock $43.99our price Buy online ↗
32	O-Ring NSN 5331-01-462-7294 · P/N 8661789 O-RING 1995,96,97 PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	2	We can source it $25–$40 eachtypical
32	O-Ring NSN 5331-01-477-6762 · P/N 24205833 O-RING 1998 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	2	We can source it $25–$40 eachtypical
33	Machine Bolt NSN 5306-01-150-1190 · P/N 11500921 BOLT,MACHINE Fits: All A2 models, plus M1123	5	We can source it
34	Vent Shield NSN 4320-01-456-6258 · P/N 24200357 SHIELD,VENT Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
