HMMWV Transmission/Transfer Cooling Lines TM 9-2320-280-24P · Fig. 125

Every part in figure 125 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0721 Coolers, Pumps, Motors: 24 lines, 14 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

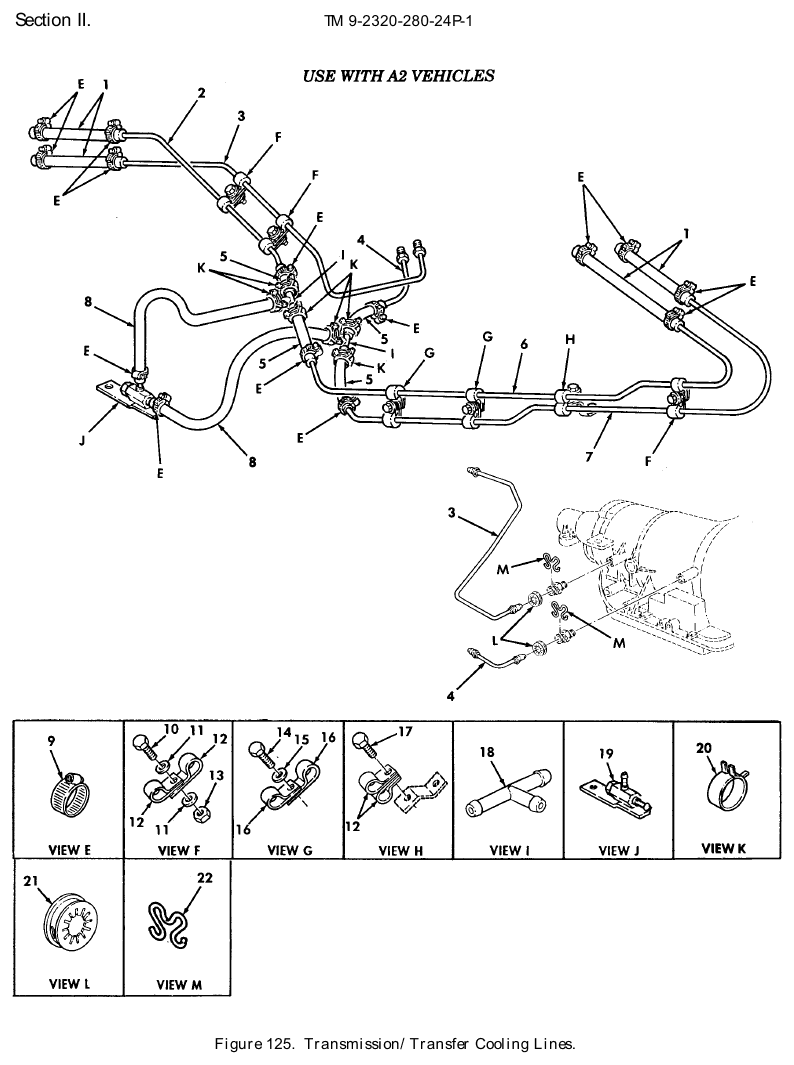

TM 9-2320-280-24P figure 125, Transmission/Transfer Cooling Lines: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Make From Hose Hose P/N 12338330-1 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 6490610019, 3 INCHES LONG Fits: All A2 models, plus M1123	4	Ask us
2	Bent Metallic Tube NSN 4710-01-189-0705 · P/N 12338333 TUBE,BENT,METALLIC Fits: All A2 models, plus M1123	1	51 in stock $25–$45 eachtypical
3	Metal Tube Assembly NSN 4710-01-409-2508 · P/N 6002779 TUBE ASSEMBLY,METAL 1995,96 Fits: All A2 models, plus M1123	1	We can source it $70–$120 eachtypical
3	Bent Metallic Tube NSN 4710-01-439-8167 · P/N 12460493 TUBE,BENT,METALLIC 1997,98,99,00,01 PART OF KIT P/N 57K3523 PART OF KIT P/N 57K3539 PART OF KIT P/N 57K3549 PART OF KIT P/N 57K3558 PART OF KIT P/N 57K3569 Fits: All A2 models, plus M1123	1	1,433 in stock $35–$70 eachtypical
4	Metal Tube Assembly NSN 4710-01-409-2504 · P/N 6002771 TUBE ASSEMBLY,METAL 1995,96 Fits: All A2 models, plus M1123	1	We can source it $25–$50 eachtypical
4	Bent Metallic Tube NSN 4710-01-439-8165 · P/N 12460492 TUBE,BENT,METALLIC 1997,98,99,00,01 PART OF KIT P/N 57K3523 PART OF KIT P/N 57K3539 PART OF KIT P/N 57K3549 PART OF KIT P/N 57K3558 PART OF KIT P/N 57K3569 Fits: All A2 models, plus M1123	1	1 in stock $23.03our price Buy online ↗
5	Hose Make From Hose P/N 12447073-4 HOSE MAKE FROM HOSE,P/N 6490610019, 4 INCHES LONG Fits: All A2 models, plus M1123	4	Ask us
6	Bent Metallic Tube NSN 4720-01-188-3515 · P/N 5582819 TUBE,BENT,METALLIC Fits: All A2 models, plus M1123	1	79 in stock $50–$100 eachtypical
7	Bent Metallic Tube NSN 4710-01-188-3516 · P/N 5582817 TUBE,BENT,METALLIC Fits: All A2 models, plus M1123	1	987 in stock $55–$105 eachtypical
8	Nonmetallic Make From Hose Hose P/N 12338330-2 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 6490610019,7.25 INCHES LONG Fits: All A2 models, plus M1123	2	Ask us
9	Hose Clamp NSN 4730-01-413-8244 · P/N 11608950-1 CLAMP,HOSE Fits: All A2 models, plus M1123	20	2 in stock
10	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	3	471 in stock
11	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT Fits: All A2 models, plus M1123	6	351 in stock
12	Loop Clamp NSN 5340-00-809-1492 · P/N CMDX2-3PT573036 CLAMP,LOOP Fits: All A2 models, plus M1123	8	109 in stock
13	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE Fits: All A2 models, plus M1123	4	626 in stock
14	Tapping Screw NSN 5305-01-236-4349 · P/N 172482 SCREW,TAPPING Fits: All A2 models, plus M1123	2	We can source it
15	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK Fits: All A2 models, plus M1123	2	1,162 in stock
16	Loop Clamp NSN 5340-00-954-6014 · P/N MS21333-121 CLAMP,LOOP Fits: All A2 models, plus M1123	4	215 in stock
17	Tapping Screw NSN 5305-01-084-6067 · P/N MS51871-1 SCREW,TAPPING Fits: All A2 models, plus M1123	1	We can source it
18	Hose Tee NSN 4730-01-409-1204 · P/N 12447077 TEE,HOSE Fits: All A2 models, plus M1123	1	1 in stock $25–$50 eachtypical
19	Regulating Fluid Pressure Valve NSN 4820-01-456-6257 · P/N 12447076 VALVE,REGULATING,FL Fits: All A2 models, plus M1123	1	We can source it $306.91 per eachgov't list price
20	Hose Clamp NSN 4730-00-142-2010 · P/N AA52506 CLAMP Fits: All A2 models, plus M1123	6	We can source it $55–$100 eachtypical
21	Access Cover NSN 5340-01-442-0308 · P/N 12460491 COVER,ACCESS 1997,98,99,00,01 PART OF KIT P/N 57K3523 PART OF KIT P/N 57K3539 PART OF KIT P/N 57K3549 PART OF KIT P/N 57K3558 PART OF KIT P/N 57K3569 Fits: All A2 models, plus M1123	2	1 in stock
22	Retaining Clip NSN 5340-01-474-4011 · P/N 24205103 CLIP,RETAINER 1997,98,99,00,01 Fits: All A2 models, plus M1123	2	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
