HMMWV Transfer Case, W/Container TM 9-2320-280-24P · Fig. 126

Every part in figure 126 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 08 Transfer Assembly: 7 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

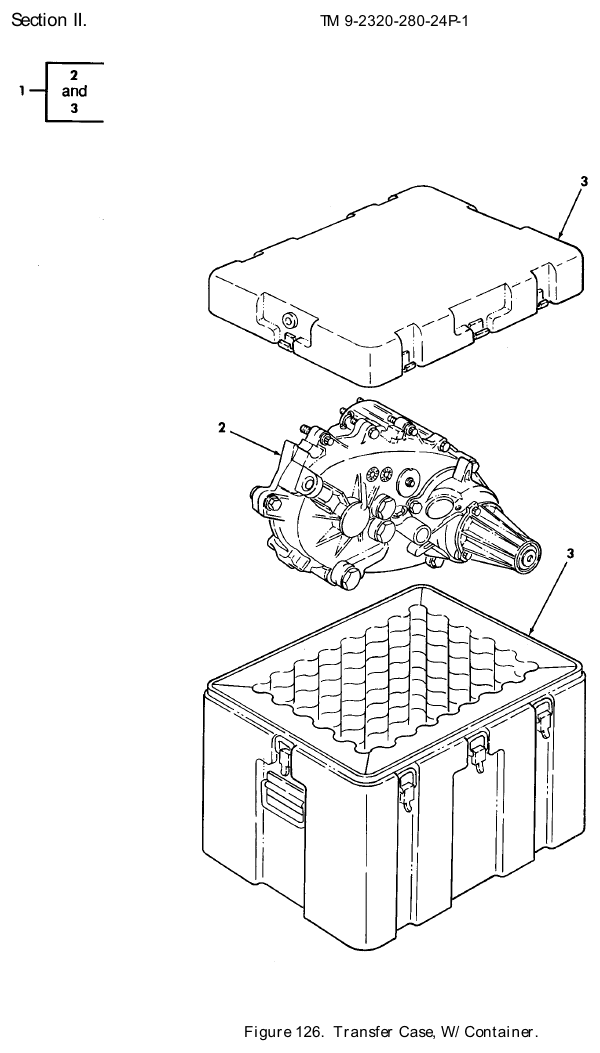

TM 9-2320-280-24P figure 126, Transfer Case, W/Container: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Transfer Transmission Assembly NSN 2520-01-469-9893 · P/N 57K3505 TRANSFER TRANSMISSI 12447125,W/ CONTAINER Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	1	4 in stock $5,668.00 per eachgov't list price
1	Transfer Transmission Assembly NSN 2520-01-473-5029 · P/N 57K3506 TRANSFER TRANSMISSI 12340073-1,W/ CONTAINER Fits: All A0 models except M1097, plus M1121	1	We can source it $2,124.00 per eachgov't list price
1	Transfer and Container NSN 2520-01-452-8365 · P/N 57K3507 TRANSFER AND CONTAI 12342643-1,W/ CONTAINER Fits: All A1 models, plus M1097	1	74 in stock $6,601.00 per eachgov't list price
2	Transfer Transmission Assembly NSN 2520-01-452-7569 · P/N 12342643-1 TRANSFER TRANSMISSI Fits: All A1 models, plus M1097	1	4 in stock $6,601.00 per eachgov't list price
2	Transfer Transmission Assembly NSN 2520-01-163-4999 · P/N 12340073-1 TRANSFER TRANSMISSI Fits: All A0 models except M1097, plus M1121	1	303 in stock $3,999.99our price Buy online ↗
2	Transfer Transmission Assembly NSN 2520-01-409-2512 · P/N 21908 TRANSFER TRANSMISSI Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	1	46 in stock $1,898.00our price Buy online ↗
3	C Shipping and Storage Container NSN 8145-00-485-8250 · P/N 13414-077 SHIPPING AND STORAG Fits: All models	1	3 in stock $407.61 per eachgov't list price

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
