HMMWV Transfer Assembly TM 9-2320-280-24P · Fig. 127

Every part in figure 127 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0801 Power Transfer, Final Drive, Planetary or Drop Gear Box: 16 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

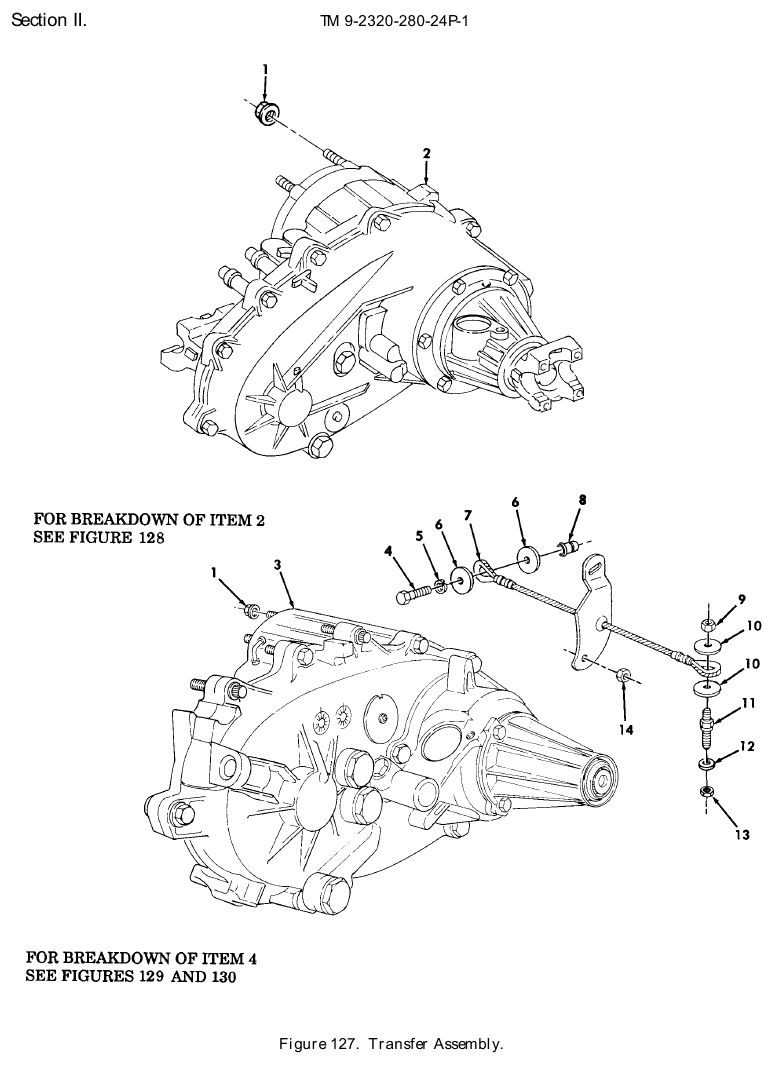

TM 9-2320-280-24P figure 127, Transfer Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Extended Washer Nut NSN 5310-00-447-8774 · P/N MS51988-8 NUT,SELF-LOCKING,EX 3/8-24 Fits: All models	6	99 in stock
2	Transfer Transmission Assembly NSN 2520-01-163-4999 · P/N 12340073-1 TRANSFER TRANSMISSI Fits: All A0 models except M1097, plus M1121	1	303 in stock $3,999.99our price Buy online ↗
3	Transfer Transmission Assembly NSN 2520-01-356-9197 · P/N 5937387 TRANSFER TRANSMISSI Fits: All A1 models, plus M1097	1	1 in stock $6,601.00 per eachgov't list price
3	Transfer Transmission Assembly NSN 2520-01-409-2512 · P/N 12447125 TRANSFER TRANDMISSI THIS TRANSFER FITS BASIC VEHICLE ONLY WHEN KIT P/N 57K3498 IS INSTALLED Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	1	46 in stock $1,898.00our price Buy online ↗
3	Transfer Transmission Assembly NSN 2520-01-452-7569 · P/N 12342643-1 TRANSFER TRANSMISSI Fits: All A1 models, plus M1097	1	4 in stock $6,601.00 per eachgov't list price
4	Cap Hexagon Head Screw NSN 5305-00-071-2070 · P/N B1821BH050C175N SCREW,CAP,HEXAGON H 1/2-13 X 1.75 Fits: All A2 models, plus M1123	1	4,200 in stock $52.99our price Buy online ↗
5	Lock Washer NSN 5310-00-011-6121 · P/N 120384 WASHER,LOCK Fits: All A2 models, plus M1123	1	337 in stock
6	Flat Washer NSN 5310-01-408-9593 · P/N 9428839 WASHER,FLAT Fits: All A2 models, plus M1123	2	We can source it
7	Control Cable Assembly NSN 3040-01-439-3662 · P/N 12447180 WIRE ROPE ASSEMBLY Fits: All A2 models, plus M1123	1	We can source it $104.81 per eachgov't list price
8	Screw Thread Insert NSN 5325-01-409-0211 · P/N ATS2-813 INSERT,SCREW,THREAD Fits: All A2 models, plus M1123	1	We can source it
9	Self-Locking Hexagon Nut NSN 5310-01-150-4003 · P/N 9422299 NUT,SELF-LOCKING,HE Fits: All A2 models, plus M1123	1	251 in stock
10	Flat Washer NSN 5310-01-253-8437 · P/N 12340058 WASHER,FLAT Fits: All A2 models, plus M1123	2	We can source it
11	Shouldered Stud NSN 5307-01-450-3072 · P/N 12447177 STUD Fits: All A2 models, plus M1123	1	We can source it $25–$45 eachtypical
12	Flat Washer NSN 5310-00-068-5285 · P/N 2436166 WASHER,FLAT Fits: All A2 models, plus M1123	1	810 in stock
13	Self-Locking Hexagon Nut NSN 5310-00-044-3342 · P/N 9422303 NUT Fits: All A2 models, plus M1123	1	We can source it
14	Nut NSN 5310-01-143-0512 · P/N 11501033 NUT Fits: All A2 models, plus M1123	1	8 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
