HMMWV Transfer Case Assembly, P/N 5937387, 12342643-1, and 12447125 (Front Half) TM 9-2320-280-24P · Fig. 129

Every part in figure 129 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0801 Power Transfer, Final Drive, Planetary or Drop Gear Box: 45 lines, 20 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

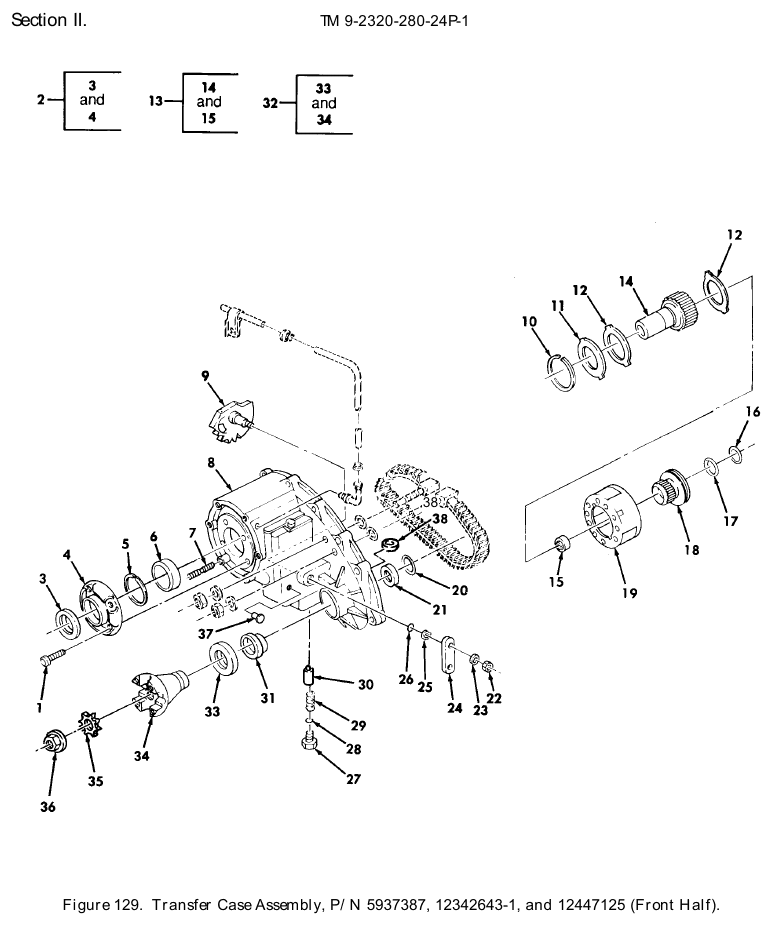

TM 9-2320-280-24P figure 129, Transfer Case Assembly, P/N 5937387, 12342643-1, and 12447125 (Front Half): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-01-359-4529 · P/N 6500318 BOLT,MACHINE Fits: All models	4	We can source it
2	Input Gear Retainer Assembly NSN 2520-01-358-8880 · P/N 16244 RETAINER ASSEMBLY,I Fits: All models	1	We can source it $147.86 per eachgov't list price
3	Plain Encased Seal NSN 5330-01-168-3870 · P/N 5740017 SEAL,PLAIN ENCASED Fits: All models	1	13 in stock $25–$40 eachtypical
4	Retainer P/N 16188 RETAINER Fits: All models	1	Ask us
5	Retaining Ring NSN 5325-01-358-5450 · P/N 16243 RING,RETAINING Fits: All models	1	We can source it
6	Sleeve Bearing NSN 3120-01-359-6760 · P/N 16167 BEARING,SLEEVE USE WITH T-CASE P/N 5937387 Fits: All A1 models, plus M1097	1	2 in stock $50–$100 eachtypical
6	Ball Annular Bearing NSN 3110-01-413-8094 · P/N 17718 BEARING,BALL,ANNULA USE WITH T-CASE P/N 12342643-1 AND 12447125 Fits: All models	1	595 in stock $44.99our price Buy online ↗
7	Plain Stud NSN 5307-01-174-8640 · P/N 5740008 STUD,PLAIN Fits: All models	6	91 in stock
8	Mechanical Drive Housing NSN 3040-01-359-1116 · P/N 17292 HOUSING,MECHANICAL USE WITH T-CASE P/N 5937387 Fits: All A1 models, plus M1097	1	We can source it quote only $515.19 per eachgov't list price
8	Mechanical Drive Housing NSN 3040-01-452-9065 · P/N 21063 HOUSING,MECHANICAL USE WITH T-CASE P/N 12342643-1 AND 12447125 Fits: All models	1	We can source it $431.44 per eachgov't list price
9	Range Sector NSN 2520-01-358-8881 · P/N 17560 RANGE SECTOR FOR USE WITH T-CASE P/N 5937387 Fits: All A1 models, plus M1097	1	1 in stock
9	Transfer Case Sector Assembly NSN 2520-01-413-1900 · P/N 5743744 SECTOR ASSEMBLY,TRA FOR USE WITH T- CASE P/N 12342643-1 AND 12447125 Fits: All models	1	We can source it $65–$110 eachtypical
10	Retaining Ring NSN 5325-01-358-7958 · P/N 16397 RING,RETAINING Fits: All models	1	We can source it
11	Retaining Ring NSN 5325-01-205-5966 · P/N 99088C RING,RETAINING Fits: All models	1	We can source it
12	Washer Thrust Bearing NSN 3120-01-360-1202 · P/N 5938619 BEARING WASHER,THRU Fits: All models	2	We can source it
13	Spur Gearshaft NSN 3040-01-358-8690 · P/N 17381 GEARSHAFT,SPUR USE WITH T-CASE P/N 5937387 Fits: All A1 models, plus M1097	1	We can source it $192.59 per eachgov't list price
13	Transfer Case Gear Assembly NSN 2520-01-413-1899 · P/N 21068 GEAR ASSEMBLY,TRANS USE WITH T-CASE P/N 12447125 AND 12342643-1 Fits: All models	1	We can source it $309.35 per eachgov't list price
14	Input Gear P/N 16538 GEAR,INPUT USE WITH T-CASE P/N 12342643-1 AND 12447125 5937387............................. 1 Fits: All A1 models, plus M1097	1	Ask us
15	Plain Bearing Unit NSN 3130-01-360-1050 · P/N 5938621 BEARING UNIT,PLAIN Fits: All models	1	We can source it $25–$40 eachtypical
16	Flat Washer NSN 5310-01-358-5461 · P/N 16467 WASHER,FLAT Fits: All models	1	We can source it
17	Retaining Ring NSN 5325-01-358-7959 · P/N 16466 RING,RETAINING Fits: All models	1	We can source it
18	Sprocket Wheel NSN 3020-01-359-1211 · P/N 16662 SPROCKET WHEEL RANGE CLUTCH USE WITH T-CASE P/N 5937387 Fits: All A1 models, plus M1097	1	26 in stock $113.35 per eachgov't list price
18	Clutch Transfer Case Sleeve NSN 2520-01-413-1902 · P/N 5714229 SLEEVE,CLUTCH,TRANS USE WITH T-CASE P/N 12342643-1 AND 12447125 Fits: All models	1	We can source it $90–$145 eachtypical
19	Mechanical Drive Housing NSN 3040-01-359-1117 · P/N 16550 HOUSING,MECHANICAL USE WITH T-CASE P/N 5937387 Fits: All A1 models, plus M1097	1	4 in stock $365.17 per eachgov't list price
19	Planetary Gear Unit NSN 3010-01-412-0673 · P/N 17869 GEAR UNIT,PLANETARY USE WITH T-CASE P/N 12342643-1 AND 12447125 Fits: All models	1	We can source it $267.35 per eachgov't list price
20	Retaining Ring NSN 5325-01-358-7960 · P/N 89331A RING,RETAINING Fits: All models	1	We can source it
21	Ball Annular Bearing NSN 3110-01-360-1051 · P/N 5938607 BEARING UNIT,PLAIN FRONT Fits: All models	1	1 in stock $30–$70 eachtypical
22	Self-Locking Hexagon Nut NSN 5310-00-982-4908 · P/N MS21045-6 NUT,SELF-LOCKING,HE Fits: All models	1	969 in stock
23	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: All models	1	1,146 in stock $7.83our price Buy online ↗
24	Rigid Connecting Link NSN 3040-01-358-8708 · P/N 17387 CONNECTING LINK,RIG Fits: All models	1	We can source it
25	Packing Retainer NSN 5330-01-159-2811 · P/N 14037958 RETAINER,PACKING Fits: All models	1	33 in stock
26	O-Ring NSN 5331-00-451-0118 · P/N 5740012 O-RING Fits: All models	1	13 in stock $39.19our price Buy online ↗
27	Cap Hexagon Head Screw NSN 5305-01-359-4586 · P/N 16756 SCREW,CAP,HEXAGON H Fits: All models	1	1 in stock
28	O-Ring NSN 5331-01-358-9545 · P/N 15715 O-RING Fits: All models	1	We can source it
29	Helical Compression Spring NSN 5360-01-358-6563 · P/N 17071 SPRING,HELICAL,COMP Fits: All models	1	We can source it
30	Detent Plunger NSN 5340-01-358-8000 · P/N 16754 PLUNGER,DETENT Fits: All models	1	We can source it
31	Plain Encased Seal NSN 5330-01-358-9532 · P/N 29960-0511 SEAL,PLAIN ENCASED FRONT OUTPUT,USE WITH T-CASE P/N 5937387 Fits: All A1 models, plus M1097	1	203 in stock $24.01our price Buy online ↗
31	Plain Encased Seal NSN 5330-01-413-3713 · P/N 19016 SEAL,PLAIN ENCASED FRONT OUTPUT,USE WITH T-CASE P/N 12342643-1 AND 12447125 Fits: All models	1	36 in stock $17.15our price Buy online ↗
32	Universal Joint Vehicular Yoke NSN 2520-01-174-9554 · P/N 5938685 YOKE,UNIVERSAL JOIN FRONT Fits: All models	1	22 in stock $75–$130 eachtypical
33	Dirt and Liquid Deflector NSN 2520-01-149-4993 · P/N 5740225 DEFLECTOR,DIRT AND FRONT Fits: All models	1	8 in stock
34	Yoke P/N 13766 YOKE,UNIVERSAL JOIN FRONT Fits: All models	1	Ask us
35	Lock Washer NSN 5310-01-148-2687 · P/N 12338062 WASHER,LOCK Fits: All models	1	13 in stock
36	Plain Assem. Nut NSN 5310-01-174-8091 · P/N 4167924 NUT,PLAIN,ASSEM Fits: All models	1	1 in stock
37	Leakproof Seal Plug NSN 5340-01-290-6234 · P/N 00015105 PLUG,LEAKPROOF SEAL Fits: All models	1	We can source it
38	Chip Collector Magnet NSN 2520-01-159-7757 · P/N 3787240 MAGNET,CHIP COLLECT Fits: All models	1	73 in stock quote only

Buy the 5 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
