HMMWV Transfer Case Assembly, P/N 5937387, 12342643-1, and 12447125 (Rear Half) TM 9-2320-280-24P · Fig. 130

Every part in figure 130 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0801 Power Transfer, Final Drive, Planetary or Drop Gear Box: 59 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

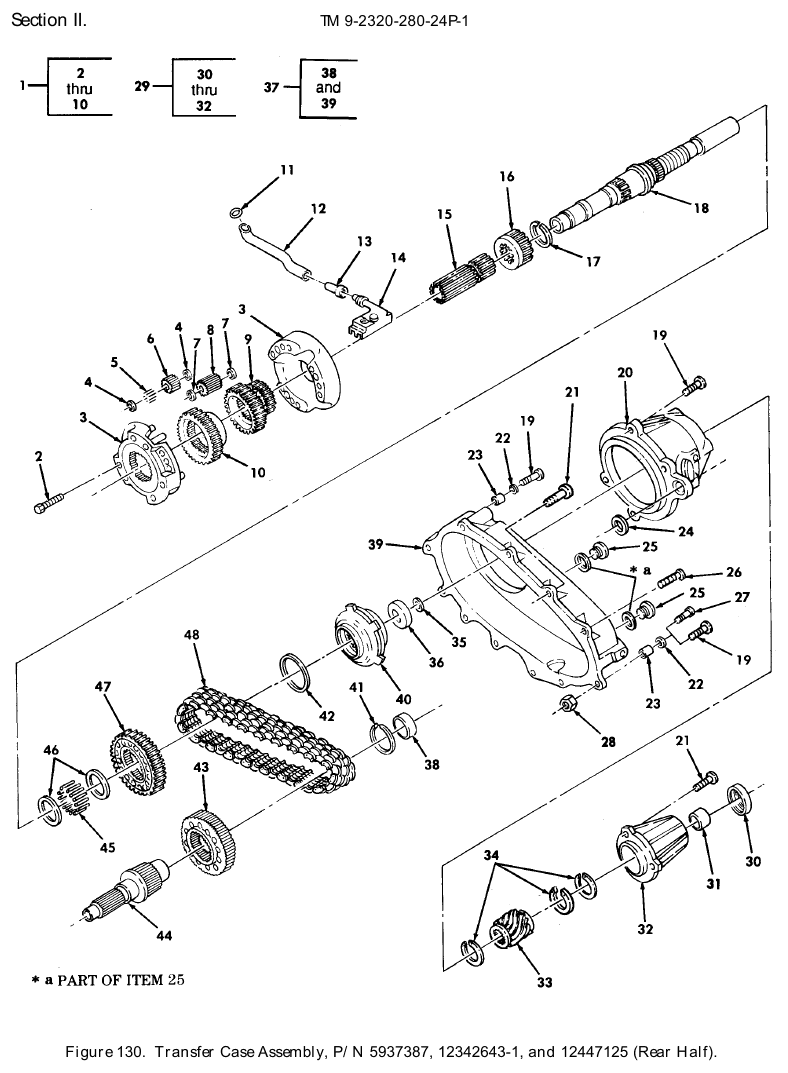

TM 9-2320-280-24P figure 130, Transfer Case Assembly, P/N 5937387, 12342643-1, and 12447125 (Rear Half): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Planetary Gear Assembly NSN 2520-01-358-8879 · P/N 17588 PLANETARY GEAR ASSE CARRIER Fits: All models	1	We can source it $984.36 per eachgov't list price
2	Machine Bolt NSN 5306-01-359-4530 · P/N 11797 BOLT,MACHINE USE WITH T-CASE P/N 5937387 Fits: All A1 models, plus M1097	6	We can source it
2	Machine Bolt NSN 5306-01-359-4530 · P/N 11797 BOLT,MACHINE USE WITH T-CASE P/N 12342643-1 AND 12447125 Fits: All models	3	We can source it
3	Planetary Gear Asse NSN 2520-01-358-8878 · P/N 16651 PLANETARY GEAR ASSE Fits: All models	1	We can source it
4	Flat Washer NSN 5310-01-358-7974 · P/N 17568 WASHER,FLAT Fits: All models	6	We can source it
5	Roller Needle Bearing NSN 3110-01-359-6669 · P/N 17567 BEARING,ROLLER,NEED Fits: All models	54	We can source it
6	Spur Gear NSN 3020-01-359-1136 · P/N 17566 GEAR,SPUR DIFFERENTIAL NARROW Fits: All models	3	We can source it $25–$60 eachtypical
7	Flat Washer NSN 5310-01-358-7975 · P/N 16286 WASHER,FLAT Fits: All models	6	We can source it
8	Spur Gear NSN 3020-01-358-8661 · P/N 16290 GEAR,SPUR Fits: All models	3	We can source it $25–$50 eachtypical
9	Gear Cluster NSN 3020-01-358-8656 · P/N 17570 GEAR CLUSTER Fits: All models	1	1 in stock $132.02 per eachgov't list price
10	Differential Gear Unit NSN 2520-01-358-8658 · P/N 17573 DIFFERENTIAL GEAR U Fits: All models	1	We can source it $522.01 per eachgov't list price
11	Plain Seal NSN 5330-01-358-9541 · P/N 16214 SEAL,PLAIN TUBE"O"RING Fits: All models	1	We can source it
12	Bent Metallic Tube NSN 4710-01-358-8410 · P/N 17510 TUBE,BENT,METALLIC Fits: All models	1	2 in stock $35–$75 eachtypical
13	Nonmetallic Hose NSN 4720-01-358-6100 · P/N 16218 HOSE,NONMETALLIC Fits: All models	1	We can source it
14	Sediment Strainer Element NSN 4730-01-359-2217 · P/N 5938666 STRAINER ELEMENT,SE Fits: All models	1	2 in stock
15	Gear Cluster NSN 3020-01-358-8657 · P/N 16433 GEAR CLUSTER USE WITH T-CASE P/N 5937387 Fits: All A1 models, plus M1097	1	We can source it $201.90 per eachgov't list price
15	Straight Shaft NSN 3040-01-413-4022 · P/N 21065 SHAFT,STRAIGHT USE WITH T-CASE P/N 12342643-1 AND 12447125 Fits: All models	1	We can source it $130.67 per eachgov't list price
16	Spur Gear NSN 3020-01-358-8662 · P/N 17575 GEAR,SPUR Fits: All models	1	We can source it $90–$155 eachtypical
17	Ring Spacer NSN 5365-01-358-4641 · P/N 16297 SPACER,RING DIFFERENTIAL GEAR RETAINING Fits: All models	1	We can source it
18	Multiple Gears Gearshaft NSN 3040-01-358-8692 · P/N 17565 GEARSHAFT,MULTIPLE USE WITH T-CASE P/N 5937387 AND 12342643-1 Fits: All A1 models, plus M1097	1	3 in stock $183.35 per eachgov't list price
18	Shouldered Shaft NSN 3040-01-420-1887 · P/N 21909 SHAFT,SHOULDERED USE WITH T-CASE P/N 12447125 Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	1	9 in stock $302.92 per eachgov't list price
19	Machine Bolt NSN 5306-01-165-4283 · P/N 11500831 BOLT,SELF-LOCKING USE WITH T-CASE P/N 5937387 AND 12342643-1 Fits: All A1 models, plus M1097	6	We can source it
19	Machine Bolt NSN 5306-01-165-4283 · P/N 61575 BOLT,SELF-LOCKING USE WITH T-CASE P/N 12447125 Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	5	We can source it
20	Mechanical Drive Housing NSN 3040-01-359-1119 · P/N 17584 HOUSING,MECHANICAL REAR BEARING USE WITH T-CASE P/N 5937387 AND 12342643-1 Fits: All A1 models, plus M1097	1	15 in stock $171.66 per eachgov't list price
20	Packing Retainer NSN 5330-01-415-9612 · P/N 21727 RETAINER,PACKING USE WITH T-CASE P/N 12447125 Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	1	We can source it $406.96 per eachgov't list price
21	Machine Bolt NSN 5306-01-152-4696 · P/N 11503428 BOLT,SELF-LOCKING USE WITH T-CASE P/N 5937387 AND 12342643-1 Fits: All A1 models, plus M1097	9	We can source it
22	Flat Washer NSN 5310-01-174-8158 · P/N 5740230 WASHER,FLAT DOWEL,CASE ALIGNMENT Fits: All models	12	We can source it
23	Spring Pin NSN 5315-01-160-4642 · P/N 14037948 PIN,SPRING CASE ALIGNMENT Fits: All models	2	We can source it
24	Alignment Sleeve NSN 4910-01-464-0812 · P/N 5938665 PIN,STRAIGHT,HEADLE DOWEL Fits: All models	1	We can source it
25	Machine Thread Plug NSN 5365-01-305-7067 · P/N 5740224 PLUG,MACHINE THREAD Fits: All models	2	3,234 in stock
26	Special Screw NSN 5340-01-209-7668 · P/N 5741075 SCREW,SPECIAL Fits: All models	2	3 in stock
27	Machine Screw NSN 5305-01-416-1269 · P/N 17844 SCREW,MACHINE USE WITH T-CASE P/N 12447125 Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	1	We can source it
28	Plain Hexagon Nut NSN 5310-01-416-3009 · P/N 5714233 NUT,PLAIN,HEXAGON USE WITH T-CASE P/N 12447125 Fits: All A2 models; all A0 models except M1046, M1097, plus M1121, M1123	1	We can source it
29	Mechanical Drive Housing NSN 3040-01-360-4448 · P/N 16221 HOUSING,MECHANICAL USE WITH T-CASE P/N 5937387 AND 12342643-1 Fits: All A1 models, plus M1097	1	We can source it $50–$85 eachtypical
29	Transfer Case Extension Assembly NSN 2520-01-413-1904 · P/N 19140 EXTENSION ASSEMBLY USE WITH T-CASE P/N 12447125 Fits: All A2 models; all A0 models except M1046, M1097, plus M1121, M1123	1	We can source it $70–$120 eachtypical
30	Plain Seal NSN 5330-01-358-9540 · P/N 16104 SEAL,PLAIN REAR OUTPUT USE WITH T-CASE P/N 5937387 AND 12342643-1 Fits: All A1 models, plus M1097	1	1 in stock
30	Plain Seal NSN 5330-01-415-9613 · P/N 15896 SEAL,PLAIN USE WITH T-CASE P/N 12447125 Fits: All A2 models; all A0 models except M1046, M1097, plus M1121, M1123	1	7 in stock $25.99our price Buy online ↗
31	Plain Encased Seal NSN 5330-01-358-9533 · P/N 16081 SEAL,PLAIN ENCASED USE WITH T-CASE P/N 5937387 AND 12347643-1 Fits: All A1 models, plus M1097	1	2 in stock $25–$40 eachtypical
31	Sleeve Bushing NSN 3120-01-417-8178 · P/N 17475 BUSHING,SLEEVE USE WITH T-CASE P/N 12447125 Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	1	We can source it
32	Extension P/N 16223 EXTENSION USE WITH T-CASE P/N 5937387 AND 12342643-1 Fits: All A1 models, plus M1097	1	Ask us
32	Extension Rear Housing P/N 19134 EXTENSION REAR HOUSING USE WITH T-CASE P/N 12447125 Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	1	Ask us
33	Helical Gear NSN 3020-01-358-8659 · P/N 16276 GEAR,HELICAL SPEEDO-DRIVE Fits: All models	1	132 in stock
34	Retaining Ring NSN 5325-01-358-7962 · P/N 13955 RING,RETAINING Fits: All models	3	We can source it
35	Plain Seal NSN 5330-01-359-1292 · P/N 15574 SEAL,PLAIN USE WITH T-CASE P/N 5937387 AND 12342643-1 Fits: All A1 models, plus M1097	1	We can source it $90–$150 eachtypical
35	Ring Retaining P/N 96711-B RING RETAINING USE WITH T-CASE P/N 12447125 Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	1	Ask us
36	Bearing Ball NSN 3110-01-360-0977 · P/N 15720 BEARING,WASHER,THRU USE WITH T-CASE P/N 5937387 AND 12342643-1 Fits: All A1 models, plus M1097	1	We can source it $25–$60 eachtypical
36	Ball Annular Bearing NSN 3110-01-360-1051 · P/N 5938607 BEARING UNIT,PLAIN USE WITH T-CASE P/N 12447125 Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	1	1 in stock $30–$70 eachtypical
37	Mechanical Drive Housing NSN 3040-01-359-1118 · P/N 17585 HOUSING,MECHANICAL Fits: All models	1	1 in stock $185.22 per eachgov't list price
38	Roller Needle Bearing NSN 3110-01-155-4440 · P/N J-2416 BEARING,ROLLER,NEED Fits: All models	1	1 in stock $25–$55 eachtypical
39	Case Rear Half P/N 17578 CASE REAR HALF Fits: All models	1	Ask us
40	Rotary Pump Gear Rotor Set NSN 4320-01-358-8608 · P/N 16686 GEAR ROTOR SET,ROTA Fits: All models	1	We can source it $65–$110 eachtypical
41	Retaining Ring NSN 5325-01-157-6764 · P/N 14037981 RING,RETAINING Fits: All models	1	We can source it
42	Retaining Ring NSN 5325-01-358-7961 · P/N 13877 RING,RETAINING Fits: All models	1	We can source it
43	Sprocket Wheel NSN 3020-01-359-2529 · P/N 5938663 SPROCKET WHEEL Fits: All models	1	We can source it $55–$100 eachtypical
44	Spur Gearshaft NSN 3040-01-358-8691 · P/N 16275 GEARSHAFT,SPUR FRONT OUTPUT Fits: All models	1	We can source it $85–$145 eachtypical
45	Bearing Roller Set NSN 3110-01-359-8858 · P/N 5938654 ROLLER SET,BEARING Fits: All models	53	2,972 in stock $6.85our price Buy online ↗
46	Washer Thrust Bearing NSN 3120-01-360-5960 · P/N 5938653 BEARING,WASHER,THRU Fits: All models	2	We can source it
47	Sprocket Wheel NSN 3020-01-359-2529 · P/N 17571 SPROCKET WHEEL Fits: All models	1	We can source it $55–$100 eachtypical
48	Silent Chain NSN 3020-01-358-8601 · P/N 17577 CHAIN,SILENT Fits: All models	1	90 in stock $125.00our price Buy online ↗

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
