HMMWV Front Halfshaft Assembly, Left and Right Side TM 9-2320-280-24P · Fig. 139

Every part in figure 139 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1000 Front Axle Assembly: 19 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

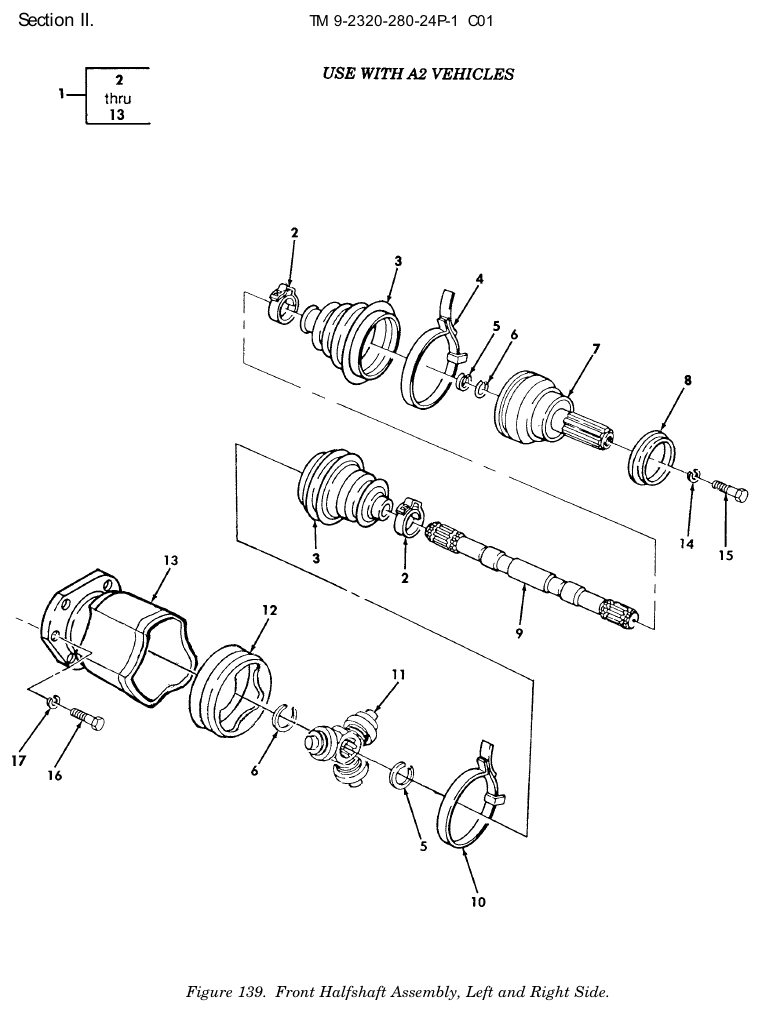

TM 9-2320-280-24P figure 139, Front Halfshaft Assembly, Left and Right Side: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Axle Automotive Shaft NSN 2530-01-423-1947 · P/N RCSK17028-2 SHAFT,AXLE,AUTOMOTI FRONT,R.H Fits: All A2 models, plus M1123	1	71 in stock $400.00our price Buy online ↗
1	Axle Automotive Shaft NSN 2520-01-421-4588 · P/N RCSK17028-3 SHAFT,AXLE,AUTOMOTI FRONT,L.H Fits: All A2 models, plus M1123	1	38 in stock $479.17 per eachgov't list price
2	Boot Clamp P/N 1400270 CLAMP,BOOT 35.1MM PART OF KIT P/N 2990054,PART OF KIT P/N 2990055,PART OF KIT P/N 57K3515 Fits: All A2 models, plus M1123	2	Ask us
3	Boot P/N 2890019 BOOT PART OF KIT P/N 2990054,PART OF KIT P/N 2990055,PART OF KIT P/N 57K3515 Fits: All A2 models, plus M1123	2	Ask us
4	Boot Clamp P/N 1400271 CLAMP,BOOT 106.8MM PART OF KIT P/N 57K3515,PART OF KIT P/N 2990054,PART OF KIT P/N 2990055 Fits: All A2 models, plus M1123	1	Ask us
5	Spacer Ring P/N 2090004 RING,SPACER PART OF KIT P/N 2390077 PART OF KIT P/N 2990054 PART OF KIT P/N 2390055 PART OF KIT P/N 57K3515 Fits: All A2 models, plus M1123	2	Ask us
6	Retaining Ring P/N 2090003 RING,RETAINING PART OF KIT P/N 2390077,PART OF KIT P/N 2990054,PART OF KIT P/N 2990055,PART OF KIT P/N 57K3515 Fits: All A2 models, plus M1123	2	Ask us
7	Joint Assembly Fixed P/N 2290033 JOINT ASSEMBLY FIXED PART OF KIT P/N 2990054,PART OF KIT P/N 2990055 Fits: All A2 models, plus M1123	1	Ask us
8	Dirt and Liquid Deflector NSN 2530-01-296-9333 · P/N 5598209 DEFLECTOR,DIRT AND PART OF KIT P/N 2990054,PART OF KIT P/N 2990055 Fits: All A2 models, plus M1123	1	We can source it
9	Shaft P/N 2790024 SHAFT,SHOULDERED L.H. PART OF KIT P/N 2990054 Fits: All A2 models, plus M1123	1	Ask us
9	Shouldered R.h. Shaft P/N 2790026 SHAFT,SHOULDERED R.H.,PART OF KIT P/N 2990055 Fits: All A2 models, plus M1123	1	Ask us
10	Axle Vehicular Nondriv Parts Kit NSN 2530-01-459-9497 · P/N 1400269 PARTS KIT,AXLE,VEHI BOOT CLAMP, 102.5MM PART OF KIT P/N 57K3515 Fits: All A2 models, plus M1123	1	37 in stock
11	Spider Assembly P/N 2390036 SPIDER ASSEMBLY PART OF KIT P/N 2390077 Fits: All A2 models, plus M1123	1	Ask us
12	Insert P/N 2390076 INSERT PART OF KIT P/N 2390077 Fits: All A2 models, plus M1123	1	Ask us
13	Plunge Joint P/N 2390074 JOINT,PLUNGE PART OF KIT P/N 2390077 Fits: All A2 models, plus M1123	1	Ask us
14	Lock Washer NSN 5310-00-011-5093 · P/N MS35338-65 WASHER,LOCK Fits: All A2 models, plus M1123	2	71 in stock
15	Cap Hexagon Head Screw NSN 5305-00-068-0511 · P/N B1821BH038C125N SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	2	1,907 in stock
16	Machine Bolt NSN 5306-01-185-7048 · P/N 11513606 BOLT,MACHINE 10-1.5 X 35MM Fits: All A2 models, plus M1123	12	9,070 in stock
17	Lock Washer NSN 5310-01-185-7218 · P/N 11500177 WASHER,LOCK 10MM Fits: All A2 models, plus M1123	12	7,630 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
