HMMWV Front Halfshaft Assembly, Left and Right Side TM 9-2320-280-24P · Fig. 138

Every part in figure 138 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 10 Front Axle: 29 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

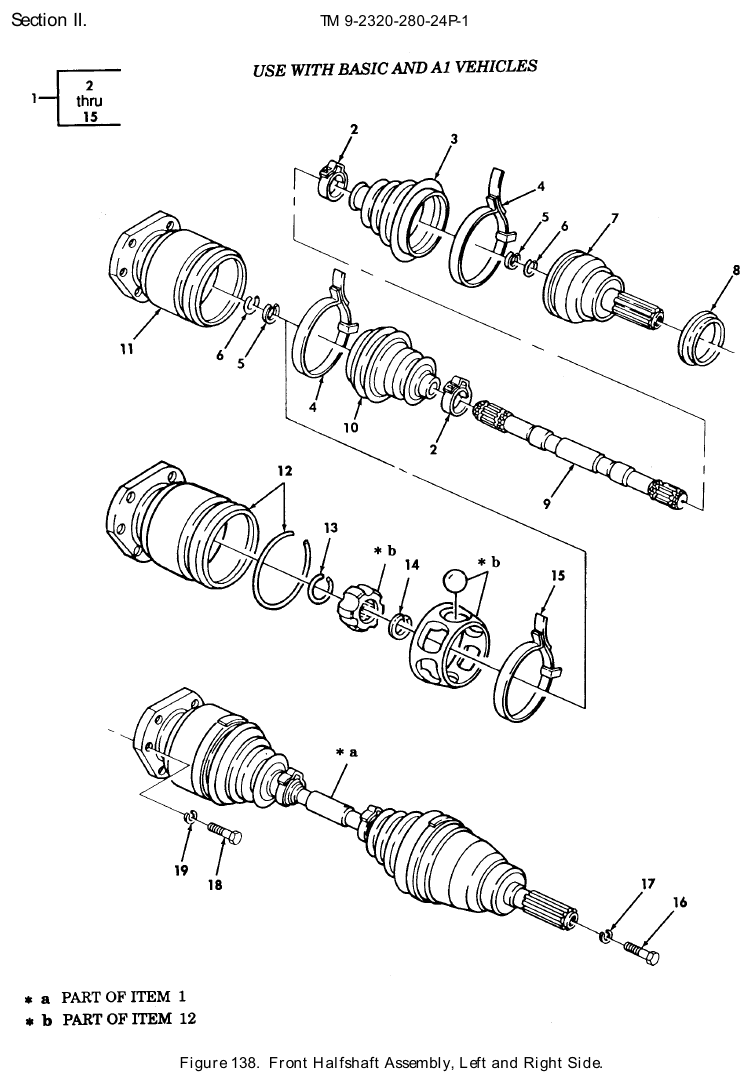

TM 9-2320-280-24P figure 138, Front Halfshaft Assembly, Left and Right Side: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Constant Velocity Driv Parts Kit NSN 2520-01-382-8728 · P/N 2980301 PARTS KIT,CONSTANT FRONT,R.H Fits: All A0 and A1 models, plus M1121	1	44 in stock $260.99our price Buy online ↗
1	Constant Velocity Driv Parts Kit NSN 2520-01-382-8874 · P/N 2980300 PARTS KIT,CONSTANT FRONT L.H Fits: All A0 and A1 models, plus M1121	1	52 in stock $335.00our price Buy online ↗
2	Race Clamp P/N 5741547 CLAMP,RACE USE WITH P/N’S 12341985-1,12341985-2,12341985-4, 12341985-5,PART OF KIT P/N 287-0006, PART OF KIT P/N 5705606 Fits: All A0 models except M1097, plus M1121	2	Ask us
2	Loop Clamp NSN 5340-01-424-1300 · P/N 1400164 CLAMP,LOOP 33.7 MM PART OF KIT P/N 57K0274,PART OF KIT P/N 2880019 Fits: All A0 and A1 models, plus M1121	2	We can source it
3	Fixed Boot P/N 5740258 BOOT,FIXED USE WITH P/N’S 12341985-1,12341985-2,12341985-4, 12341985-5 PART OF KIT P/N 287-0006 Fits: All A0 models except M1097, plus M1121	1	Ask us
3	Fixed Boot P/N 2880015 BOOT,FIXED PART OF KIT P/N 2880019 Fits: All A0 and A1 models, plus M1121	1	Ask us
4	Clamp P/N 5741548 CLAMP,RIM CLENCHING USE WITH P/N’S 12341985-1,12341985-2,12341985-4, 12341985-5,PART OF KIT P/N 5705606, PART OF KIT 287-0006 Fits: All A0 models except M1097, plus M1121	2	Ask us
4	Loop Clamp NSN 5340-01-421-1423 · P/N 1400165 CLAMP,LOOP 99.8 MM PART OF KIT P/N 2880019 Fits: All A0 and A1 models, plus M1121	1	We can source it
5	Ring Spacer NSN 5365-01-383-1925 · P/N 5740549 SPACER,RING USE WITH P/N’S 12341985-1,12341985-2,12341985-4, 12341985-5 Fits: All A0 models except M1097, plus M1121	2	We can source it
6	Retaining Ring NSN 5325-01-212-2403 · P/N 5741098 RING,RETAINING USE WITH P/N’S 12341985-1,12341985-2,12341985-4, 12341985-5 Fits: All A0 models except M1097, plus M1121	2	61 in stock
7	Ball Joint NSN 3040-01-189-1637 · P/N 5740551 BALL JOINT USE WITH P/N’S 12341985-1,12341985-2,12341985-4, 12341985-5 H21,H24,H25,H26,H27,H28,MMM Fits: M966, M996, M997, M998, M1025, M1026 and 2 more	1	1 in stock
7	Ball Joint P/N 2280024 BALL JOINT USE WITH P/N’S 2980300,2980301 Fits: All A0 and A1 models, plus M1121	1	Ask us
8	Dirt and Liquid Deflector NSN 2530-01-296-9333 · P/N 5598209 DEFLECTOR,DIRT AND Fits: All A0 and A1 models, plus M1121	1	We can source it
9	Shaft P/N 5740552 SHAFT,SHOULDERED L.H.USE WITH P/N 12341985-1 Fits: All A0 models except M1097, plus M1121	1	Ask us
9	Shaft P/N 5740255 SHAFT,SHOULDERED R.H.USE WITH P/N 12341985-2 Fits: All A0 models except M1097, plus M1121	1	Ask us
9	Shaft P/N 2780035 SHAFT,SHOULDERED L.H.USE WITH P/N 2980300 Fits: All A0 and A1 models, plus M1121	1	Ask us
9	Shaft P/N 2780037 SHAFT,SHOULDERED R.H.USE WITH P/N 2980301 Fits: All A0 and A1 models, plus M1121	1	Ask us
10	Plunge Boot P/N 5740257 BOOT,PLUNGE USE WITH P/N’S 12341985-1,12341985-2,12341985-4, 12341985-5 PART OF KIT P/N 5705606 Fits: All A0 models except M1097, plus M1121	1	Ask us
10	Plunge Boot P/N 2880016 BOOT,PLUNGE PART OF KIT P/N 57K0274 Fits: All A0 and A1 models, plus M1121	1	Ask us
11	Joint Assembly NSN 2520-01-189-1636 · P/N 5740550 JOINT ASSEMBLY,DIFF USE WITH P/N’S 12341985-1,12341985-2,12341985-4, 12341985-5 Fits: All A0 models except M1097, plus M1121	1	1 in stock
12	Constant Velocity Drive Housing NSN 2520-01-485-1813 · P/N 218-0007 HOUSING,CONSTANT VE USE WITH P/N 2980301 AND 2980300 Fits: All A0 and A1 models, plus M1121	1	22 in stock $468.87 per eachgov't list price
13	Retainer Ring P/N 2080021 RING,RETAINER PART OF KIT P/N 57K0274,PART OF KIT P/N 2880019 Fits: All A0 and A1 models, plus M1121	2	Ask us
13	Stop Ring P/N 2080005 RING,STOP PART OF KIT P/N 2880019 PART OF KIT P/N 57K0274,USE WITH P/N’S 12341985-4,12341985-5 Fits: M1097	2	Ask us
14	Ring Spacer P/N 2080007 SPACER,RING PART OF KIT P/N 57K0274 PART OF KIT P/N 2880019 Fits: All A0 and A1 models, plus M1121	2	Ask us
15	Loop Clamp P/N 1400166 CLAMP,LOOP 96.5 MM PART OF KIT P/N 57K0274,PART OF KIT P/N 2880019 Fits: All A0 and A1 models, plus M1121	1	Ask us
16	Cap Hexagon Head Screw NSN 5305-00-068-0511 · P/N B1821BH038C125N SCREW,CAP,HEXAGON H 3/8-16 X 1.125 Fits: All models	2	1,907 in stock
17	Lock Washer NSN 5310-00-011-5093 · P/N MS35338-65 WASHER,LOCK 3/8 Fits: All models	2	71 in stock
18	Machine Bolt NSN 5306-01-185-7048 · P/N 11513606 BOLT,MACHINE 10-1.5 X 35 MM Fits: All models	12	9,070 in stock
19	Lock Washer NSN 5310-01-185-7218 · P/N 11500177 WASHER,LOCK 10MM Fits: All models	12	7,630 in stock

Buy the 2 in-stock parts on our store ↗
