HMMWV Fuel Tank Supply and Return Lines, (Current Models) TM 9-2320-280-24P · Fig. 14

Every part in figure 14 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0306 Tanks, Lines, Fittings, Headers: 28 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

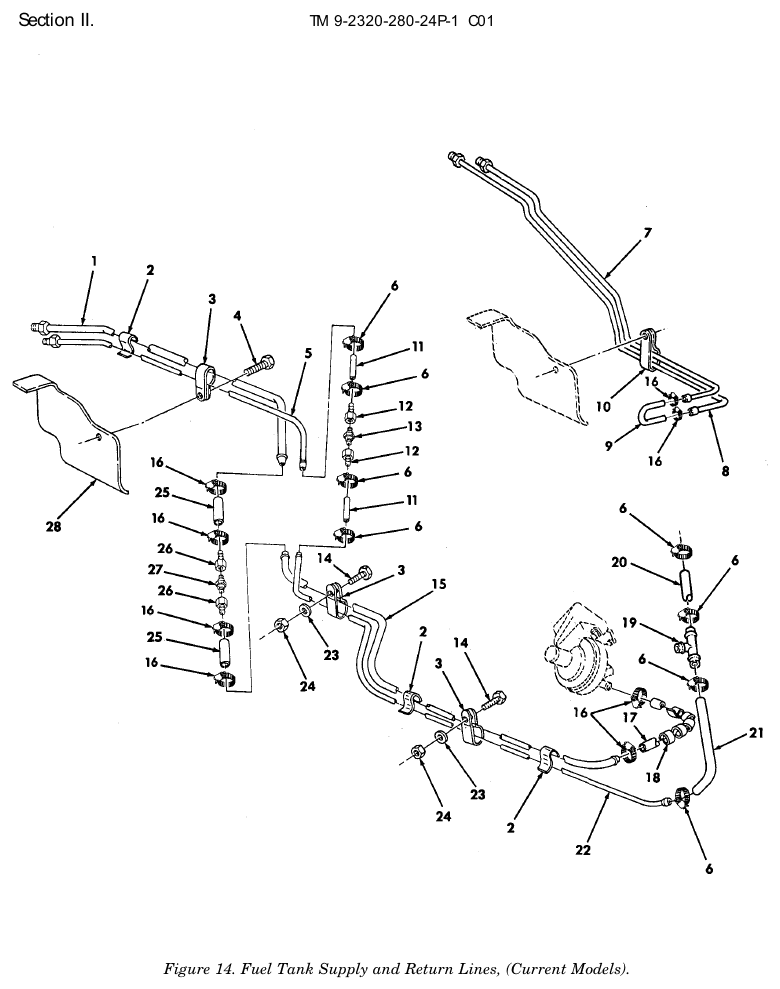

TM 9-2320-280-24P figure 14, Fuel Tank Supply and Return Lines, (Current Models): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Metal Tube Assembly NSN 4710-01-412-0273 · P/N 12342949 TUBE ASSEMBLY,METAL Fits: All models	1	670 in stock $30–$70 eachtypical
2	Spring Tension Clip NSN 5340-01-187-0892 · P/N 12339890 CLIP,SPRING TENSION 3/8 X 1/4 Fits: All models	3	We can source it
3	Loop Clamp NSN 5340-01-017-4630 · P/N 30H-18 CLAMP,LOOP Fits: All models	3	We can source it
4	Machine Screw NSN 5305-01-211-1450 · P/N 9415857 SCREW,MACHINE 1/4-20 X 5/8 Fits: All models	1	We can source it
5	Metal Tube Assembly NSN 4710-01-413-1360 · P/N 12342950 TUBE ASSEMBLY,METAL Fits: All models	1	684 in stock $45–$90 eachtypical
6	Hose Clamp NSN 4730-01-118-8278 · P/N MMF4-SS CLAMP,HOSE Fits: All models	8	9 in stock
7	Metal Tube Assembly NSN 4710-01-358-2127 · P/N 12342748 TUBE ASSEMBLY,METAL Fits: All models	1	We can source it $25–$60 eachtypical
8	Metal Tube Assembly NSN 4710-01-358-6397 · P/N 12342747 TUBE ASSEMBLY,METAL Fits: All models	1	1,204 in stock $29.89our price Buy online ↗
9	Hose Make From Hose P/N 9438218 HOSE MAKE FROM HOSE, P/N 4219-3681 6.3 INCHES LONG Fits: All models	1	Ask us
10	Loop Clamp NSN 5340-01-049-9564 · P/N MS21334-25 CLAMP,LOOP Fits: All models	1	998 in stock
11	Fuel Return Make From Hose Hose P/N 12338560-3 HOSE,FUEL RETURN MAKE FROM HOSE,P/ N 9438257,2.25 INCHES LONG Fits: All models	2	Ask us
12	Straight Pipe to Hose Adapter NSN 4730-01-412-5216 · P/N 12342951-1 ADAPTER,STRAIGHT,PI Fits: All models	2	We can source it
13	Check Valve NSN 4820-01-430-4132 · P/N 2269B-2MM-.5 VALVE,CHECK Fits: All models	1	29 in stock $240.10our price Buy online ↗
14	Tapping Screw NSN 5305-01-206-7219 · P/N G9426241 SCREW,TAPPING 1/4-20 X 3/4 Fits: All models	2	We can source it
15	Bent Metallic Tube NSN 4710-01-187-6759 · P/N 5584024 TUBE,BENT,METALLIC Fits: All models	1	We can source it $35–$75 eachtypical
16	Hose Clamp NSN 4730-00-024-3971 · P/N 62606 CLAMP,HOSE Fits: All models	8	6 in stock
17	Hose Make From Hose P/N 5578910 HOSE MAKE FROM HOSE,P/N 9438373, 7.75 INCHES LONG Fits: All models	1	Ask us
18	Plastic Tubing P/N B47287-II-1/2-3 TUBING,PLASTIC,SPIR MAKE FROM TUBING,P/N B47287-II-1/2,3 INCHES LONG Fits: All models	1	Ask us
19	Tube Tee NSN 4730-01-476-0850 · P/N 1064X6X6X4 TEE,HOSE Fits: All models	1	We can source it
20	Hose Make From Hose P/N 12338560-1 HOSE MAKE FROM HOSE,P/N 9438257, LENGTH AS REQUIRED Fits: All models	1	Ask us
21	Hose Make From Hose P/N 12338560-4 HOSE MAKE FROM HOSE,P/N 9438257,9 INCHES LONG Fits: All models	1	Ask us
22	Bent Metallic Tube NSN 4710-01-186-0665 · P/N 5584023 TUBE,BENT,METALLIC Fits: All models	1	849 in stock $25–$50 eachtypical
23	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All models	2	351 in stock
24	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	2	626 in stock
25	Fuel Supply Make From Hose Hose P/N 12338561-2 HOSE,FUEL SUPPLY MAKE FROM HOSE,P/N 9438373,2.25 INCHES LONG Fits: All models	2	Ask us
26	Straight Pipe to Hose Adapter NSN 4730-01-412-5213 · P/N 12342951-2 ADAPTER,STRAIGHT,PI Fits: All models	2	We can source it $25–$40 eachtypical
27	Check Valve NSN 4820-01-173-6883 · P/N 2269B-2MM-3 VALVE,CHECK Fits: All models	1	We can source it $115.22 per eachgov't list price
28	Fuel Tank Shield NSN 2910-01-412-0047 · P/N 12460102 SHIELD,FUEL TANK Fits: All models	1	1,464 in stock $45–$90 eachtypical

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
