HMMWV Fuel Tank Assembly and Mounting Straps TM 9-2320-280-24P · Fig. 15

Every part in figure 15 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0306 Tanks, Lines, Fittings, Headers: 37 lines, 31 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

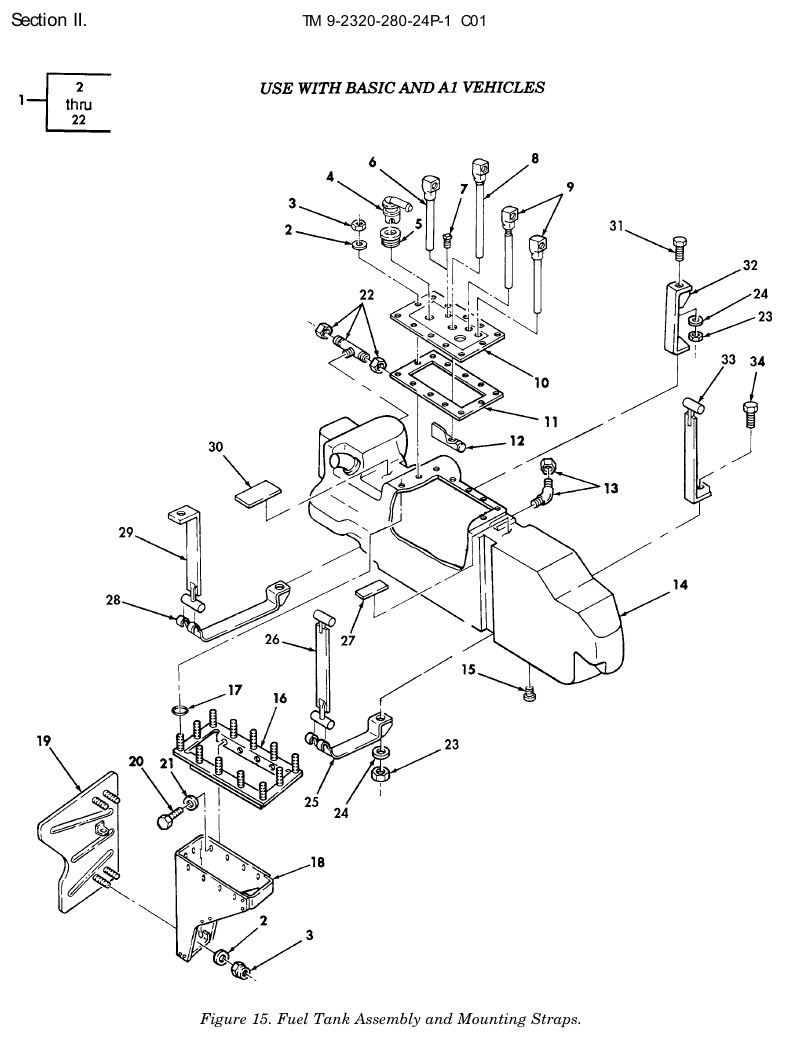

TM 9-2320-280-24P figure 15, Fuel Tank Assembly and Mounting Straps: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Fuel Engine Tank NSN 2910-01-189-4770 · P/N 12338579 TANK,FUEL,ENGINE Fits: All A0 models except M1097, plus M1121	1	50 in stock $3,152.46 per eachgov't list price
1	Fuel Engine Tank NSN 2910-01-357-8798 · P/N 12342745 TANK,FUEL,ENGINE Fits: All A1 models, plus M1097	1	We can source it $1,676.67 per eachgov't list price
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All A0 and A1 models, plus M1121	16	351 in stock
3	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All A0 and A1 models, plus M1121	16	626 in stock
4	Vent Valve NSN 4820-01-210-3488 · P/N 346-786 VALVE,VENT Fits: All A0 and A1 models, plus M1121	1	63 in stock $31.88our price Buy online ↗
5	Nonmetallic Grommet NSN 5325-01-210-2870 · P/N E1F79B076-B GROMMET,NONMETALLIC Fits: All A0 and A1 models, plus M1121	1	18 in stock
6	Metal Tube Assembly NSN 4710-01-359-2956 · P/N 12338548-2 TUBE ASSEMBLY,METAL Fits: All A0 and A1 models, plus M1121	1	94 in stock $25–$55 eachtypical
7	Pipe Plug NSN 4730-00-044-4577 · P/N 1-4SHP-S PLUG,PIPE 1/4-18 Fits: All A0 and A1 models, plus M1121	1	9 in stock
8	Metal Tube Assembly NSN 4710-01-188-6050 · P/N 5574872 TUBE ASSEMBLY,METAL Fits: All A0 and A1 models, plus M1121	1	95 in stock $25–$50 eachtypical
9	Metal Tube Assembly NSN 4710-01-186-9617 · P/N 12338549 TUBE ASSEMBLY,METAL Fits: All A0 models except M1097, plus M996A1, M997A1, M1121	2	2,946 in stock $48.99our price Buy online ↗
9	Metal Tube Assembly NSN 4710-01-186-9617 · P/N 12338549 TUBE ASSEMBLY,METAL Fits: All A1 models except M996A1, M997A1, plus M1097	1	2,946 in stock $48.99our price Buy online ↗
10	Mounting Plate NSN 5340-01-357-3996 · P/N 12342746 PLATE,MOUNTING Fits: All A1 models, plus M1097	1	35 in stock $86.00our price Buy online ↗
10	Fuel Tank Access Plate Assembly NSN 2910-01-184-2159 · P/N 12338567 PLATE ASSEMBLY,FUEL Fits: All A0 models except M1097, plus M1121	1	10 in stock $50–$90 eachtypical
11	Gasket NSN 5330-01-194-0473 · P/N 12338585 GASKET Fits: All A0 and A1 models, plus M1121	1	120 in stock $25–$40 eachtypical
12	Sediment Strainer Body NSN 4730-01-189-8854 · P/N 25055210 STRAINER BODY,SEDIM Fits: All A0 and A1 models, plus M1121	1	10 in stock $75–$130 eachtypical
13	Pipe to Tube Elbow NSN 4730-01-091-2809 · P/N 279NTA-8-6 ELBOW,PIPE TO TUBE Fits: All A0 and A1 models, plus M1121	1	70 in stock
14	Tank Assembly P/N 5582606 TANK ASSEMBLY Fits: All A0 and A1 models, plus M1121	1	Ask us
15	Protective Dust and Moistur Plug NSN 5340-01-244-5765 · P/N 5597286 PLUG,PROTECTIVE,DUS Fits: All A0 and A1 models, plus M1121	1	303 in stock $33.00our price Buy online ↗
16	Fuel Tank Retainer NSN 2910-01-186-6038 · P/N 5584341 RETAINER,FUEL TANK Fits: All A0 and A1 models, plus M1121	1	37 in stock $30–$65 eachtypical
17	O-Ring NSN 5331-01-477-3657 · P/N 12342933 O-RING Fits: All A0 and A1 models, plus M1121	12	28 in stock
18	Support Asst P/N 12342935 SUPPORT ASST,BAFFLE Fits: All A0 and A1 models, plus M1121	1	Ask us
19	Baffle Assy Fuel TA P/N 12342938 BAFFLE ASSY FUEL TA Fits: All A0 and A1 models, plus M1121	1	Ask us
20	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X .075 Fits: All A0 and A1 models, plus M1121	4	248 in stock
21	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-9 WASHER,FLAT 3/8 Fits: All A0 and A1 models, plus M1121	4	1,146 in stock $7.83our price Buy online ↗
22	Pipe to Tube Tee NSN 4730-01-119-6895 · P/N 272NTA-8-6 TEE,PIPE TO TUBE Fits: All A0 and A1 models, plus M1121	1	11 in stock $25–$40 eachtypical
23	Plain Hexagon Nut NSN 5310-00-761-0654 · P/N MS51967-9 NUT,PLAIN,HEXAGON Fits: All A0 and A1 models, plus M1121	2	12 in stock
24	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT Fits: All A0 and A1 models, plus M1121	1	6 in stock
25	Retaining Band NSN 5340-01-191-0748 · P/N 12338571 BAND,RETAINING BOTTOM FRONT Fits: All A0 and A1 models, plus M1121	1	13 in stock $50–$90 eachtypical
26	Retaining Band NSN 5340-01-191-0746 · P/N 5582412 BAND,RETAINING OUTER FRONT Fits: All A0 and A1 models, plus M1121	1	13 in stock $70–$115 eachtypical
27	Rubber Strip NSN 5330-01-187-5148 · P/N 12338557-2 RUBBER STRIP FRONT Fits: All A0 and A1 models, plus M1121	1	We can source it
28	Retaining Strap NSN 5340-01-190-5100 · P/N 12338574 STRAP,RETAINING BOTTOM REAR Fits: All A0 and A1 models, plus M1121	1	1 in stock $45–$90 eachtypical
29	Angle Bracket NSN 5340-01-193-0251 · P/N 12338575 BRACKET,ANGLE OUTER REAR Fits: All A0 and A1 models, plus M1121	1	4 in stock $50–$100 eachtypical
30	Rubber Strip NSN 5330-01-186-7757 · P/N 12338557-1 RUBBER STRIP REAR Fits: All A0 and A1 models, plus M1121	1	478 in stock
31	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: All A0 and A1 models, plus M1121	2	26 in stock
32	Retaining Band NSN 5340-01-186-9606 · P/N 12338568 BAND,RETAINING Fits: All A0 and A1 models, plus M1121	1	10 in stock $40–$80 eachtypical
33	Retaining Band NSN 5340-01-191-3526 · P/N 5582405 BAND,RETAINING Fits: All A0 and A1 models, plus M1121	1	42 in stock $75–$125 eachtypical
34	Cap Hexagon Head Screw NSN 5305-01-210-6251 · P/N 9425078 SCREW,CAP,HEXAGON H 3/8-16 X 1.62 Fits: All A0 and A1 models, plus M1121	2	We can source it

Buy the 6 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
