HMMWV Front Axle Differential and Geared Hub Vent Lines TM 9-2320-280-24P · Fig. 141

Every part in figure 141 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1002 Differential: 28 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

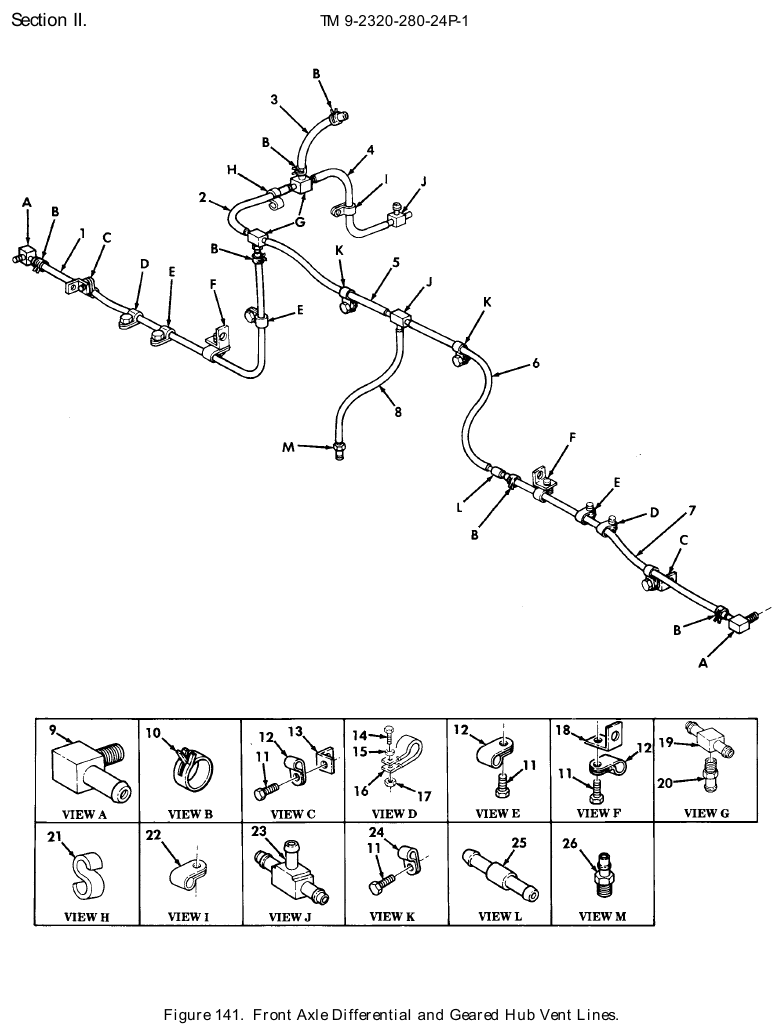

TM 9-2320-280-24P figure 141, Front Axle Differential and Geared Hub Vent Lines: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Hose P/N 12339981-9 HOSE,NONMETALLIC R.H. MAKE FROM HOSE,P/N RB1450-1-4IDX1-20D,34 INCHES LONG Fits: All A1 and A2 models, plus M1123	1	Ask us
1	Make From Hose Hose R.h. P/N 5584383 HOSE R.H.,MAKE FROM HOSE,P/N RB1450-1-4IDX1-20D,32 INCHES LONG Fits: All A0 models, plus M1121	1	Ask us
2	Tube Make From Tubing P/N 5582643 TUBE MAKE FROM TUBING,P/N CPR104420-1,15 INCHES LONG Fits: All models	1	Ask us
3	Hose Make From Hose P/N 5584372 HOSE MAKE FROM HOSE,P/N RB1450-1- 4IDX1-20D,8 INCHES LONG Fits: All models	1	Ask us
4	Tube Make From Tubing P/N CPR104420-1-4 TUBE MAKE FROM TUBING,P/N CPR104420-1,4 INCHES LONG Fits: All models	1	Ask us
5	Tube Make From Tubing P/N 5591483 TUBE MAKE FROM TUBING,P/N CPR104420-1,14 INCHES LONG Fits: All models	1	Ask us
6	Tube Make From Tubing P/N 5591482 TUBE MAKE FROM TUBING,P/N CPR104420-1,12 INCHES LONG Fits: All models	1	Ask us
7	Nonmetallic L.h. Hose P/N 5582649 HOSE,NONMETALLIC L.H.,MAKE FROM HOSE,P/N RB1450-1-4IDX1-20D,25 INCHES LONG Fits: All A0 models, plus M1121	1	Ask us
7	Hose L.h. P/N 12339981-8 HOSE L.H.,MAKE FROM HOSE P/N RB1450-1-4IDX1-20D,28 IN LONG Fits: All A1 and A2 models, plus M1123	1	Ask us
8	Tube Make From Tubing P/N 5584173 TUBE MAKE FROM TUBING,P/N CPR104420-1,8 INCHES LONG Fits: All models	1	Ask us
9	Pipe to Hose Elbow NSN 4730-01-200-4277 · P/N 1582 ELBOW,PIPE TO HOSE Fits: All models	2	6 in stock $16.17our price Buy online ↗
10	Hose Clamp NSN 4730-00-954-1251 · P/N UM5008 CLAMP,HOSE Fits: All models	6	4 in stock
11	Cap Socket Head Screw NSN 5305-00-051-8605 · P/N MS16995-77 SCREW,CAP,SOCKET HE 3/8-16 X 1/2 Fits: All models	9	We can source it
12	Loop Clamp NSN 2520-00-989-1771 · P/N MS21333-123 CLAMP,LOOP Fits: All models	7	1 in stock
13	Angle Bracket NSN 5340-01-300-3715 · P/N 5598208 BRACKET,ANGLE Fits: All models	2	We can source it
14	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H Fits: All A1 and A2 models, plus M1123	1	471 in stock
15	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All A1 and A2 models, plus M1123	2	2,325 in stock
16	Loop Clamp NSN 5340-01-460-5306 · P/N 12340571-2 CLAMP,LOOP Fits: All A1 and A2 models, plus M1123	2	We can source it
17	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE Fits: All A1 and A2 models, plus M1123	2	626 in stock
18	Angle Bracket NSN 5340-01-190-2248 · P/N 12338170 BRACKET,ANGLE Fits: All models	2	7 in stock
19	Pipe to Hose Tee NSN 4730-01-192-8086 · P/N 1077X4 TEE,PIPE TO HOSE Fits: All models	2	We can source it
20	Straight Pipe to Hose Adapter NSN 4730-01-004-8346 · P/N 1537 ADAPTER,STRAIGHT,PI Fits: All models	2	We can source it
21	Spring Tension Clip NSN 5340-01-187-0892 · P/N 12339890 CLIP,SPRING TENSION Fits: All A0 models, plus M1121	1	We can source it
22	Loop Clamp NSN 5340-00-067-3868 · P/N MS21333-109 CLAMP,LOOP FRONT Fits: All models	1	46 in stock
23	Hose Tee NSN 4730-01-003-5105 · P/N 1064X4 TEE,HOSE FRONT Fits: All models	2	5 in stock
24	Loop Clamp NSN 5340-00-050-9077 · P/N 406CD CLAMP,LOOP Fits: All models	2	We can source it
25	Hose Reducer NSN 4730-01-184-4760 · P/N 1062X6X4 REDUCER,HOSE FRONT Fits: All models	1	We can source it
26	Straight Pipe to Hose Adapter NSN 4730-01-185-5348 · P/N 1068X4 ADAPTER,STRAIGHT,PI FRONT Fits: All models	1	25 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
