HMMWV Front Knuckle and Geared Hub Assembly TM 9-2320-280-24P · Fig. 142

Every part in figure 142 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1004 Steering and Leaning Wheel Mechanism: 35 lines, 32 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

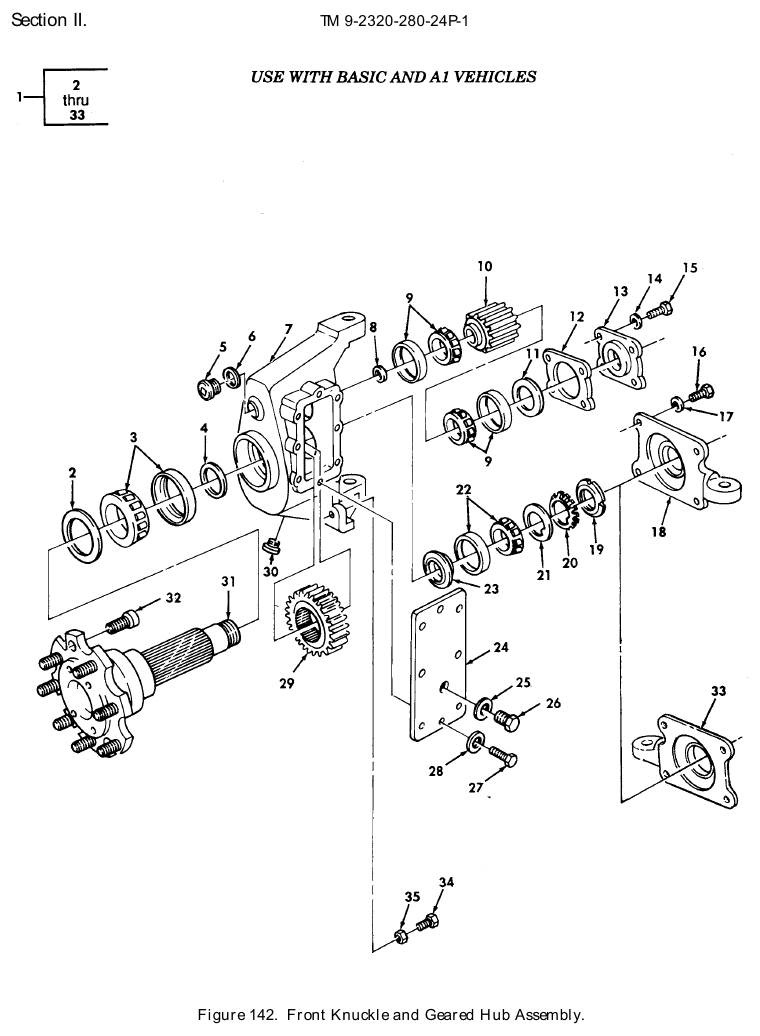

TM 9-2320-280-24P figure 142, Front Knuckle and Geared Hub Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Hub Assembly NSN 2530-01-203-5746 · P/N 5598767 SPINDLE,WHEEL,DRIVI L.H.,FOR R.H ASSEMBLY REPLACE ITEM 18 WITH ITEM 33 Fits: All A0 and A1 models, plus M1121	2	60 in stock $1,143.89our price Buy online ↗
2	Plain Encased Seal NSN 5330-01-203-6551 · P/N CR 535094-60 .SEAL,PLAIN ENCASED OUTER Fits: All A0 and A1 models, plus M1121	1	2,099 in stock $18.61our price Buy online ↗
3	Roller Tapered Bearing NSN 3110-00-100-5937 · P/N 5568228 BEARING,ROLLER,TAPE Fits: All A0 and A1 models, plus M1121	1	72 in stock $50–$100 eachtypical
4	Ring Spacer NSN 5365-01-174-8186 · P/N 5573989 SPACER,RING OUTER Fits: All A0 and A1 models, plus M1121	1	788 in stock $25–$40 eachtypical
5	Machine Thread Plug NSN 5365-00-277-7341 · P/N 453006 PLUG,MACHINE THREAD UPPER Fits: All A0 and A1 models, plus M1121	1	11 in stock $25–$40 eachtypical
6	Lock Washer NSN 5310-01-231-0596 · P/N 5573688 WASHER,LOCK UPPER Fits: All A0 and A1 models, plus M1121	1	103,766 in stock $9.80our price Buy online ↗
7	Knuckle and Gear P/N 5593993 KNUCKLE AND GEAR Fits: All A0 and A1 models, plus M1121	1	Ask us
8	Flat Washer NSN 5310-01-174-8632 · P/N 5568223 WASHER,FLAT 1-1/4 Fits: All A0 and A1 models, plus M1121	1	15 in stock
9	Roller Tapered Bearing NSN 3110-01-027-4475 · P/N 5568226 BEARING,ROLLER,TAPE UPPER Fits: All A0 and A1 models, plus M1121	2	1,352 in stock $55.00our price Buy online ↗
10	Spur Gear NSN 3020-01-174-5985 · P/N 5574921 GEAR,SPUR UPPER Fits: All A0 and A1 models, plus M1121	1	155 in stock $222.16 per eachgov't list price
11	Plain Encased Seal NSN 5330-01-456-3884 · P/N 534059 SEAL,PLAIN ENCASED Fits: All A0 and A1 models, plus M1121	1	1,360 in stock $16.00our price Buy online ↗
12	Gasket NSN 5330-01-176-0825 · P/N 5573692 GASKET 0.005 Fits: All A0 and A1 models, plus M1121	V	834 in stock
13	Retainer NSN 5340-01-174-8493 · P/N 5574002 RETAINER UPPER Fits: All A0 and A1 models, plus M1121	1	37 in stock $40–$75 eachtypical
14	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: All A0 and A1 models, plus M1121	4	1,146 in stock $7.83our price Buy online ↗
15	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: All A0 and A1 models, plus M1121	4	26 in stock
16	Cap Hexagon Head Screw NSN 5305-00-071-2067 · P/N B1821BH050C125N SCREW,CAP,HEXAGON H 1/2-13 X 1.25 Fits: All A0 and A1 models, plus M1121	4	296 in stock
17	Flat Washer NSN 5310-00-809-5998 · P/N MS27183-18 WASHER,FLAT 1/2 Fits: All A0 and A1 models, plus M1121	4	428 in stock $27.99our price Buy online ↗
18	Steering Arm Cover NSN 2530-01-203-5662 · P/N 5591280 COVER,STEERING ARM L.H Fits: All A0 and A1 models, plus M1121	1	67 in stock $60–$105 eachtypical
19	Plain Round Nut NSN 2530-01-382-5031 · P/N 12342680 NUT,PLAIN,ROUND 1-3/8 Fits: All A0 and A1 models, plus M1121	1	1,373 in stock
20	Key Washer NSN 5310-01-213-4185 · P/N 5584462 WASHER,KEY 1-3/8 Fits: All A0 and A1 models, plus M1121	1	807 in stock $25.99our price Buy online ↗
21	Key Washer NSN 5310-01-174-8607 · P/N 5573684 WASHER,KEY 1-3/8 Fits: All A0 and A1 models, plus M1121	1	1,081 in stock
22	Roller Tapered Bearing NSN 3110-00-100-5920 · P/N 5568227 BEARING,ROLLER,TAPE INNER Fits: All A0 and A1 and A2 models, plus M1123	1	1 in stock $75–$125 eachtypical
23	Sleeve Spacer NSN 5365-01-181-5085 · P/N 5584137 SPACER,SLEEVE Fits: All A0 and A1 models, plus M1121	1	5 in stock $25–$40 eachtypical
24	Access Cover NSN 5340-01-174-2271 · P/N 5574924 COVER,ACCESS Fits: All A0 and A1 models, plus M1121	1	35 in stock $40–$80 eachtypical
25	Flat Washer NSN 5310-01-176-0839 · P/N 5573687 WASHER,FLAT Fits: All A0 and A1 models, plus M1121	1	105,086 in stock $25.99our price Buy online ↗
26	Machine Thread Plug NSN 5365-01-177-5720 · P/N 5573690 PLUG,MACHINE THREAD Fits: All A0 and A1 models, plus M1121	1	We can source it
27	Assembled Washer Bolt NSN 5306-01-251-1616 · P/N 5593348 BOLT,ASSEMBLED WASH 5/16-18 X 5/8 Fits: All A0 and A1 models, plus M1121	8	We can source it
28	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: All A0 and A1 models, plus M1121	8	1,368 in stock
29	Spur Gear NSN 3020-01-174-5984 · P/N 12338723 GEAR,SPUR LOWER Fits: All A0 and A1 models, plus M1121	1	284 in stock $100.00our price Buy online ↗
30	Pipe Magnetic Plug NSN 4730-00-045-9769 · P/N MS49006-6 PLUG,PIPE,MAGNETIC 3/8-18 X .520 Fits: All A0 and A1 models, plus M1121	1	48 in stock quote only
31	Wheel Driving-Nondriving Spindle NSN 2520-01-174-4174 · P/N 5579061 SPINDLE,WHEEL,DRIVI Fits: All A0 and A1 models, plus M1121	1	149 in stock $408.00our price Buy online ↗
32	Self-Locking Stud NSN 5307-01-196-4937 · P/N 5568211 STUD,SELF-LOCKING 9/16-18 X 1.50 Fits: All A0 and A1 models, plus M1121	8	29 in stock
33	Steering Arm Cover NSN 2530-01-203-5663 · P/N 5591279 COVER,STEERING ARM R.H Fits: All A0 and A1 models, plus M1121	1	16 in stock $80–$135 eachtypical
34	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N B1821BH050C150N SCREW,CAP,HEXAGON H 1/2-13 X 1.50 Fits: All A0 and A1 models, plus M1121	2	2,205 in stock
35	Plain Hexagon Nut NSN 5310-01-272-9981 · P/N MS51471-01 NUT,PLAIN,HEXAGON 1/2-13 Fits: All A0 and A1 models, plus M1121	2	73 in stock

Buy the 11 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
