HMMWV Parking Brake Hand Lever and Cable TM 9-2320-280-24P · Fig. 153

Every part in figure 153 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 12 Brakes: 27 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

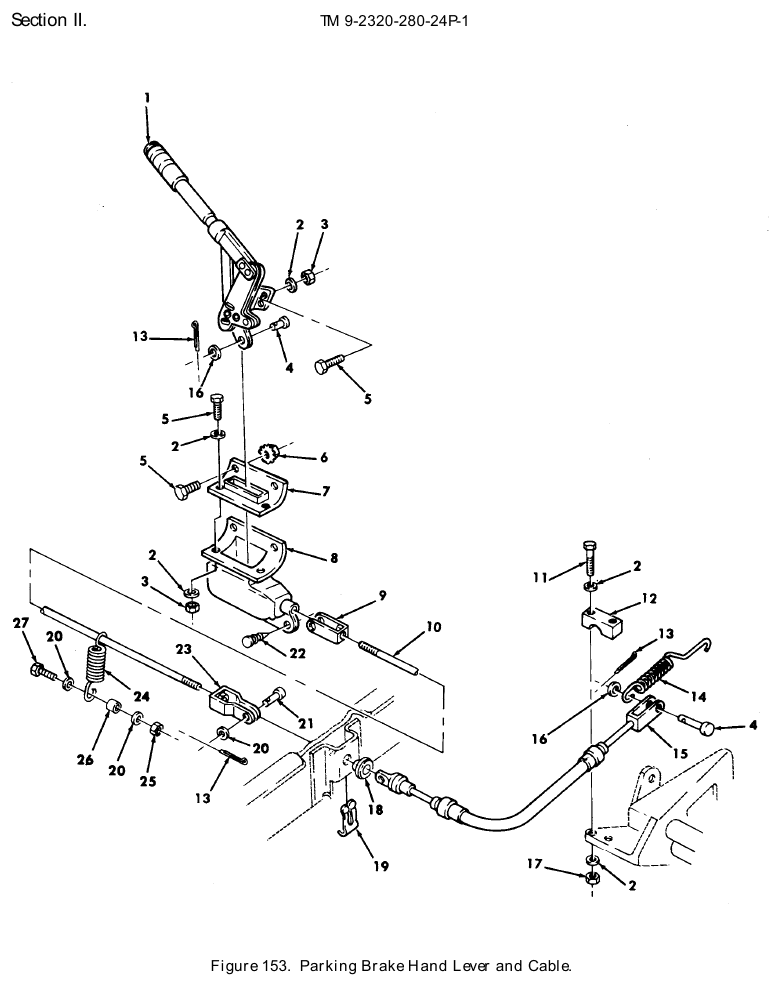

TM 9-2320-280-24P figure 153, Parking Brake Hand Lever and Cable: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Lock-Release Lever NSN 5340-01-380-4561 · P/N 12342679 LEVER,LOCK-RELEASE Fits: All models	1	59 in stock $199.99our price Buy online ↗
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All models	11	351 in stock
3	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	4	184 in stock
4	Straight Headed Pin NSN 5315-00-815-8840 · P/N MS35810-4 PIN,STRAIGHT,HEADED 3/8 X 1-1/16 Fits: All models	2	We can source it
5	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: All models	6	559 in stock
6	Self-Locking Nut NSN 5310-01-252-2999 · P/N 5593033 NUT,SELF-LOCKING,AS 1/4-20 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	1,286 in stock
7	Vehicular Components Boot NSN 2530-01-188-3520 · P/N 12338295 BOOT,VEHICULAR COMP UPPER Fits: All models	1	12 in stock
8	Vehicular Components Boot NSN 2530-01-188-8446 · P/N 12338291 BOOT,VEHICULAR COMP LOWER Fits: All models	1	163 in stock $25–$40 eachtypical
9	Rod End Clevis NSN 5340-01-213-5600 · P/N 95001418 CLEVIS,ROD END Fits: All models	1	We can source it $25–$40 eachtypical
10	Threaded End Rod NSN 5306-01-197-3277 · P/N 12338294 ROD,THREADED END USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	6 in stock $80–$135 eachtypical
11	Cap Hexagon Head Screw NSN 5305-00-071-2510 · P/N B1821BH025C175N SCREW,CAP,HEXAGON H 1/4-20 X 1.75, USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	We can source it
12	Block Section Clamp NSN 5340-01-358-9301 · P/N 12338867 CLAMP,BLOCK,SECTION USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	We can source it
13	Cotter Pin NSN 5315-00-842-3044 · P/N X601 PIN,COTTER 3/32 X 3/4,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	3	3,000 in stock
14	Helical Extension Spring NSN 5360-01-214-3695 · P/N 5590602 SPRING,HELICAL,EXTE USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	3 in stock $25–$40 eachtypical
15	Push-Pull Control Assembly NSN 2590-01-212-4955 · P/N 15480200 CONTROL ASSEMBLY,PU USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	393 in stock $65–$110 eachtypical
16	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	We can source it
17	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	626 in stock
18	Electrical Conductor Bushing NSN 5975-01-211-3142 · P/N SB-750-625-2840 BUSHING,ELECTRICAL USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	1,693 in stock
19	Spring Tension Clip NSN 5340-01-209-7807 · P/N 5588032 CLIP,SPRING TENSION USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	3 in stock $25–$55 eachtypical
20	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16-18,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	3	471 in stock
21	Straight Headed Pin NSN 5315-00-754-0848 · P/N MS35810-3 PIN,STRAIGHT,HEADED 5/16 X 5/16, USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	We can source it
22	Spring Tension Trim Fastener NSN 5325-01-197-3460 · P/N 354-280308-00-00 FASTENER,SPRING TEN USBL EFF 1 78 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	We can source it
23	Rod End Clevis NSN 5340-01-211-7562 · P/N 95001419 CLEVIS,ROD END USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	46 in stock $25–$55 eachtypical
24	Helical Extension Spring NSN 5360-01-260-0700 · P/N 5593978 SPRING,HELICAL,EXTE USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	26 in stock $25–$45 eachtypical
25	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	354 in stock
26	Sleeve Spacer NSN 5365-01-255-0965 · P/N 5596306 SPACER,SLEEVE USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	We can source it
27	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	276 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
