HMMWV Parking Brake Rod and Related Parts TM 9-2320-280-24P · Fig. 154

Every part in figure 154 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1201 Hand Brakes: 10 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

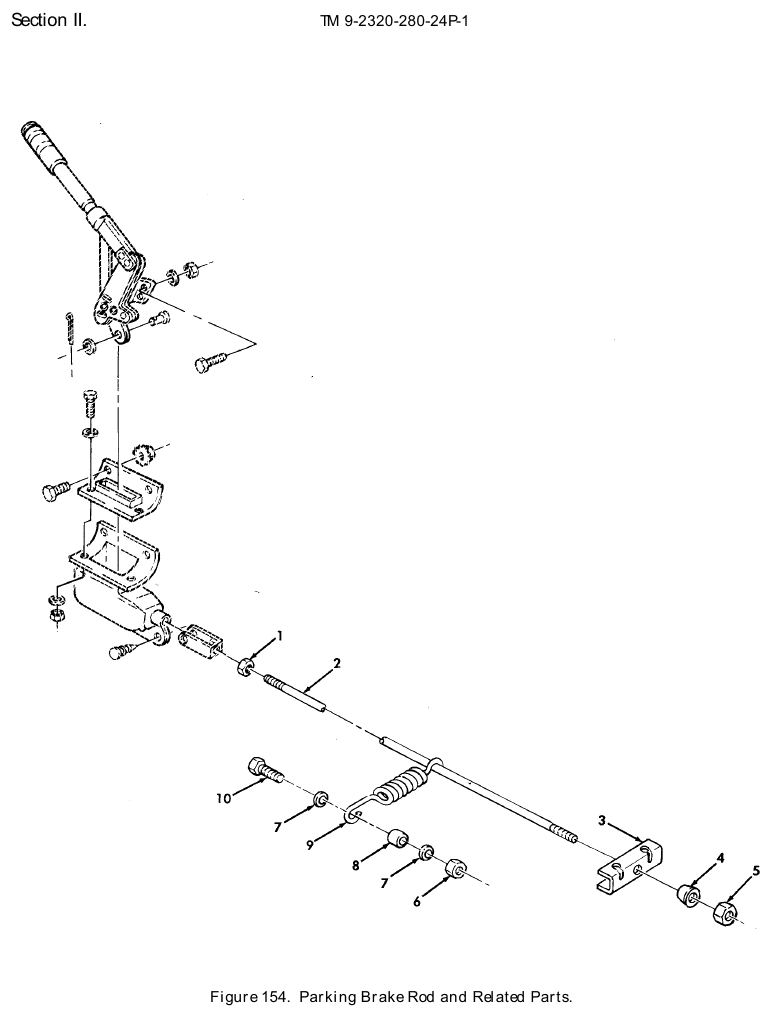

TM 9-2320-280-24P figure 154, Parking Brake Rod and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Hexagon Nut NSN 5310-01-102-7356 · P/N 9421077 NUT,PLAIN,HEXAGON 5/16-24,USBL EFF 44825 AND ABOVE Fits: All models	1	We can source it
2	Threaded End Rod NSN 5306-01-273-6333 · P/N 12341895 ROD,THREADED END USBL EFF 44825 AND ABOVE Fits: All models	1	93 in stock $30–$65 eachtypical
3	Brake Cable Bar NSN 2530-01-291-4597 · P/N 5597334 BAR,BRAKE CABLE USBL EFF 44825 AND ABOVE Fits: All models	1	18 in stock
4	Convex Washer NSN 5310-01-289-5455 · P/N 12341897 WASHER,CONVEX 5/16,USBL EFF 44825 AND ABOVE Fits: All models	1	11 in stock
5	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24,USBL EFF 44825 AND ABOVE Fits: All models	1	904 in stock
6	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18,USBL EFF 44825 AND ABOVE Fits: All models	1	354 in stock
7	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16,USBL EFF 44825 AND ABOVE Fits: All models	2	1,368 in stock
8	Sleeve Spacer NSN 5365-01-255-0965 · P/N 5596306 SPACER,SLEEVE USBL EFF 44825 AND ABOVE Fits: All models	1	We can source it
9	Helical Extension Spring NSN 5360-01-260-0700 · P/N SP-067-500-24540 SPRING,HELICAL,EXTE USBL EFF 44825 SS-E AND ABOVE Fits: All models	1	26 in stock $25–$45 eachtypical
10	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00,USBL EFF 44825 AND ABOVE Fits: All models	1	276 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
