HMMWV Parking Brake Caliper, Rotor, and Mounting Hardware TM 9-2320-280-24P · Fig. 156

Every part in figure 156 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1201 Hand Brakes: 22 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

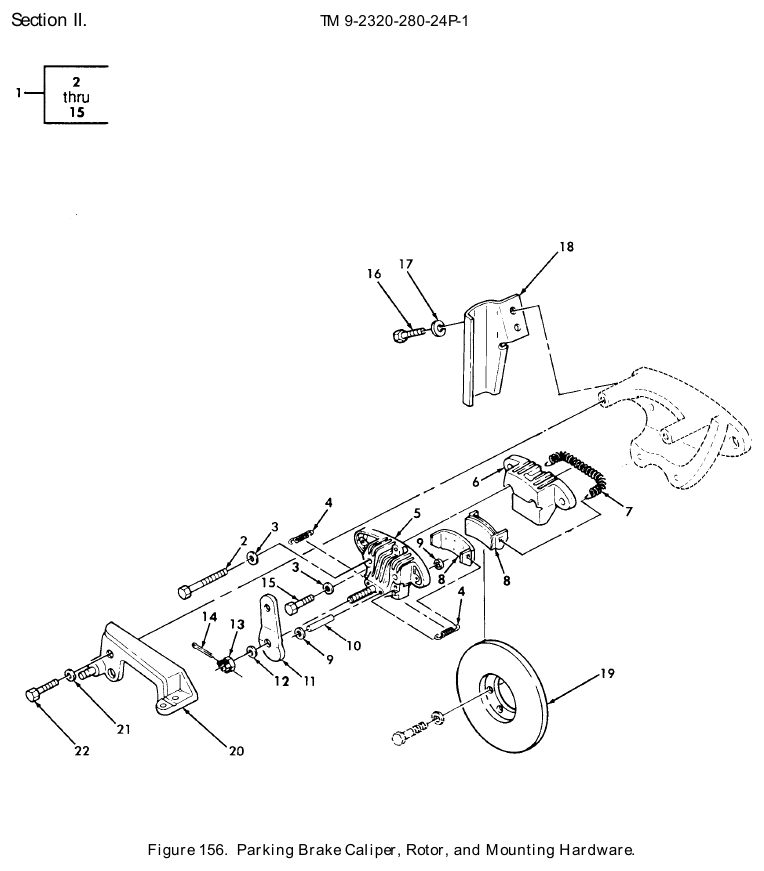

TM 9-2320-280-24P figure 156, Parking Brake Caliper, Rotor, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Disc Brake Caliper NSN 2530-01-174-7441 · P/N D00-09102 CALIPER,DISC BRAKE USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	57 in stock $482.29 per assemblygov't list price
2	Cap Hexagon Head Screw NSN 5305-01-185-4628 · P/N 5740912 SCREW,CAP,HEXAGON H 3/8-16 X 3.50, USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	We can source it
3	Flat Washer NSN 5310-01-477-0828 · P/N A03-002204 WASHER,FLAT 3/8,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	3	We can source it $25–$45 eachtypical
4	Helical Spring NSN 5360-01-265-9116 · P/N 5593847 SPRING,HELICAL,EXTE USBL EFF 1 THRU 44824 PART OF KIT P/N A98-09439 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	We can source it
5	Side Inner Cam P/N 5740910 CAM,SIDE INNER,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	Ask us
6	Side Outer Cam P/N 5740911 CAM,SIDE OUTER,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	Ask us
7	Helical Extension Spring NSN 5360-01-185-8809 · P/N 5740909 SPRING,HELICAL,EXTE USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	We can source it
8	Disc P/N 5740908 DISC,BRAKE USBL EFF 1 THRU 44824 PART OF KIT P/N A98-09439 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	Ask us
9	Gasket NSN 5330-01-211-1343 · P/N 5741141 GASKET USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	4	2 in stock
10	Straight Headless Pin NSN 5315-01-290-3327 · P/N 5740913 PIN,STRAIGHT,HEADLE USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	15 in stock $354.01 per eachgov't list price
11	Control Cam NSN 3040-01-465-3178 · P/N 5590540 BELL CRANK USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	We can source it quote only $50–$90 eachtypical
12	Flat Washer NSN 5310-01-185-8691 · P/N 5740916 WASHER,FLAT 1/2,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	We can source it $60–$100 eachtypical
13	Sleeve Nut NSN 5310-01-186-5420 · P/N A02-08052 NUT,SLEEVE USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	We can source it $160.94 per eachgov't list price
14	Cotter Pin NSN 5315-00-013-7228 · P/N MS24665-423 PIN,COTTER USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	We can source it
15	Cap Hexagon Head Screw NSN 5305-01-185-8673 · P/N 5740919 SCREW,CAP,HEXAGON H 3/8-16 X 1.75, USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	We can source it
16	Cap Hexagon Head Screw NSN 5305-00-071-2506 · P/N B1821BH025C050N SCREW,CAP,HEXAGON H 1/4-20 X 1/2, USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	300 in stock
17	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4, USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	4,285 in stock
18	Brake Disk Shield NSN 2530-01-187-7161 · P/N 12338290 SHIELD,BRAKE DISK USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	4 in stock $2,382.37 per eachgov't list price
19	Disc Brake Rotor NSN 2530-01-184-9821 · P/N 5577659 ROTOR,DISC BRAKE USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	118 in stock $50–$95 eachtypical
20	Vehicular Components Bracket NSN 2590-01-187-7039 · P/N 5590530 BRACKET,VEHICULAR C USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	1	1 in stock $1,044.53 per eachgov't list price
21	Lock Washer NSN 5310-00-584-5272 · P/N MS35338-48 WASHER,LOCK 1/2,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	833 in stock
22	Cap Hexagon Head Screw NSN 5305-00-915-8087 · P/N B1821BH050C125D SCREW,CAP,HEXAGON H 1/2-13 X 1.25, USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	125 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
