HMMWV Parking Brake Cables and Mounting Hardware TM 9-2320-280-24P · Fig. 155

Every part in figure 155 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1201 Hand Brakes: 20 lines, 16 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

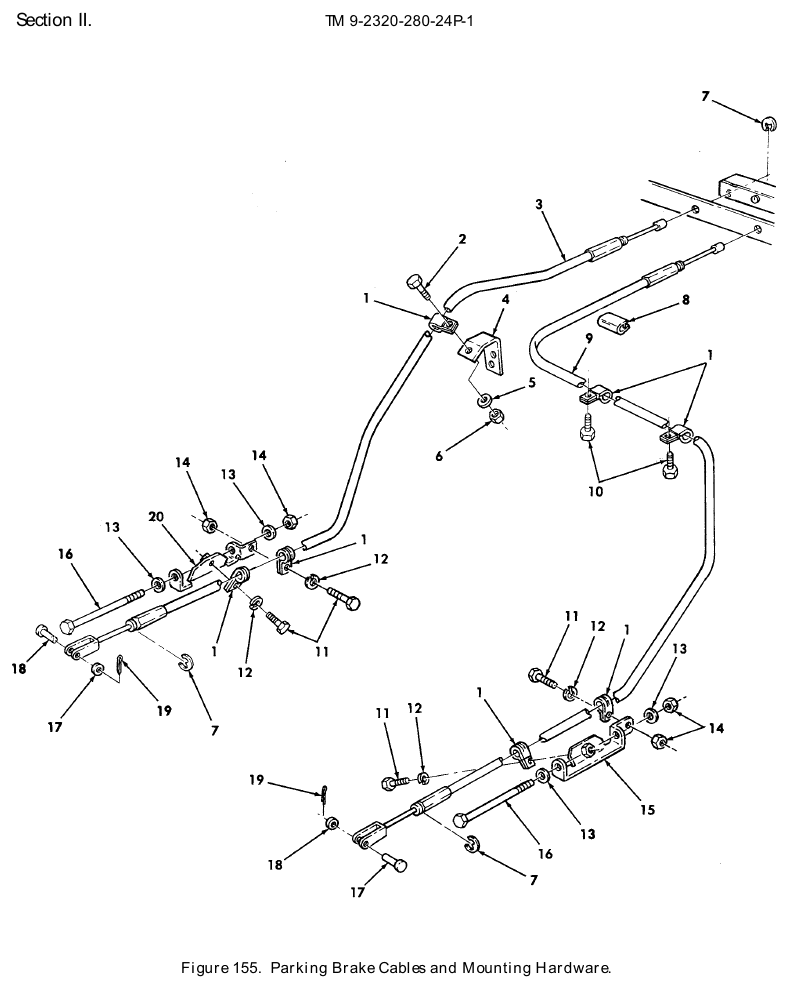

TM 9-2320-280-24P figure 155, Parking Brake Cables and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Loop Clamp NSN 5340-00-088-1254 · P/N MS21333-104 CLAMP,LOOP USBL EFF 44825 AND ABOVE Fits: All models	7	40 in stock
2	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4, USBL EFF 44825 AND ABOVE Fits: All models	1	471 in stock
3	Push-Pull Control Assembly NSN 2590-01-265-3185 · P/N 15541800 CONTROL ASSEMBLY,PU L.H.,USBL EFF 44825 AND ABOVE Fits: All models	1	132 in stock $58.99our price Buy online ↗
4	Double Angle Bracket NSN 5340-01-277-4427 · P/N 5597360 BRACKET,DOUBLE ANGL USBL EFF 44825 AND ABOVE Fits: All models	1	27 in stock $25–$40 eachtypical
5	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4,USBL EFF 44825 AND ABOVE Fits: All models	1	2,325 in stock
6	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20,USBL EFF 44825 AND ABOVE Fits: All models	1	570 in stock
7	Retaining Ring NSN 5325-00-850-1425 · P/N MS16633-2050 RING,RETAINING USBL EFF 44825 AND ABOVE Fits: All models	4	We can source it
8	Edge Protector NSN 5342-01-274-9884 · P/N 5597890 BUMPER,SPECIAL USBL EFF 44825 AMD ABOVE Fits: All models	1	We can source it
9	Push-Pull Control Assembly NSN 2590-01-323-5153 · P/N 15541802 CONTROL ASSEMBLY,PU R.H.,USBL EFF 44825 AND ABOVE Fits: All models	1	627 in stock $70–$115 eachtypical
10	Tapping Screw NSN 5305-01-264-5809 · P/N 12342499-2 SCREW,TAPPING THREA #10-32 X .62, USBL EFF 44825 AND ABOVE Fits: All models	2	3,978 in stock
11	Cap Hexagon Head Screw NSN 5305-00-068-7837 · P/N B1821BH025C063N SCREW,CAP,HEXAGON H 1/4-20 X 5/8, USBL EFF 44825 AND ABOVE Fits: All models	4	98 in stock
12	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4,USBL EFF 44825 AND ABOVE Fits: All models	4	4,285 in stock
13	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4,USBL EFF 44825 AND ABOVE Fits: All models	4	351 in stock
14	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4-20 USBL EFF 44825 AND ABOVE Fits: All models	4	184 in stock
15	Mounting Bracket NSN 5340-01-394-2408 · P/N 12342965 BRACKET,MOUNTING R.H. USBL EFF 44825 AND ABOVE Fits: All models	1	36 in stock $80–$135 eachtypical
16	Cap Hexagon Head Screw NSN 5305-01-202-2676 · P/N B1821BH025C450N SCREW,CAP,HEXAGON H 1/4-20 X 4.50, USBL EFF 44825 AND ABOVE Fits: All models	2	60 in stock
17	Straight Headed Pin NSN 5315-00-815-8840 · P/N MS35810-4 PIN,STRAIGHT,HEADED USBL EFF 44825 AND ABOVE Fits: All models	2	We can source it
18	Flat Washer NSN 5310-01-205-7923 · P/N 5593213 WASHER,FLAT 3/8,USBL EFF 44825 AND ABOVE Fits: All models	2	We can source it
19	Cotter Pin NSN 5315-00-842-3044 · P/N MS24665-283 PIN,COTTER USBL EFF 44825 AND ABOVE Fits: All models	2	3,000 in stock
20	Mounting Bracket NSN 5340-01-394-8496 · P/N 12342966 BRACKET,MOUNTING L.H. USBL EFF 44825 AND ABOVE Fits: All models	1	1 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
