HMMWV Front Service Brake Lines and Proportioning Valve TM 9-2320-280-24P · Fig. 160

Every part in figure 160 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1204 Hydraulic Brake System: 25 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

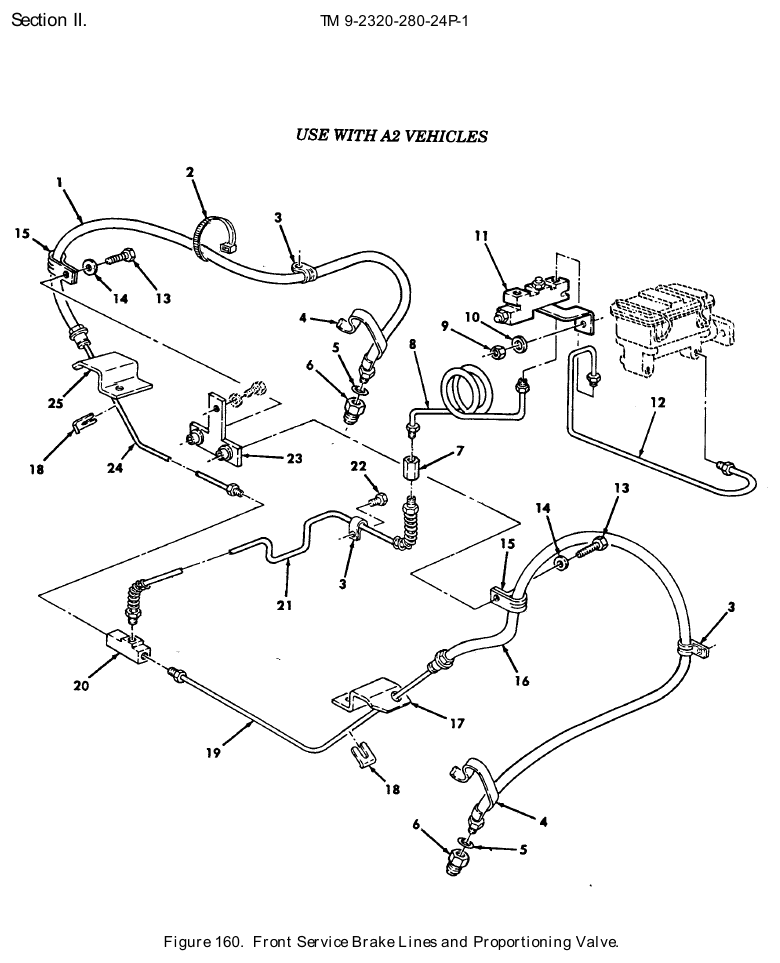

TM 9-2320-280-24P figure 160, Front Service Brake Lines and Proportioning Valve: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Hose Assembly NSN 4720-01-442-9875 · P/N RCSK18434-2 HOSE ASSEMBLY,NONME R.H Fits: All A2 models, plus M1123	1	1 in stock $50–$95 eachtypical
2	Tie Down Electrical Compon Strap NSN 5975-00-984-6582 · P/N MS3367-1-0 STRAP,TIEDOWN,ELECT Fits: All A2 models, plus M1123	1	253 in stock
3	Loop Clamp NSN 5340-00-954-6014 · P/N MS21333-121 CLAMP,LOOP Fits: All A2 models, plus M1123	1	215 in stock
4	Protective Coating Make From P/N RCSK17805 PROTECTIVE COATING MAKE FROM TUBING,P/N B47287-II-1/2,LENGTH TO SUIT Fits: All A2 models, plus M1123	1	Ask us
5	Flat Washer NSN 5310-01-189-8476 · P/N 5582366 WASHER,FLAT 25/64 Fits: All A2 models, plus M1123	2	22 in stock
6	Tube Coupling NSN 4730-01-184-6971 · P/N 12339235 COUPLING,TUBE Fits: All A2 models, plus M1123	2	554 in stock $24.49our price Buy online ↗
7	Hose Coupling NSN 4730-01-457-0727 · P/N 442393 COUPLING,HOSE Fits: All A2 models, plus M1123	1	We can source it
8	Metal Tube Assembly NSN 4710-01-185-9667 · P/N 5584146 TUBE ASSEMBLY,METAL Fits: All A2 models, plus M1123	1	419 in stock $35–$75 eachtypical
9	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE Fits: All A2 models, plus M1123	1	219 in stock
10	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT Fits: All A2 models, plus M1123	1	We can source it
11	Regulating Fluid Pressure Valve NSN 4820-01-359-9489 · P/N 12339353-1 VALVE,REGULATING,FL Fits: All A2 models, plus M1123	2	3 in stock $289.10our price Buy online ↗
12	Metal Tube Assembly NSN 4710-01-358-1943 · P/N 12342900 TUBE ASSEMBLY,METAL Fits: All A2 models, plus M1123	1	1,517 in stock $25–$40 eachtypical
13	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1.13 Fits: All A2 models, plus M1123	2	84,127 in stock
14	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT Fits: All A2 models, plus M1123	2	1,368 in stock
15	Loop Clamp NSN 5340-00-057-3043 · P/N MS21333-112 CLAMP,LOOP Fits: All A2 models, plus M1123	2	6,753 in stock
16	Nonmetallic Hose Assembly NSN 4720-01-443-3033 · P/N RCSK18434-3 HOSE ASSEMBLY,NONME L.H Fits: All A2 models, plus M1123	1	139 in stock $45–$90 eachtypical
17	Multiple Angle Bracket NSN 5340-01-434-8109 · P/N EX4228-2 BRACKET,MULTIPLE AN L.H Fits: All A2 models, plus M1123	1	We can source it $35–$65 eachtypical
18	Hand Brake Cab Clip NSN 5340-00-678-1753 · P/N 7331407 CLIP,HAND BRAKE CAB Fits: All A2 models, plus M1123	2	35 in stock
19	Metal Tube Assembly NSN 4710-01-434-3151 · P/N EX4231-3 TUBE ASSEMBLY,METAL L.H Fits: All A2 models, plus M1123	1	We can source it $25–$45 eachtypical
20	Tube Tee NSN 4730-00-287-1706 · P/N 178654 TEE,TUBE Fits: All A2 models, plus M1123	1	5 in stock
21	Metal Tube Assembly NSN 4710-01-434-3037 · P/N EX4233 TUBE ASSEMBLY,METAL Fits: All A2 models, plus M1123	1	2 in stock $75–$125 eachtypical
22	Tapping Screw NSN 5305-01-393-6311 · P/N 271153 SCREW,TAPPING Fits: All A2 models, plus M1123	1	We can source it
23	T Bracket NSN 5340-01-458-8236 · P/N EX4718 BRACKET,T Fits: All A2 models, plus M1123	1	We can source it $25–$55 eachtypical
24	Metal Tube Assembly NSN 4710-01-434-3157 · P/N EX4231-4 TUBE ASSEMBLY,METAL R.H Fits: All A2 models, plus M1123	1	820 in stock
25	Multiple Angle Bracket NSN 5340-01-432-8681 · P/N EX4228-1 BRACKET,MULTIPLE AN R.H Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
