HMMWV Rear Brake Lines and Fittings TM 9-2320-280-24P · Fig. 161

Every part in figure 161 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1204 Hydraulic Brake System: 15 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

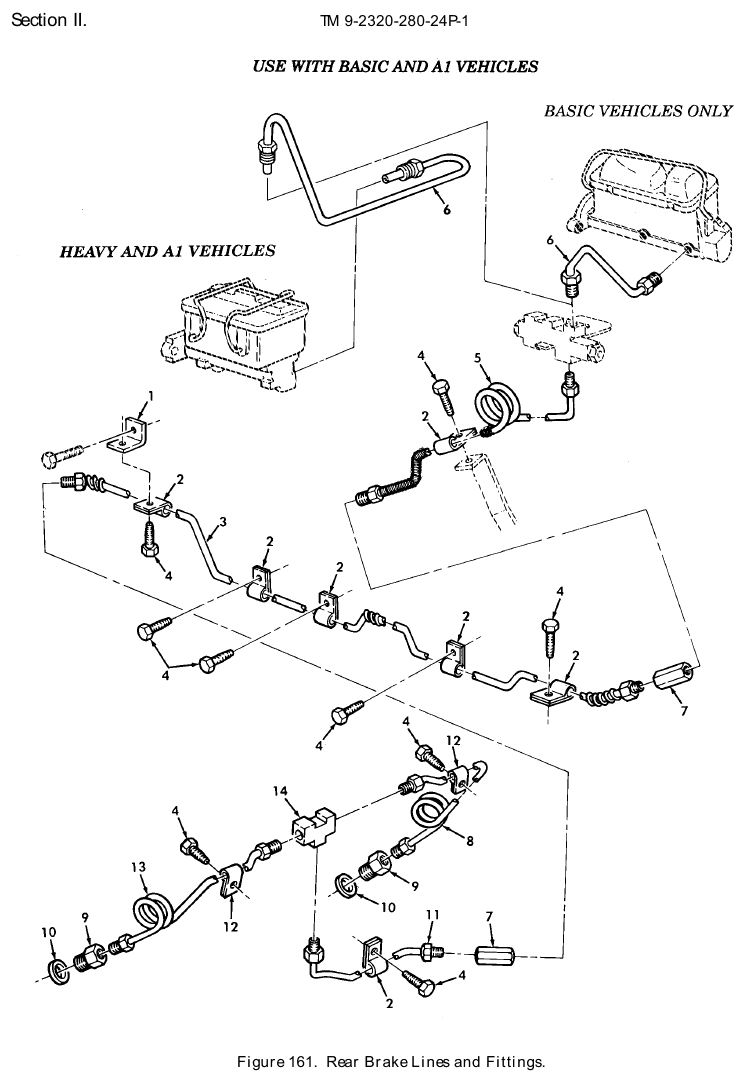

TM 9-2320-280-24P figure 161, Rear Brake Lines and Fittings: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Angle Bracket NSN 5340-01-209-7796 · P/N 12338302 BRACKET,ANGLE Fits: All A0 and A1 models, plus M1121	1	We can source it
2	Loop Clamp NSN 5340-01-189-7640 · P/N 179148 CLAMP,LOOP REAR Fits: All A0 and A1 models, plus M1121	7	298 in stock
3	Metal Tube Assembly NSN 4710-01-189-2209 · P/N 12338308 TUBE ASSEMBLY,METAL Fits: All A0 and A1 models, plus M1121	1	We can source it $30–$70 eachtypical
4	Cap Socket Head Screw NSN 5305-00-051-8605 · P/N MS16995-77 SCREW,CAP,SOCKET HE 3/8-16 X 1/2 Fits: All A0 and A1 models, plus M1121	9	We can source it
5	Metal Tube Assembly NSN 4710-01-186-9620 · P/N 12338307 TUBE ASSEMBLY,METAL Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$55 eachtypical
6	Metal Tube Assembly NSN 4710-01-357-9968 · P/N 12342901 TUBE ASSEMBLY,METAL Fits: All A1 models, plus M1097	1	2,476 in stock $24.99our price Buy online ↗
6	Metal Tube Assembly NSN 4710-01-185-9665 · P/N 12338300 TUBE ASSEMBLY,METAL Fits: All A0 models except M1097, plus M1121	1	378 in stock $25–$40 eachtypical
7	Hose Coupling NSN 4730-01-457-0727 · P/N 442393 COUPLING,HOSE REAR Fits: All A0 and A1 models, plus M1121	2	We can source it
8	Metal Tube Assembly NSN 4710-01-185-8329 · P/N 12338305 TUBE ASSEMBLY,METAL REAR,LH Fits: All A0 and A1 models, plus M1121	1	2 in stock
9	Tube Coupling NSN 4730-01-184-6971 · P/N 112-06136 COUPLING,TUBE Fits: All A0 and A1 models, plus M1121	2	554 in stock $24.49our price Buy online ↗
10	Flat Washer NSN 5310-01-189-8476 · P/N 5582366 WASHER,FLAT 25/64 Fits: All A0 and A1 models, plus M1121	2	22 in stock
11	Metal Tube Assembly NSN 4710-01-189-2208 · P/N 12338304 TUBE ASSEMBLY,METAL Fits: All A0 and A1 models, plus M1121	1	258 in stock $25–$40 eachtypical
12	Loop Clamp NSN 5340-00-954-6014 · P/N MS21333-121 CLAMP,LOOP REAR Fits: All A0 and A1 models, plus M1121	2	215 in stock
13	Metal Tube Assembly NSN 4710-01-185-8328 · P/N 12338298 TUBE ASSEMBLY,METAL REAR,RH Fits: All A0 and A1 models, plus M1121	1	224 in stock
14	Tube Tee NSN 4730-00-287-1706 · P/N 178654 TEE,TUBE REAR Fits: All A0 and A1 models, plus M1121	1	5 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
