HMMWV Front Bumper and Lifting Shackle, Winch TM 9-2320-280-24P · Fig. 187

Every part in figure 187 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1501 Frame Assembly: 23 lines, 20 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

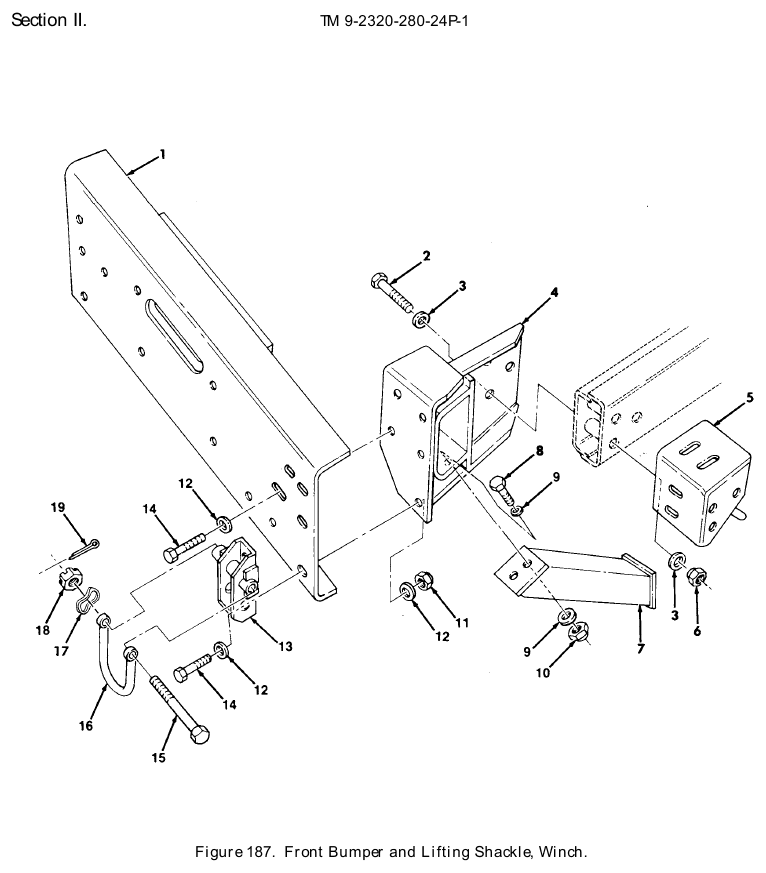

TM 9-2320-280-24P figure 187, Front Bumper and Lifting Shackle, Winch: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Bumper NSN 2540-01-361-8206 · P/N 12342395 BUMPER,VEHICULAR USBL EFF 100,000 AND ABOVE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	66 in stock $125.00our price Buy online ↗
1	Vehicular Bumper NSN 2540-01-185-3197 · P/N 12338482 BUMPER,VEHICULAR USBL EFF 1 THRU 99,999 Fits: M1026, M1038, M1042, M1044, M1046, M1121	1	4 in stock $270.40 per eachgov't list price
2	Cap Hexagon Head Screw NSN 5305-01-111-2774 · P/N 9428039 SCREW,CAP,HEXAGON H 5/8-11 X 3.75 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	6	We can source it
3	Flat Washer NSN 5310-01-151-7347 · P/N 2436167 WASHER,FLAT 5/8 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	12	We can source it
4	Structural Vehicul Frame Section NSN 2510-01-357-8789 · P/N 12342388 FRAME SECTION,STRUC R.H Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	2 in stock quote only $90–$150 eachtypical
4	Structural Vehicul Frame Section NSN 2510-01-358-1178 · P/N 12342387 FRAME SECTION,STRUC L.H Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	2 in stock $115.60 per eachgov't list price
5	Bumper Mounting Bracket NSN 2540-01-186-0501 · P/N 12338199 BRACKET,BUMPER MOUN FRONT Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	6 in stock $60–$100 eachtypical
6	Self-Locking Hexagon Nut NSN 5310-00-061-4651 · P/N 12387349-43 NUT,SELF-LOCKING,HE 5/8-11 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	6	256 in stock
7	Structural Vehicul Frame Section NSN 2510-01-358-1176 · P/N 12342389 FRAME SECTION,STRUC L.H.,USBL EFF 100,000 AND ABOVE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	2 in stock $40–$75 eachtypical
7	Structural Vehicul Frame Section NSN 2510-01-358-1177 · P/N 12342390 FRAME SECTION,STRUC R.H.,USBL EFF 100,000 AND ABOVE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	1	1 in stock $55–$105 eachtypical
8	Cap Hexagon Head Screw NSN 5305-01-104-4846 · P/N 9427321 SCREW,CAP,HEXAGON H 3/8-16 X 1.00 , USBL EFF 100,000 AND ABOVE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	4	We can source it
9	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8, USBL EFF 100,000 AND ABOVE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	8	1,146 in stock $7.83our price Buy online ↗
10	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16, USBL EFF 100,000 AND ABOVE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	4	219 in stock
11	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13, USBL EFF 100,000 AND ABOVE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	10	1,713 in stock
12	Flat Washer NSN 5310-01-121-1703 · P/N 2436165 WASHER,FLAT 1/2, USBL EFF 100,000 AND ABOVE Fits: M998, M1026, M1026A1, M1038A1, M1042, M1044 and 3 more	18	2,218 in stock
12	Flat Washer NSN 5310-01-253-8948 · P/N 5593320 WASHER,FLAT 1/2, USBL EFF 1 THRU 99,999 Fits: M1026, M1038, M1042, M1044, M1046	16	7 in stock
13	Vehicular Components Bracket NSN 2590-01-316-0084 · P/N 12342404 BRACKET,VEHICULAR C Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	13 in stock $85–$140 eachtypical
14	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N B1821BH050C150N SCREW,CAP,HEXAGON H 1/2-13 X 1.50, USBL EFF 100,000 AND ABOVE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	10	2,205 in stock
15	Cap Hexagon Head Screw NSN 5305-01-264-3602 · P/N 12338225-1 SCREW,CAP,HEXAGON H 5/8-18 X 5.50 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	69 in stock
16	Shackle NSN 4030-01-316-1551 · P/N 12342354 SHACKLE Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	94 in stock $53.00our price Buy online ↗
17	Spring Tension Washer NSN 5310-00-595-7486 · P/N 10-40704-22 WASHER,SPRING,TENSI 49/64 I.D Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	9 in stock
18	Plain Slotted Hexagon Nut NSN 5310-00-850-7004 · P/N MS35692-54 NUT,PLAIN,SLOTTED,H 5/8-18 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	8,940 in stock
19	Cotter Pin NSN 5315-00-012-0123 · P/N MS24665-355 PIN,COTTER 1/8 X 1.25 Fits: M1026, M1026A1, M1038, M1038A1, M1042, M1044 and 3 more	2	955 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
