HMMWV Front Bumper and Lifting Shackle TM 9-2320-280-24P · Fig. 186

Every part in figure 186 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1501 Frame Assembly: 16 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

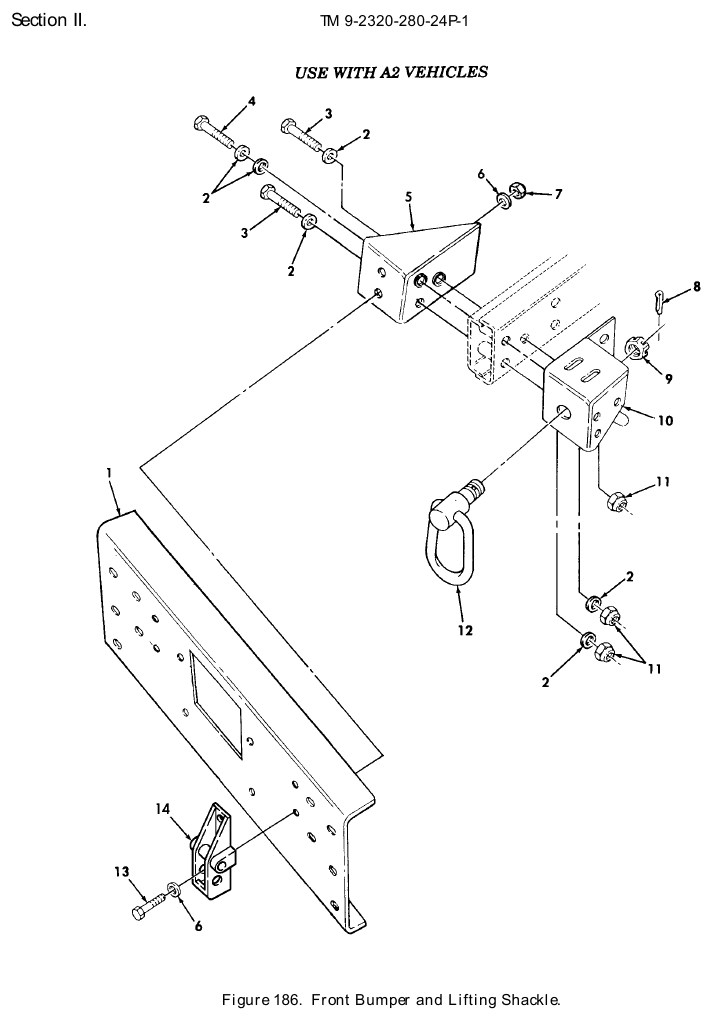

TM 9-2320-280-24P figure 186, Front Bumper and Lifting Shackle: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Bumper NSN 2540-01-412-8610 · P/N 12447091 BUMPER,VEHICULAR FRONT Fits: All A2 models, plus M1123	1	6 in stock $122.50our price Buy online ↗
2	Flat Washer NSN 5310-01-121-1703 · P/N 2436165 WASHER,FLAT Fits: All A2 models, plus M1123	12	2,218 in stock
3	Cap Hexagon Head Screw NSN 5305-00-724-7254 · P/N B1821BH063C400N SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	6	210 in stock
4	Cap Hexagon Head Screw NSN 5305-00-724-7248 · P/N B1821BH063C375N SCREW,CAP,HEXAGON H 5/8-11 X 3.75 Fits: All A2 models, plus M1123	2	We can source it
5	Vehicular Components Bracket NSN 2590-01-412-9570 · P/N 12447100 BRACKET,VEHICULAR C FRONT,R.H Fits: All A2 models, plus M1123	1	We can source it $55–$100 eachtypical
5	Vehicular Components Bracket NSN 2590-01-412-3862 · P/N 12447101 BRACKET,VEHICULAR C FRONT,L.H Fits: All A2 models, plus M1123	1	We can source it $65–$110 eachtypical
6	Flat Washer NSN 5310-01-121-1703 · P/N 23100143-001 WASHER,FLAT 1/2 Fits: All A2 models, plus M1123	8	2,218 in stock
7	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All A2 models, plus M1123	4	1,713 in stock
8	Cotter Pin NSN 5315-00-239-8032 · P/N MS24665-513 PIN,COTTER FRONT,1/8 X 1.25 Fits: All A2 models, plus M1123	2	100 in stock
9	Plain Slotted Hexagon Nut NSN 5310-00-850-6993 · P/N MS35692-62 NUT,PLAIN,CASTELLAT 5/8-18 Fits: All A2 models, plus M1123	2	272 in stock $10.89our price Buy online ↗
10	Vehicular Components Bracket NSN 2590-01-412-9560 · P/N 12447093 BRACKET,VEHICULAR C OUTER FRONT, L.H Fits: All A2 models, plus M1123	1	1 in stock $457.01 per eachgov't list price
10	Vehicular Components Bracket NSN 2590-01-412-7564 · P/N 12447092 BRACKET,VEHICULAR C OUTER FRONT, R.H Fits: All A2 models, plus M1123	1	We can source it $457.01 per eachgov't list price
11	Self-Locking Hexagon Nut NSN 5310-00-061-4651 · P/N 12387349-43 NUT,SELF-LOCKING,HE 5/8-11 Fits: All A2 models, plus M1123	6	256 in stock
12	Rod End Connector NSN 5340-01-413-0282 · P/N 12447089-1 CONNECTOR,ROD END FRONT Fits: All A2 models, plus M1123	2	We can source it $85–$140 eachtypical
13	Cap Hexagon Head Screw NSN 5305-00-071-2070 · P/N B1821BH050C175N SCREW,CAP,HEXAGON H 1/2-13 X 1.75 Fits: All A2 models, plus M1123	4	4,200 in stock $52.99our price Buy online ↗
14	Vehicular Components Bracket NSN 2590-01-316-0084 · P/N 12342404 BRACKET,VEHICULAR C Fits: All A2 models, plus M1123	2	13 in stock $85–$140 eachtypical

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
