HMMWV Brake Protection Guard (Front) TM 9-2320-280-24P · Fig. 189

Every part in figure 189 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1501 Frame Assembly: 11 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

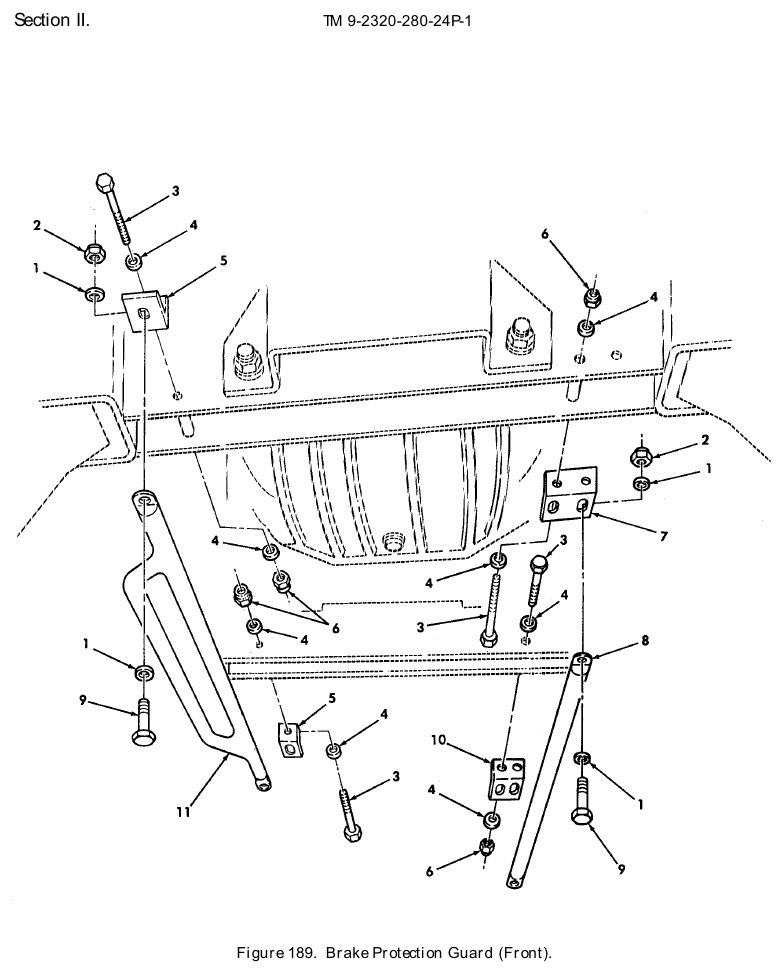

TM 9-2320-280-24P figure 189, Brake Protection Guard (Front): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: All A2 models, plus M1123	12	1,146 in stock $7.83our price Buy online ↗
2	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: All A2 models, plus M1123	6	219 in stock
3	Machine Bolt NSN 5306-00-226-4838 · P/N B1821BH031C325N BOLT,MACHINE 5/16-18 X 3.25 Fits: All A2 models, plus M1123	6	We can source it
4	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: All A2 models, plus M1123	12	1,368 in stock
5	Angle Bracket NSN 5340-01-432-4870 · P/N 6002345 BRACKET,ANGLE L.H. FRONT AND REAR Fits: All A2 models, plus M1123	2	We can source it
6	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: All A2 models, plus M1123	6	354 in stock
7	Angle Bracket NSN 5340-01-434-2832 · P/N 6002344 BRACKET,ANGLE R.H. FRONT Fits: All A2 models, plus M1123	1	We can source it
8	Brush Vehicular Guard NSN 2540-01-432-9894 · P/N 6002347 GUARD,BRUSH,VEHICUL R.H. FRONT Fits: All A2 models, plus M1123	2	We can source it $40–$80 eachtypical
9	Cap Hexagon Head Screw NSN 5305-00-068-0511 · P/N B1821BH038C125N SCREW,CAP,HEXAGON H 3/8-16 X 1.25 Fits: All A2 models, plus M1123	6	1,907 in stock
10	Multiple Angle Bracket NSN 5340-01-438-4497 · P/N 6002343 BRACKET,MULTIPLE R.H. FRONT Fits: All A2 models, plus M1123	1	We can source it $30–$55 eachtypical
11	Brush Vehicular Guard NSN 2540-01-432-9899 · P/N 6002348 GUARD,BRUSH,VEHICUL L.H. FRONT Fits: All A2 models, plus M1123	1	111 in stock $45–$90 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
