HMMWV Brake Protection Guard (Rear) TM 9-2320-280-24P · Fig. 190

Every part in figure 190 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1501 Frame Assembly: 8 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

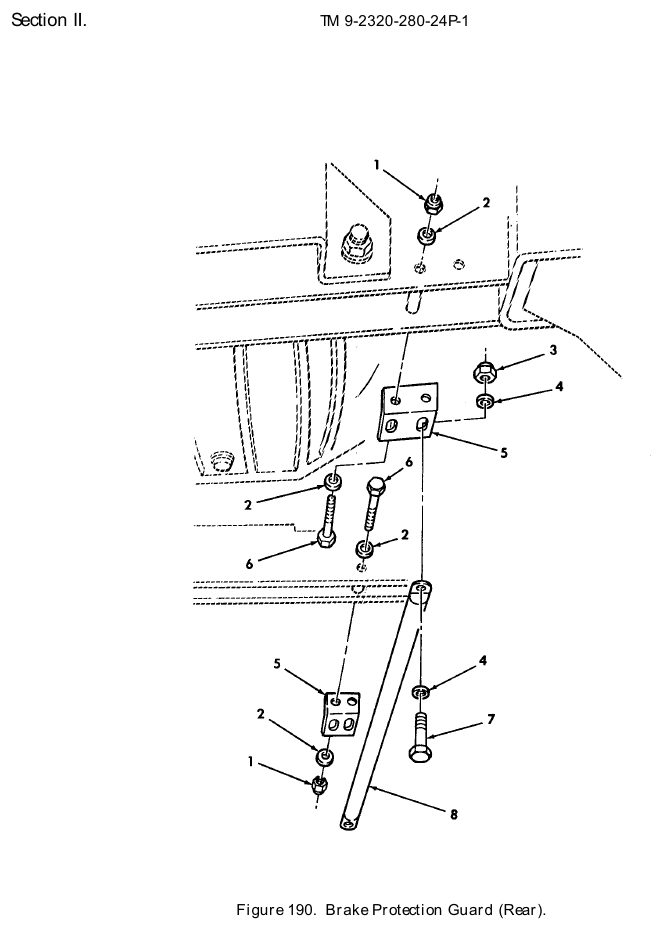

TM 9-2320-280-24P figure 190, Brake Protection Guard (Rear): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: All A2 models, plus M1123	8	354 in stock
2	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: All A2 models, plus M1123	16	1,368 in stock
3	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: All A2 models, plus M1123	8	219 in stock
4	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: All A2 models, plus M1123	16	1,146 in stock $7.83our price Buy online ↗
5	Angle Bracket NSN 5340-01-433-2721 · P/N 6002346 BRACKET,ANGLE REAR Fits: All A2 models, plus M1123	4	134 in stock $25–$40 eachtypical
6	Cap Hexagon Head Screw NSN 5305-01-459-9564 · P/N 453039 SCREW,CAP,HEXAGON H 5/16-18 X 2.75 Fits: All A2 models, plus M1123	8	We can source it
7	Cap Hexagon Head Screw NSN 5305-00-068-0511 · P/N B1821BH038C125N SCREW,CAP,HEXAGON H 3/8-16 X 1.25 Fits: All A2 models, plus M1123	8	1,907 in stock
8	Brush Vehicular Guard NSN 2540-01-432-9894 · P/N 6002347 GUARD,BRUSH,VEHICUL Fits: All A2 models, plus M1123	4	We can source it $40–$80 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
