HMMWV Fuel Filter Assembly/Water Separator and Mounting Hardware TM 9-2320-280-24P · Fig. 19

Every part in figure 19 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0309 Fuel Filters: 22 lines, 14 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

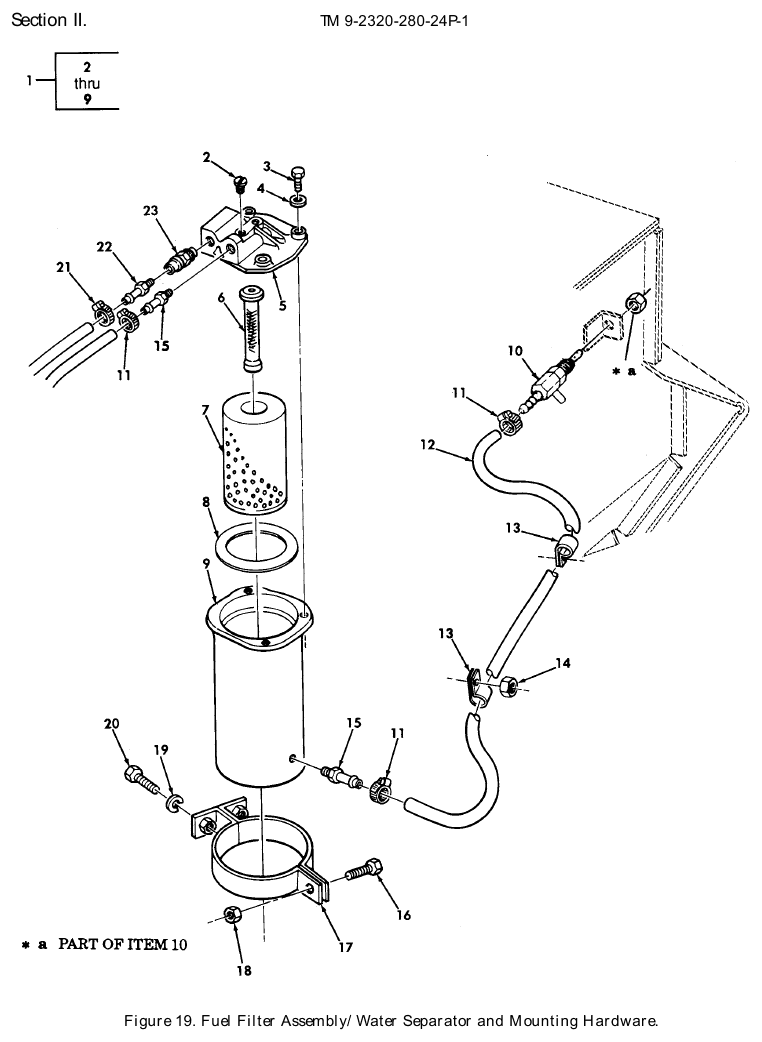

TM 9-2320-280-24P figure 19, Fuel Filter Assembly/Water Separator and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Liquid Fuel Filter-Separator NSN 4330-01-189-1007 · P/N 12339198 FILTER-SEPARATOR,LI Fits: All models	1	22 in stock $259.69our price Buy online ↗
2	Machine Screw NSN 5305-01-190-4073 · P/N SA609010 SCREW,MACHINE Fits: All models	1	We can source it
3	Machine Bolt NSN 5306-01-190-4553 · P/N A609015 BOLT,MACHINE 1/4-20 UNC-2A X .75 PART OF KIT P/N A630003............. 3 A630003 Fits: All models	3	We can source it
5	Head P/N SC300079 HEAD Fits: All models	1	Ask us
6	Liquid Fuel Filter-Separator NSN 4330-01-189-0889 · P/N 5579861 FILTER-SEPARATOR,LI Fits: All models	1	445 in stock $26.41our price Buy online ↗
7	Filter Element P/N SC220072 FILTER ELEMENT,FLUI PART OF KIT P/N A910044 Fits: All models	1	Ask us
8	O-Ring NSN 5330-01-335-7592 · P/N A618017 O-RING PART OF KIT P/N A910044 Fits: All models	1	113 in stock
9	Shell Assembly P/N SC300081 SHELL ASSEMBLY Fits: All models	1	Ask us
10	Drain Cock NSN 4820-01-431-2499 · P/N 12446751 COCK,DRAIN Fits: All models	1	1 in stock $55–$100 eachtypical
11	Hose Clamp NSN 4730-01-118-8278 · P/N MMF4-SS CLAMP,HOSE Fits: All models	3	9 in stock
12	Hose Make From Hose P/N 5588767 HOSE MAKE FROM HOSE P/N,9438257,26 INCHES LONG Fits: All models	1	Ask us
13	Loop Clamp NSN 2520-00-984-8540 · P/N MS21333-102 CLAMP,LOOP Fits: All models	2	426 in stock
14	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: All models	1	474 in stock
15	Straight Pipe to Hose Adapter NSN 4730-01-186-5994 · P/N 12339888 ADAPTER,STRAIGHT,PI Fits: All models	2	We can source it
16	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All models	1	471 in stock
17	Pipe Hanger NSN 5340-01-186-8768 · P/N 12338563 BRACKET,PIPE Fits: All models	1	We can source it $25–$50 eachtypical
18	Self-Locking Hexagon Nut NSN 5310-01-066-6759 · P/N 21NE-040 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	1	84 in stock
19	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: All models	2	2,036 in stock
20	Cap Hexagon Head Screw NSN 5306-00-226-4825 · P/N B1821BH031C075N BOLT,MACHINE 5/16-18 X 3/4 Fits: All models	2	761 in stock
21	Hose Clamp NSN 4730-00-024-3971 · P/N 62606 CLAMP,HOSE Fits: All models	1	6 in stock
22	Straight Pipe to Hose Adapter NSN 4730-01-185-9453 · P/N 12339889 ADAPTER,STRAIGHT,PI Fits: All models	1	1 in stock
23	Check Valve NSN 4820-01-456-0172 · P/N 12342953-2 VALVE,CHECK Fits: All models	1	140 in stock $127.00our price Buy online ↗

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
