HMMWV Fuel Tank Vent Line, Filter, and Mounting Hardware TM 9-2320-280-24P · Fig. 18

Every part in figure 18 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0306 Tanks, Lines, Fittings, Headers: 13 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

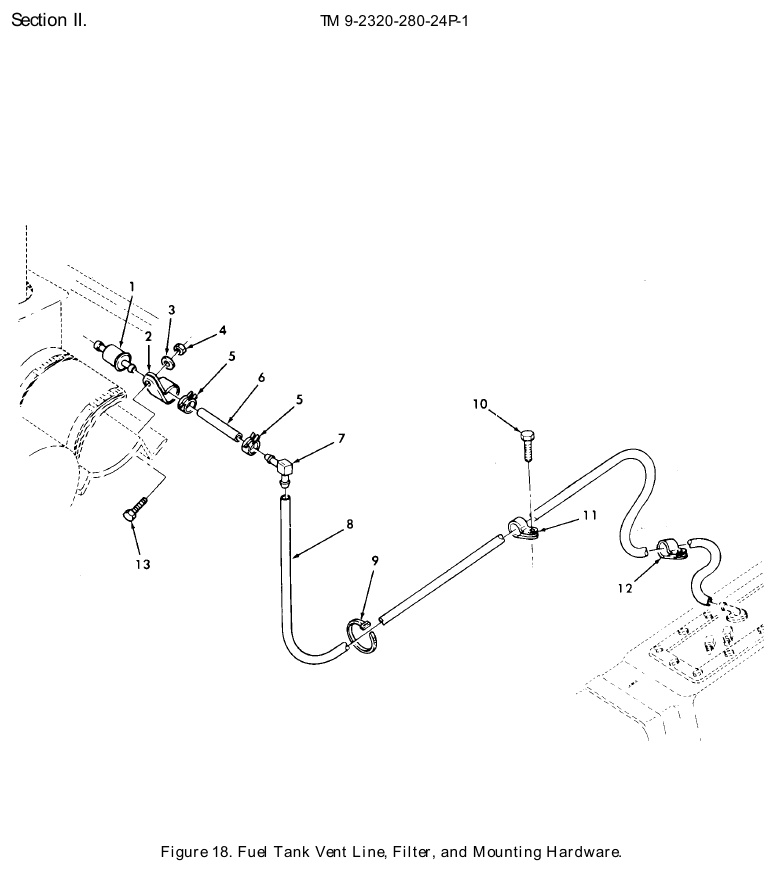

TM 9-2320-280-24P figure 18, Fuel Tank Vent Line, Filter, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Fluid Filter NSN 2910-01-210-5872 · P/N 12339208 FILTER,FLUID Fits: All models	1	2,762 in stock $9.31our price Buy online ↗
2	Loop Clamp NSN 5340-01-101-8262 · P/N COV-1309 CLAMP,LOOP Fits: All models	1	We can source it
3	Flat Washer NSN 5310-00-823-8804 · P/N MS27183-9 WASHER,FLAT 1/4 Fits: All models	1	50 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	1	626 in stock
5	Hose Clamp NSN 4730-00-954-1251 · P/N 934245 CLAMP,HOSE Fits: All models	2	4 in stock
6	Nonmetallic Make From Hose Hose P/N 5591180 HOSE,NONMETALLIC MAKE FROM HOSE,P/N RB1450-1-4IDX1-20D,2 INCHES LONG Fits: All models	1	Ask us
7	Hose Elbow NSN 4730-01-211-0896 · P/N 1065X6 ELBOW,HOSE Fits: All models	1	35 in stock
8	Nonmetallic Make From Hose Tube P/N 5594083 TUBE,NONMETALLIC MAKE FROM HOSE,P/N PFT-6B,91 INCHES LONG Fits: All models	1	Ask us
9	Tie Down Electrical Compon Strap NSN 5975-00-570-9598 · P/N MS3367-7-9 STRAP,TIEDOWN,ELECT Fits: All models	1	We can source it
10	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 3/8-16 X .62 Fits: All models	2	626 in stock
11	Loop Clamp NSN 5340-00-954-6014 · P/N MS21333-121 CLAMP,LOOP Fits: All models	2	215 in stock
12	Loop Clamp NSN 5340-01-071-2047 · P/N COVO7O9Z1 HOOK,SUPPORT Fits: All models	1	We can source it
13	Cap Hexagon Head Screw NSN 5305-00-068-0501 · P/N MS90725-5 SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: All models	1	288 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
