HMMWV Accelerator Controls and Hand Throttle TM 9-2320-280-24P · Fig. 21

Every part in figure 21 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0312 Accelerator, Throttle or Choke Controls: 29 lines, 22 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

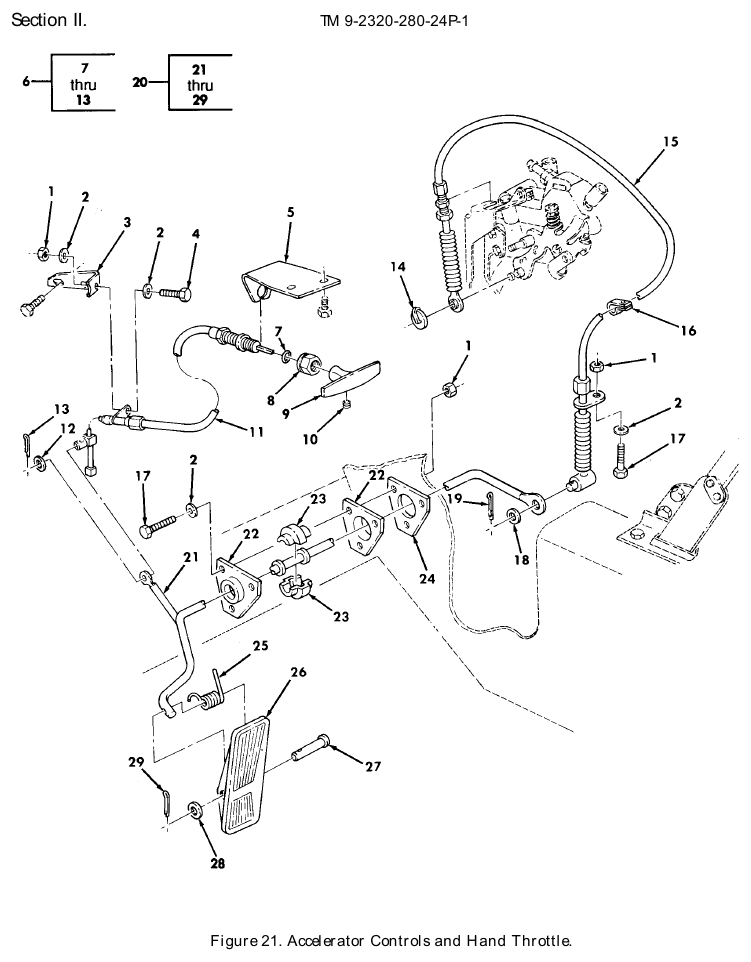

TM 9-2320-280-24P figure 21, Accelerator Controls and Hand Throttle: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	5	626 in stock
2	Flat Washer NSN 5310-00-823-8804 · P/N MS27183-9 WASHER,FLAT 1/4 Fits: All models	6	50 in stock
3	Angle Bracket NSN 5340-01-383-0462 · P/N 12338362 BRACKET,ANGLE LOWER Fits: All models	1	We can source it
4	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All models	1	471 in stock
5	Angle Bracket NSN 5340-01-297-2800 · P/N 5594101-C BRACKET,ANGLE UPPER Fits: All models	1	1 in stock
6	Push-Pull Control Assembly NSN 2590-01-279-5714 · P/N 35752 CONTROL ASSEMBLY,PU Fits: All models	1	15 in stock $70–$120 eachtypical
7	O-Ring NSN 5330-00-585-6663 · P/N MS28775-110 O-RING Fits: All models	1	31 in stock
8	Hexagon Nut P/N 30071 NUT,HEXAGON 5/8-18 Fits: All models	1	Ask us
9	Manual Control Handle NSN 5340-01-290-8360 · P/N 49005-1224 HANDLE,MANUAL CONTR Fits: All models	1	78 in stock
10	Setscrew NSN 5305-01-290-8206 · P/N 30073 SETSCREW Fits: All models	1	10 in stock
11	Cable P/N 35752-12 CABLE Fits: All models	1	Ask us
12	Flat Washer P/N 10618 WASHER,FLAT Fits: All models	1	Ask us
13	Lock Pin NSN 5315-01-284-9812 · P/N 10166 PIN,LOCK Fits: All models	1	49 in stock
14	Spring Tension Clip NSN 5340-01-189-6748 · P/N 5569460 CLIP,SPRING TENSION Fits: All models	1	8 in stock
15	Push-Pull Control Assembly NSN 2590-01-199-5423 · P/N 35745-44 CONTROL ASSEMBLY,PU Fits: All models	1	205 in stock $87.22our price Buy online ↗
16	Loop Clamp NSN 5340-00-079-7837 · P/N MS21333-67 CLAMP,LOOP Fits: All models	1	We can source it
17	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: All models	4	559 in stock
18	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All models	1	2,325 in stock
19	Cotter Pin NSN 5315-00-839-2325 · P/N A82-1 PIN,COTTER 1/16 X 1/2 Fits: All models	1	8,521 in stock
20	Control Pedal Assembly NSN 2540-01-217-2669 · P/N 12338369 PEDAL ASSEMBLY,CONT Fits: All models	1	We can source it $191.75 per assemblygov't list price
21	Control Pedal NSN 2540-01-439-7308 · P/N 12460224 PEDAL,CONTROL Fits: All models	1	2,527 in stock
22	Retaining Bearing Plate NSN 3110-01-189-9980 · P/N 5578635 PLATE,RETAINING,BEA Fits: All models	2	11 in stock $25–$40 eachtypical
23	Sleeve Bearing NSN 3120-01-186-7714 · P/N 12338356 BEARING,SLEEVE Fits: All models	2	27 in stock
24	Gasket NSN 5330-01-185-0587 · P/N 5578660-B GASKET Fits: All models	1	162 in stock
25	Helical Torsion Spring NSN 5360-01-186-3737 · P/N 5578742 SPRING,HELICAL,TORS Fits: All models	1	107 in stock
26	Control Pedal NSN 2540-01-185-9656 · P/N 12338365 PEDAL,CONTROL Fits: All models	1	10 in stock
27	Straight Headed Pin NSN 5315-01-185-7421 · P/N 5578764 PIN,STRAIGHT,HEADED 3/16 X 1.25 Fits: All models	1	We can source it
28	Flat Washer NSN 5310-00-823-8804 · P/N MS27183-9 WASHER,FLAT 1/4 Fits: All models	1	50 in stock
29	Cotter Pin NSN 5315-00-839-2325 · P/N A82-1 PIN,COTTER Fits: All models	1	8,521 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
