HMMWV Accelerator Cable Bracket and Idle Spring TM 9-2320-280-24P · Fig. 22

Every part in figure 22 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0312 Accelerator, Throttle or Choke Controls: 3 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

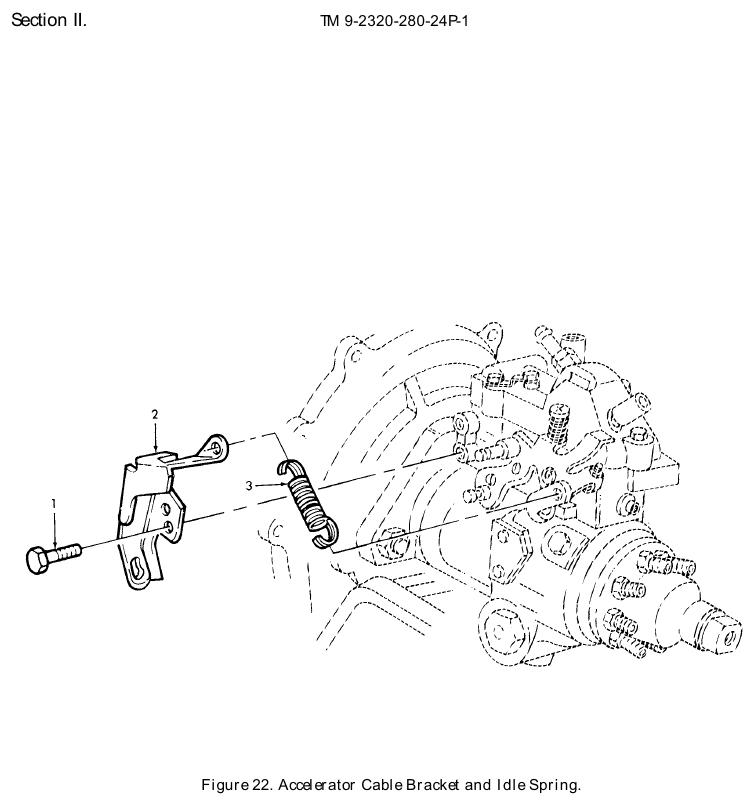

TM 9-2320-280-24P figure 22, Accelerator Cable Bracket and Idle Spring: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-01-152-4693 · P/N 11504986 BOLT,MACHINE 8-1.25 X 14MM Fits: All models	2	16 in stock
2	Mounting Bracket NSN 5340-01-182-1074 · P/N 12339142 BRACKET,MOUNTING Fits: All models	1	11 in stock $30–$70 eachtypical
3	Helical Extension Spring NSN 5360-01-210-2852 · P/N 12339492 SPRING,HELICAL,EXTE Fits: All models	1	89 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
