HMMWV Interior Tunnel, Cowl, Floor Insulation, Mounting Components (Foam), and Exterior Insulation TM 9-2320-280-24P · Fig. 227

Every part in figure 227 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1805 Floors and Subfloors: 63 lines, 47 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

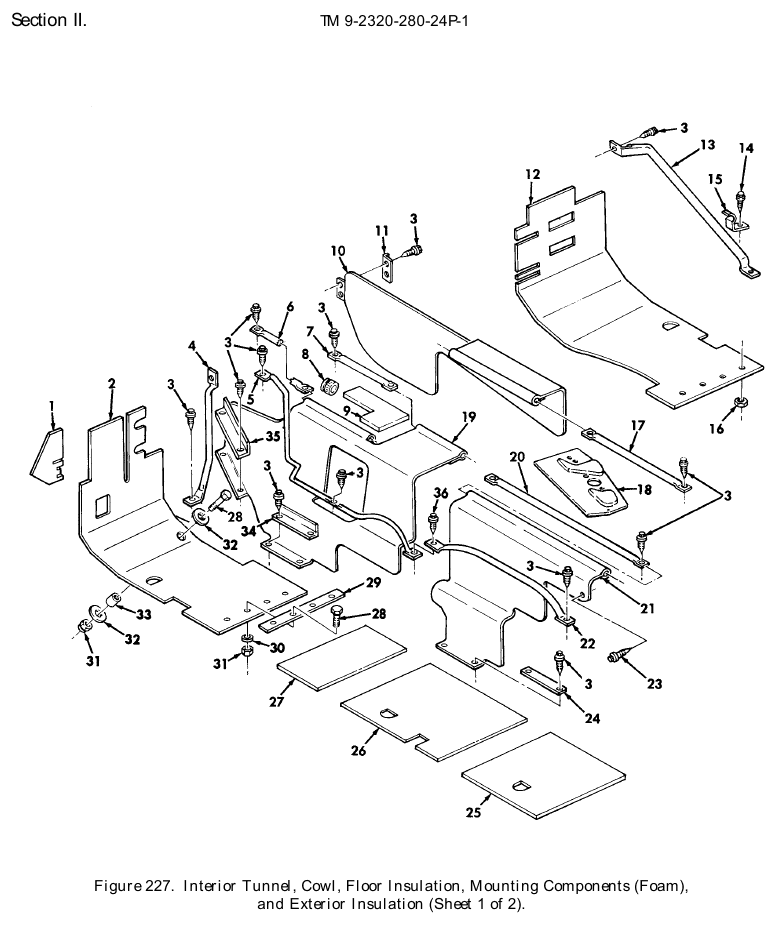

TM 9-2320-280-24P figure 227, Interior Tunnel, Cowl, Floor Insulation, Mounting Components (Foam), and Exterior Insulation, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

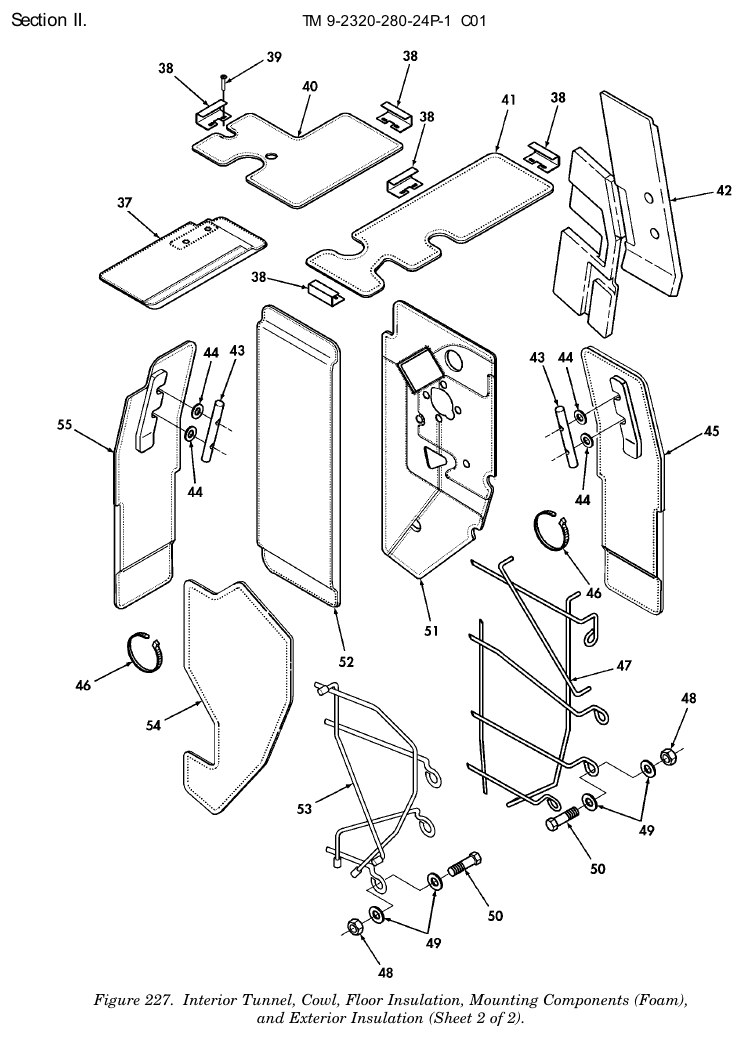

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Insulation NSN 2510-01-250-7597 · P/N 12338830 INSULATION PANEL,VE OUTER,UPPER,LH Fits: All models	1	119 in stock $25–$40 eachtypical
2	Vehicular Insulation NSN 2540-01-250-7596 · P/N 12339907 INSULATION PANEL,VE FRONT,FLOOR,LH Fits: All A0 models, plus M1121	1	6 in stock $70–$120 eachtypical
2	Vehicular Insulation NSN 2540-01-383-5232 · P/N 12446700 INSULATION,THERMAL, FRONT,FLOOR,LH Fits: All A1 and A2 models, plus M1123	1	16 in stock $155.00our price Buy online ↗
3	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10-32 X 1/2 Fits: M996, M996A1, M997, M997A1, M997A2, M1037 and 5 more	25	1,205 in stock
3	Machine Screw NSN 5305-01-259-6322 · P/N 12342499-1 SCREW,MACHINE #10-32 X 1/2 Fits: All A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M966, M998, M1025, M1026, M1035, M1038 and 5 more	20	1,205 in stock
4	Bent Metallic Tube NSN 4710-01-251-6103 · P/N 5594002 TUBE,BENT,METALLIC FRONT,LH Fits: All models	1	6 in stock
5	Bent Metallic Tube NSN 4710-01-251-3073 · P/N 12340828 TUBE,BENT,METALLIC INTERMEDIATE,LH Fits: All models	1	5 in stock $35–$65 eachtypical
6	Insulation Retainer NSN 2590-01-251-3071 · P/N 12339015-2 RETAINER,INSULATION UPPER FRONT,LH Fits: All models	1	2 in stock
7	Insulation Retainer NSN 2590-01-251-3069 · P/N 12339015-3 RETAINER,INSULATION UPPER REAR,LH Fits: All models	1	1,808 in stock $17.89our price Buy online ↗
8	Protective Dust and Moi Cap-Plug NSN 5340-01-203-1980 · P/N 2683 CAP-PLUG,PROTECTIVE Fits: All models	2	521 in stock
9	Cushioning Pad NSN 2590-01-306-5881 · P/N 12340824 PAD,CUSHIONING UPPER FRONT,L.H Fits: All models	1	7 in stock $25–$55 eachtypical
10	Vehicular Insulation NSN 2540-01-335-7363 · P/N 12342455 INSULATION PANEL,VE SIDE,R.H Fits: All A0 models except M997, M1037, M1097; all A1 models except M997A1; all A2 models except M997A2, M1097A2, plus M1121	1	We can source it $362.40 per eachgov't list price
10	Vehicular Insulation NSN 2540-01-252-4466 · P/N SF-5595841 INSULATION PANEL,VE SIDE,RH Fits: M997, M997A1, M997A2	1	15 in stock $161.35 per eachgov't list price
11	Metal Molding NSN 2590-01-262-7707 · P/N 5594076 MOLDING,METAL FRONT,RH Fits: All models	2	2,532 in stock $6.00our price Buy online ↗
12	Vehicular Insulation NSN 2510-01-209-1881 · P/N 12339908 INSULATION BLANKET, FRONT FLOOR,RH Fits: All models	1	1 in stock $75–$125 eachtypical
13	Bent Metallic Tube NSN 4710-01-254-7272 · P/N 12339018 TUBE,BENT,METALLIC Fits: All models	1	14 in stock $25–$55 eachtypical
14	Machine Screw NSN 5305-00-059-3659 · P/N MS51958-63 SCREW,MACHINE #10-32 X 1/2 Fits: All models	1	169 in stock
15	Retaining Clip NSN 5340-01-266-6398 · P/N 12339438 CLIP,RETAINING R.H Fits: All models	1	We can source it
16	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: All models	2	474 in stock
17	Insulation Retainer NSN 2590-01-251-3069 · P/N 12339015-3 RETAINER,INSULATION UPPER,RH Fits: M997, M997A1, M997A2	1	1,808 in stock $17.89our price Buy online ↗
17	Insulation Retainer NSN 2590-01-251-3070 · P/N 12339015-1 RETAINER,INSULATION UPPER,RH Fits: All A0 models except M997; all A1 models except M997A1, plus M1121	1	35 in stock
18	Vehicular Insulation NSN 2510-01-421-8067 · P/N 12340823 INSULATION PANEL,VE FRONT,R.H Fits: All models	1	76 in stock $30–$65 eachtypical
19	Vehicular Insulation NSN 2510-01-251-8548 · P/N 12339044 INSULATION BLANKET, FRONT,LH, USBL EFF 1 THRU 46161 Fits: All A0 models except M1097, plus M1121	1	1,718 in stock $52.50our price Buy online ↗
19	Vehicular Insulation NSN 2540-01-461-1129 · P/N 12446961 INSULATION,THERMAL, USBL EFF 46162 AND ABOVE Fits: All A2 models; all A1 models except M997A1, plus M966, M998, M1038, M1097, M1123	1	316 in stock $214.99 per eachgov't list price
20	Insulation Retainer NSN 2590-01-251-3068 · P/N 12339015-4 RETAINER,INSULATION UPPER REAR,LH Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 13 more	1	54 in stock $25–$45 eachtypical
21	Vehicular Insulation NSN 2510-01-251-9995 · P/N 12339039 INSULATION PANEL,VE INTERMEDIATE REAR,LH Fits: All A2 models except M997A2, M1097A2, plus M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 11 more	1	45 in stock $90–$155 eachtypical
22	Bent Metallic Tube NSN 4710-01-251-3075 · P/N 5593947 TUBE,BENT,METALLIC INTERMEDIATE REAR,LH Fits: M966, M966A1, M1025A1, M1025A2, M1026A1, M1035 and 12 more	1	We can source it $25–$60 eachtypical
23	Tapping Screw NSN 5305-01-270-7225 · P/N 12341822 SCREW,TAPPING THREA #10-16 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 14 more	32	We can source it
24	Automotive Trim Bezel NSN 2590-01-261-6851 · P/N 5594077 BEZEL,AUTOMOTIVE TR LOWER REAR,LH Fits: All A2 models except M997A2, M1097A2, plus M966, M966A1, M1025A1, M1026A1, M1035A1, M1042 and 8 more	1	711 in stock $25.00our price Buy online ↗
25	Vehicular Insulation NSN 2590-01-250-7595 · P/N IF-3 INSULATION PANEL,VE L.H. AND R.H REAR SEAT BASE Fits: All A2 models except M997A2, M1097A2, plus M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 11 more	2	55 in stock $30–$70 eachtypical
26	Vehicular Insulation NSN 2540-01-384-1012 · P/N 12446701 INSULATION,THERMAL, REAR,LH Fits: All A2 models except M997A2, M1097A2, plus M966A1, M1025A1, M1026A1, M1035A1, M1043A1, M1044A1 and 2 more	1	3 in stock $90–$150 eachtypical
26	Vehicular Insulation NSN 2510-01-250-7593 · P/N 12339019 INSULATION PANEL,VE REAR,RH Fits: All A2 models except M997A2, M1097A2, plus M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 11 more	1	1 in stock $30–$60 eachtypical
26	Vehicular Insulation NSN 2510-01-250-7594 · P/N I F-5 INSULATION PANEL,VE REAR,LH Fits: M966, M1025, M1026, M1035, M1043, M1044 and 3 more	1	3 in stock $45–$85 eachtypical
27	Vehicular Insulation NSN 2510-01-369-3230 · P/N 12339021 INSULATION PANEL,VE L.H Fits: All A0 models, plus M1121	1	12 in stock $25–$60 eachtypical
27	Vehicular Insulation NSN 2540-01-384-1028 · P/N 12446702 INSULATION,THERMAL, DRIVERS SEAT FLOOR Fits: All A1 and A2 models, plus M1123	1	9 in stock $25–$60 eachtypical
28	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: All models	9	559 in stock
29	Automotive Trim Bezel NSN 2590-01-263-3254 · P/N 5591713 BEZEL,AUTOMOTIVE TR COWL FLOOR,R.H Fits: All models	1	217 in stock
29	Metal Molding NSN 2590-01-262-7706 · P/N 5591712 MOLDING,METAL COWL FLOOR,L.H Fits: All models	1	909 in stock
30	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All models	8	2,325 in stock
31	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	9	184 in stock
32	Flat Washer NSN 5310-01-199-2293 · P/N 9421394 WASHER,FLAT Fits: All models	2	We can source it
33	Sleeve Spacer NSN 5365-01-477-2843 · P/N 12341640 SPACER,STRAIGHT Fits: All models	1	7 in stock $93.96our price Buy online ↗
34	Angle Bracket NSN 5340-01-287-5825 · P/N 12341891 BRACKET,ANGLE Fits: All models	2	We can source it
35	Angle Bracket NSN 5340-01-287-5825 · P/N 5598103 BRACKET,ANGLE L.H Fits: All models	1	We can source it
36	Tapping Screw NSN 5305-01-264-5809 · P/N 12342499-2 SCREW,TAPPING THREA #10-32 X .62 Fits: All A1 models except M966A1, M996A1, M997A1; all A2 models except M997A2, M1097A2, plus M966, M998, M1025, M1026, M1035, M1038 and 6 more	1	3,978 in stock
37	Vehicular Insulation NSN 2540-01-473-6304 · P/N 12446846 INSULATION,THERMAL,O R.H. UPPER A BEAM CLOSEOUT Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	616 in stock $90–$150 eachtypical
38	Multiple Angle Bracket NSN 5340-01-479-0211 · P/N 12446858 BRACKET,MULTIPLE AN Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	5	We can source it
39	Blind Rivet NSN 5320-01-135-7319 · P/N CR3213-6-3 RIVET,BLIND Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	10	72 in stock
40	Vehicular Insulation NSN 2540-01-473-8310 · P/N 12446853 INSULATION,THERMAL,O L.H. COWL TOP Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	We can source it $109.85 per eachgov't list price
41	Vehicular Insulation NSN 2540-01-473-7107 · P/N 12446854 INSULATION,THERMAL,O L.H. UPPER COWL TOP BEAM CLOSEOUT Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	47 in stock $32.55our price Buy online ↗
43	Straight Headless Pin NSN 5315-01-473-3682 · P/N 12446857 PIN,STRAIGHT,HEADLE Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	2	We can source it $25–$40 eachtypical
44	Flat Washer NSN 5310-01-510-6029 · P/N 307124-Z WASHER,FLAT Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	4	We can source it
45	Vehicular Insulation NSN 2540-01-473-7544 · P/N 12446850 INSULATION,THERMAL, Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	2 in stock $112.08 per eachgov't list price
46	Strap NSN 5975-01-475-3442 · P/N 11504726 STRAP,TIE-DOWN ELEC Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	2	We can source it
47	Cowl Retainer Assy NSN 2510-01-473-8204 · P/N 12446856 RETAINER ASSY,COWL L.H. INNER COWL Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	We can source it $357.29 per assemblygov't list price
48	Self-Locking Extended Washer Nut NSN 5310-01-461-8043 · P/N 9411807 NUT,SELF-LOCKING,EX Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	7	We can source it
49	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	14	909 in stock
50	Machine Screw NSN 5305-00-240-6541 · P/N MS51849-79 SCREW,MACHINE Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	7	We can source it
51	Vehicular Insulation NSN 2540-01-475-4708 · P/N 12446852 INSULATION,THERMAL,O L.H. INNER COWL Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	45 in stock $259.37 per eachgov't list price
52	Vehicular Insulation NSN 2540-01-473-7553 · P/N 12446848 INSULATION,THERMAL,O CENTER A BEAM Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	170 in stock $60–$105 eachtypical
53	Retainer Assembly C NSN 2510-01-257-8784 · P/N 5596830 RETAINER ASSEMBLY R.H. INNER COWL Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	We can source it $181.34 per assemblygov't list price
54	Vehicular Insulation NSN 2540-01-473-7959 · P/N 12446851 INSULATION,THERMAL,O R.H. INNER COWL Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	492 in stock $85–$145 eachtypical
55	Vehicular Insulation NSN 2540-01-473-8050 · P/N 12446849 INSULATION,THERMAL,O R.H. LOWER A BEAM CLOUSEOUT Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	1 in stock $112.08 per eachgov't list price

Buy the 8 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
