HMMWV Windshield Assembly, Ballistic TM 9-2320-280-24P · Fig. 226

Every part in figure 226 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1802 Fenders, Running Boards with Mounting and Attaching Parts: 52 lines, 31 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

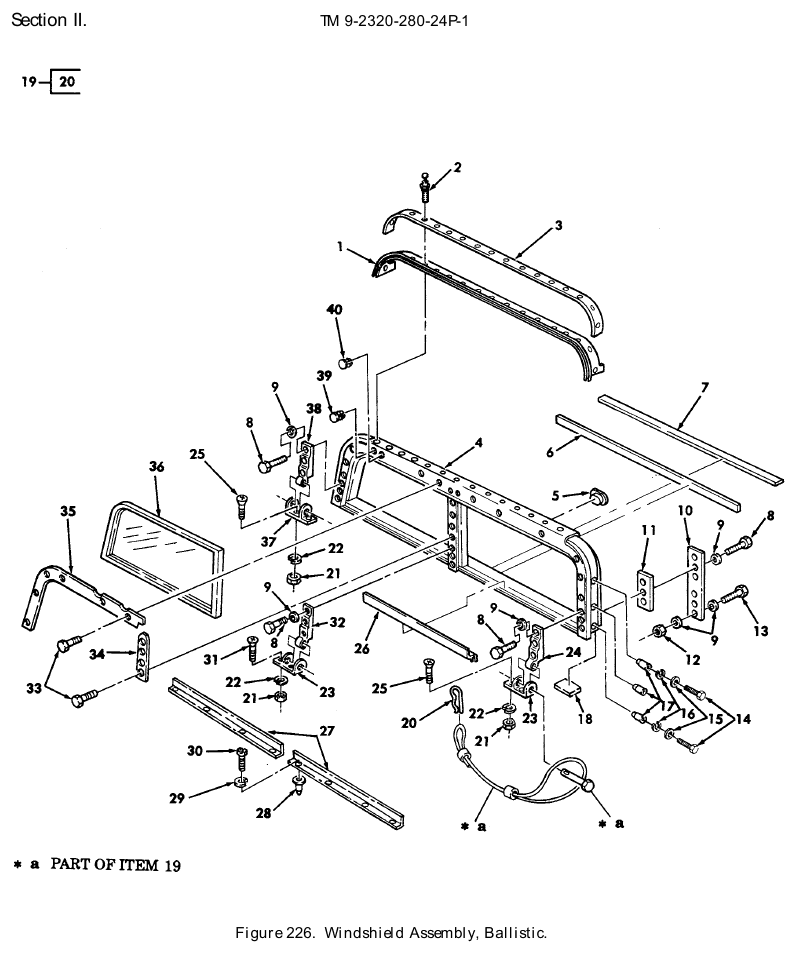

TM 9-2320-280-24P figure 226, Windshield Assembly, Ballistic: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Winsh Seal Assembly NSN 2540-01-246-8289 · P/N 12338810 SEAL ASSEMBLY,WINSH UPPER Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 11 more	1	10 in stock $30–$70 per assemblytypical
2	Blind Rivet NSN 5320-01-259-7423 · P/N CR-213-4-5 RIVET,BLIND UPPER,1/8 DIA Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 11 more	27	We can source it
3	Automotive Trim Bezel NSN 2590-01-246-8288 · P/N 12338818 BEZEL,AUTOMOTIVE TR UPPER Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 11 more	1	2 in stock $55–$100 eachtypical
4	Window Vehicular Frame NSN 2510-01-247-7968 · P/N 12340836 FRAME,WINDOW,VEHICU BASIC Fits: M996, M996A1, M997, M997A1	1	We can source it $1,868.06 per eachgov't list price
4	Window Vehicular Frame NSN 2510-01-414-7846 · P/N 12446878 FRAME,WINDOW,VEHICU SUPPLEMENTAL Fits: M1025A2, M1043A2, M1045A2	1	We can source it quote only $1,925.56 per eachgov't list price
4	Window Vehicular Frame NSN 2510-01-413-3259 · P/N 12446880 FRAME,WINDOW,VEHICU BASIC Fits: M997A2	1	We can source it $2,020.30 per eachgov't list price
4	Window Vehicular Frame NSN 2510-01-233-7767 · P/N 12339513 FRAME,WINDOW,VEHICU SUPPLEMENTAL Fits: M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 9 more	1	2 in stock $245.00our price Buy online ↗
5	Protective Dust and Moi Cap-Plug NSN 5340-01-188-1018 · P/N 12338829 CAP-PLUG,PROTECTIVE Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	2	78 in stock
6	Make From Seal Seal Lower P/N 12338807-4 SEAL LOWER,MAKE FROM SEAL,P/N 68- 412121-1,81.50 INCHES LONG Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	1	Ask us
7	Make From Seal Seal Lower P/N SF5590706 SEAL LOWER,MAKE FROM SEAL,P/N 68- 412121-1,80.5 INCHES LONG Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	1	Ask us
8	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1.125 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	21	84,127 in stock
9	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	27	471 in stock
10	Mounting Bracket NSN 5340-01-247-7912 · P/N 12338833 BRACKET,MOUNTING REAR Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	2	We can source it $25–$40 eachtypical
11	Plate Spacer NSN 5365-01-213-4239 · P/N 5585178 SPACER,PLATE Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	6	32 in stock
12	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE LOWER,5/16-18 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	6	354 in stock
13	Machine Bolt NSN 5306-00-226-4829 · P/N B1821BH031C125N BOLT,MACHINE LOWER,5/16-18 X 1.25 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	6	74 in stock
14	Machine Bolt NSN 5306-00-226-4827 · P/N B1821BH031C100N BOLT,MACHINE 5/16-18 X 1.00 Fits: All A2 models except M1035A2, M1097A2	2	292 in stock
15	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: All A2 models except M1035A2, M1097A2	2	1,368 in stock
16	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: All A2 models except M1035A2, M1097A2	2	2,036 in stock
17	Plain Blind Rivet Nut NSN 5310-01-413-3276 · P/N ALS4-518-150 NUT,PLAIN,BLIND RIV Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	5	269 in stock
18	Make From Seal Seal Lower P/N 5596172 SEAL LOWER,MAKE FROM SEAL,P/N 68- 412121-1,2.88 INCHES LONG Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	2	Ask us
19	Straight Headed Pin NSN 5315-01-205-2988 · P/N 12338813 PIN,STRAIGHT,HEADED Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	3	2,781 in stock $14.59our price Buy online ↗
20	Pin NSN 5315-01-188-4490 · P/N 12339401 PIN Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	1	We can source it
21	Plain Hexagon Nut NSN 5310-00-880-7744 · P/N MS51967-5 NUT,PLAIN,HEXAGON LOWER,5/16-18 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	6	1,817 in stock
22	Lock Washer NSN 5310-01-253-8957 · P/N 5592927 WASHER,LOCK LOWER,5/16 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	6	We can source it
23	Hinge NSN 5342-01-186-7382 · P/N 12338822-1 HINGE L.H. LOWER AND CENTER Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	2	We can source it
24	Windshield Hinge NSN 2510-01-198-7413 · P/N 12338841-1 HINGE,WINDSHIELD UPPER,L.H Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	1	12 in stock $30–$60 eachtypical
25	Machine Screw NSN 5305-00-958-5253 · P/N MS35190-306 SCREW,MACHINE 5/16-18 X 1.00 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
25	Machine Screw NSN 5305-00-958-5254 · P/N MS35190-307 SCREW,MACHINE 5/16-18 X 1-1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	2 in stock
26	Automotive Trim Bezel NSN 2590-01-209-6043 · P/N 12338819 BEZEL,AUTOMOTIVE TR LOWER Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	2	We can source it $50–$95 eachtypical
27	Window Vehicular Frame NSN 2510-01-411-0652 · P/N 12447029 FRAME,WINDOW,VEHICU Fits: All A2 models except M1035A2, M1097A2	2	We can source it
28	Screw Thread Insert NSN 5325-01-411-0066 · P/N ALS4-1024-130 INSERT,SCREW THREAD Fits: All A2 models except M1035A2, M1097A2	8	1,125 in stock
29	Lock Washer NSN 5310-00-922-2017 · P/N 120217 WASHER,LOCK #10 Fits: All A2 models except M1035A2, M1097A2	8	We can source it
30	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE Fits: All A2 models except M1035A2, M1097A2	8	287 in stock
31	Machine Screw NSN 5305-00-958-5469 · P/N MS35190-305 SCREW,MACHINE 5/16-18 X 7/8 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	2	We can source it
31	Machine Screw NSN 5305-00-958-5254 · P/N MS35190-307 SCREW,MACHINE 5/16-18 X 1 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	2	2 in stock
31	Machine Screw NSN 5305-00-958-5253 · P/N MS35190-306 SCREW,MACHINE 5/16-18 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 7 more	2	We can source it
32	Butt Hinge Leaf NSN 5340-01-185-0401 · P/N 12338835 LEAF,BUTT HINGE CENTER,UPPER Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	1	We can source it $25–$45 eachtypical
33	Tapping Screw NSN 5305-01-264-5809 · P/N 12342499-2 SCREW,TAPPING THREA #10-32 X .62 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	16	3,978 in stock
34	Metal Molding NSN 2590-01-188-3225 · P/N 5581260 MOLDING,METAL CENTER,BASIC Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	1	748 in stock $15.00our price Buy online ↗
34	Automotive Trim Bezel NSN 2590-01-209-6041 · P/N 12338862 BEZEL,AUTOMOTIVE TR CENTER, BALLISTIC Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	3 in stock $25–$60 eachtypical
35	Metal Molding NSN 2590-01-189-1067 · P/N 12338852 MOLDING,METAL UPPER,BASIC Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	2	7 in stock $40–$80 eachtypical
35	Windshield Retainer NSN 2540-01-216-6320 · P/N 12338851-1 MOLDING,METAL L.H.,SUPPLEMENTAL Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	1,490 in stock $106.96 per eachgov't list price
35	Metal Molding NSN 2590-01-209-6042 · P/N 12338851-2 MOLDING,METAL R.H.,SUPPLEMENTAL Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	291 in stock $38.88our price Buy online ↗
36	Transparent Vehicular Wind Armor NSN 2541-01-289-2233 · P/N 12339509 WINDOW,VEHICULAR L.H.,BASIC Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	1	We can source it quote only $412.38 per eachgov't list price
36	Transparent Vehicular Wind Armor NSN 2510-01-289-8258 · P/N 12339506 WINDOW,VEHICULAR R.H.,BASIC Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	1	2 in stock quote only $525.64 per eachgov't list price
36	Transparent Vehicular Wind Armor NSN 2510-01-289-8259 · P/N 12339508 WINDOW,VEHICULAR L.H.,SUPPLEMENTAL Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	3 in stock quote only $715.00 per eachgov't list price
36	Transparent Vehicular Wind Armor NSN 2510-01-289-8260 · P/N 12339507 WINDOW,VEHICULAR R.H.,SUPPLEMENTAL Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	9 in stock quote only $645.81 per eachgov't list price
37	Wind Shield Hinge NSN 5342-01-185-0116 · P/N 12338822-2 HINGE,WIND SHIELD LOWER,R.H Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	1	We can source it $25–$45 eachtypical
38	Butt Hinge Leaf NSN 5340-01-203-8608 · P/N 5585154 LEAF,BUTT HINGE UPPER,R.H Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	1	We can source it $25–$55 eachtypical
39	Plug Button NSN 5340-01-332-7602 · P/N 12339661-1 BUTTON,PLUG Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	1	2,162 in stock
40	Plug Button NSN 5340-01-185-4959 · P/N 207-320401-00 BUTTON,PLUG Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	2	4 in stock

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
