HMMWV Floor Mat Cover and Related Hardware, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 229

Every part in figure 229 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1805 Floors and Subfloors: 5 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

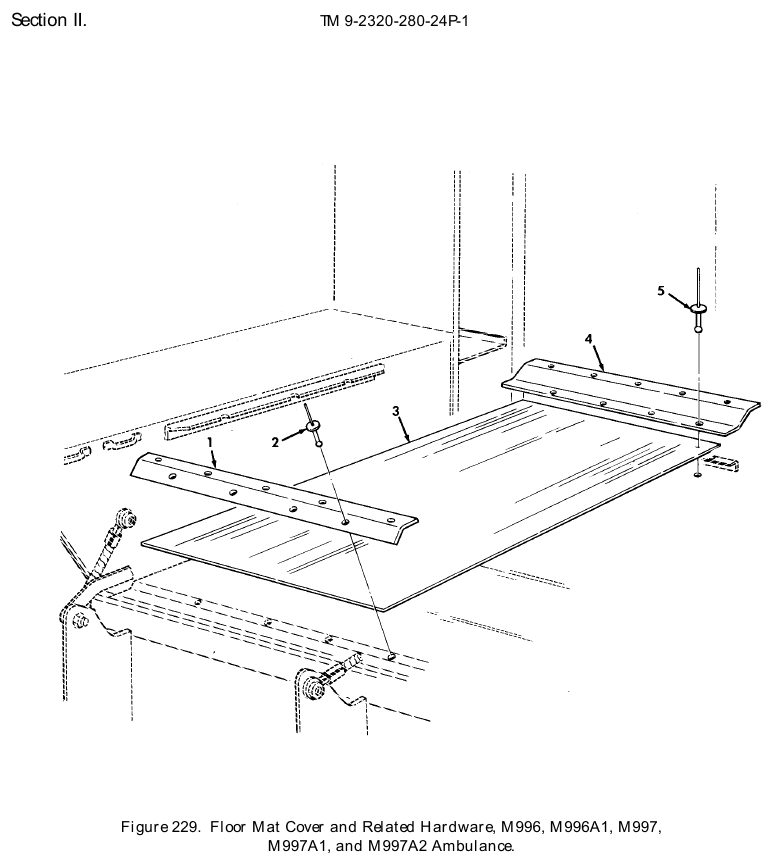

TM 9-2320-280-24P figure 229, Floor Mat Cover and Related Hardware, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Floor Mat NSN 2540-01-270-9344 · P/N 12340979 MAT,FLOOR Fits: M996, M996A1, M997, M997A1, M997A2	1	10 in stock $25–$40 eachtypical
2	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1-A404 RIVET,BLIND 1/8 Fits: M996, M996A1, M997, M997A1, M997A2	9	132 in stock
3	Floor Mat NSN 2540-01-266-5702 · P/N 12341155 MAT,FLOOR Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock $132.68 per eachgov't list price
4	Electrical Cable Protector NSN 5975-01-275-2695 · P/N 12341492 PROTECTOR,ELECTRICA Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $55–$90 eachtypical
5	Blind Rivet NSN 5320-01-136-1782 · P/N NAS9301BNS-6-04 RIVET,BLIND 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	9	50 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
