HMMWV Seats and Belts, Front TM 9-2320-280-24P · Fig. 230

Every part in figure 230 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1806 Upholstery Seats and Carpet: 27 lines, 22 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

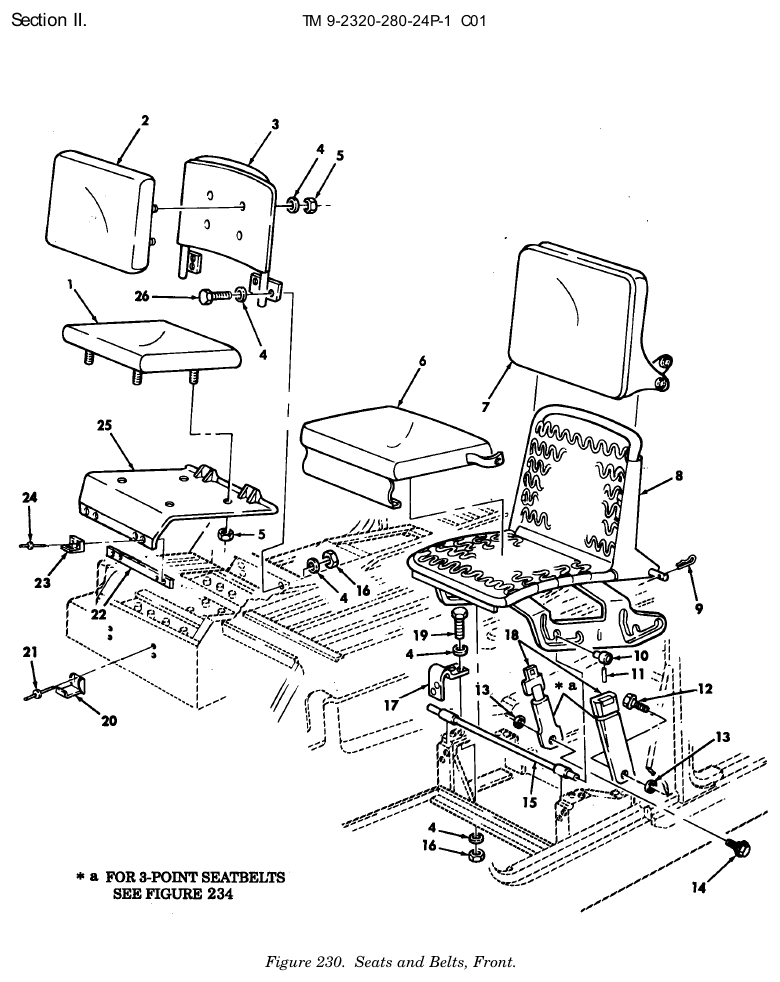

TM 9-2320-280-24P figure 230, Seats and Belts, Front: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Seat Vehicular Cushion NSN 2540-01-314-7834 · P/N 12342068 CUSHION,SEAT,VEHICU Fits: All A0 models, plus M1121	1	461 in stock $40.00our price Buy online ↗
2	Seat Back Vehicular Cushion NSN 2540-01-314-9378 · P/N 2540V0751 CUSHION,SEAT BACK,V Fits: All A0 models, plus M1121	1	388 in stock $40.00our price Buy online ↗
3	Seat Vehicular Frame NSN 2540-01-184-6602 · P/N 12338528 FRAME,SEAT,VEHICULA Fits: All A0 models, plus M1121	1	437 in stock $55–$95 eachtypical
4	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT R.H.,5/16 Fits: All A0 models, plus M1121	28	1,368 in stock
5	Plain Hexagon Nut NSN 5310-00-880-7744 · P/N MS51967-5 NUT,PLAIN,HEXAGON R.H.,5/16-18 Fits: All A0 models, plus M1121	8	1,817 in stock
6	Seat Vehicular Cushion NSN 2540-01-313-0678 · P/N 12342047 CUSHION,SEAT,VEHICU Fits: All A0 models, plus M1121	1	1,647 in stock $46.50our price Buy online ↗
7	Seat Back Vehicular Cushion NSN 2540-01-314-7835 · P/N 12342061 CUSHION,SEAT BACK,V Fits: All A0 models, plus M1121	1	790 in stock $85.00our price Buy online ↗
8	Seat Vehicular Frame NSN 2540-01-318-9229 · P/N 12338503-1 FRAME,SEAT,VEHICULA Fits: All A0 models, plus M1121	1	349 in stock $1,231.21 per eachgov't list price
9	Lock Pin NSN 5315-01-280-6185 · P/N 10392 PIN,LOCK Fits: All A0 models, plus M1121	4	441 in stock
10	Shaft Collar NSN 3040-01-251-9383 · P/N 12338539 COLLAR,SHAFT Fits: All A0 models, plus M1121	4	3 in stock $25–$40 eachtypical
11	Spring Pin NSN 5315-00-814-3529 · P/N MS16562-20 PIN,SPRING Fits: All A0 models, plus M1121	4	11 in stock
12	Cap Hexagon Head Screw NSN 5305-01-254-2522 · P/N 12340259 SCREW,CAP,HEXAGON H L.H.,R.H.,7/16- 20 X 57/64,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	2	We can source it $40–$80 eachtypical
13	Flat Washer NSN 5310-01-253-8437 · P/N 12340058 WASHER,FLAT USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	4	We can source it
14	Cap Hexagon Head Screw NSN 5305-01-264-3555 · P/N 12340259-2 SCREW,CAP,HEXAGON H 7/16-20 X 1.19, USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	2	34 in stock $30–$70 eachtypical
14	Shoulder Bolt NSN 5306-01-450-5947 · P/N 12340259-10 BOLT,SHOULDER FOR REPAIR ONLY,USE WITH ITEM 13 AND 27,7/16-20 X 1.31 USBL EFF 1 THRU 99,999 Fits: All A0 models, plus M1121	2	We can source it $65–$115 eachtypical
15	Straight Shaft NSN 3040-01-192-1632 · P/N 12338536 SHAFT,STRAIGHT Fits: All A0 models, plus M1121	2	14 in stock $25–$60 eachtypical
16	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: All A0 models, plus M1121	20	354 in stock
17	Angle Bracket NSN 5340-01-185-8723 · P/N 12338540 BRACKET,ANGLE Fits: All A0 models, plus M1121	4	1 in stock
18	Vehicular Safety Belt NSN 2540-01-203-0183 · P/N E06879-00 BELT,VEHICULAR SAFE USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	2	2,619 in stock $30–$65 eachtypical
19	Machine Bolt NSN 5306-00-226-4826 · P/N B1821BH031C088N BOLT,MACHINE 5/16-18 X 7/8 Fits: All A0 models, plus M1121	16	188 in stock
20	Clamping Catch NSN 5340-01-197-1294 · P/N 20L01-1-1AF CATCH,CLAMPING Fits: All A0 models, plus M1121	2	8 in stock
21	Blind Rivet NSN 5320-01-254-4251 · P/N 5593050 RIVET,BLIND 3/16 DIA Fits: All A0 models, plus M1121	4	62 in stock
22	Metal Molding NSN 2590-01-261-5485 · P/N 5591553 MOLDING,METAL Fits: All A0 models, plus M1121	1	7 in stock
23	Catch Strike NSN 5340-01-087-4612 · P/N 20L02-1-1AA STRIKE,CATCH Fits: All A0 models, plus M1121	2	2 in stock
24	Blind Rivet NSN 5320-01-143-5079 · P/N HC3213-4-04 RIVET,BLIND 1/8 DIA Fits: All A0 models, plus M1121	4	We can source it
25	Battery Box Cover NSN 6160-01-263-9784 · P/N 12339038 COVER,BATTERY BOX Fits: All A0 models, plus M1121	1	We can source it
26	Cap Hexagon Head Screw NSN 5306-00-226-4825 · P/N B1821BH031C075N BOLT,MACHINE 5/16-18 X 3/4 Fits: All A0 models, plus M1121	4	761 in stock

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
