HMMWV Pioneer Tool Stowage Tray Assembly TM 9-2320-280-24P · Fig. 240

Every part in figure 240 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 31 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

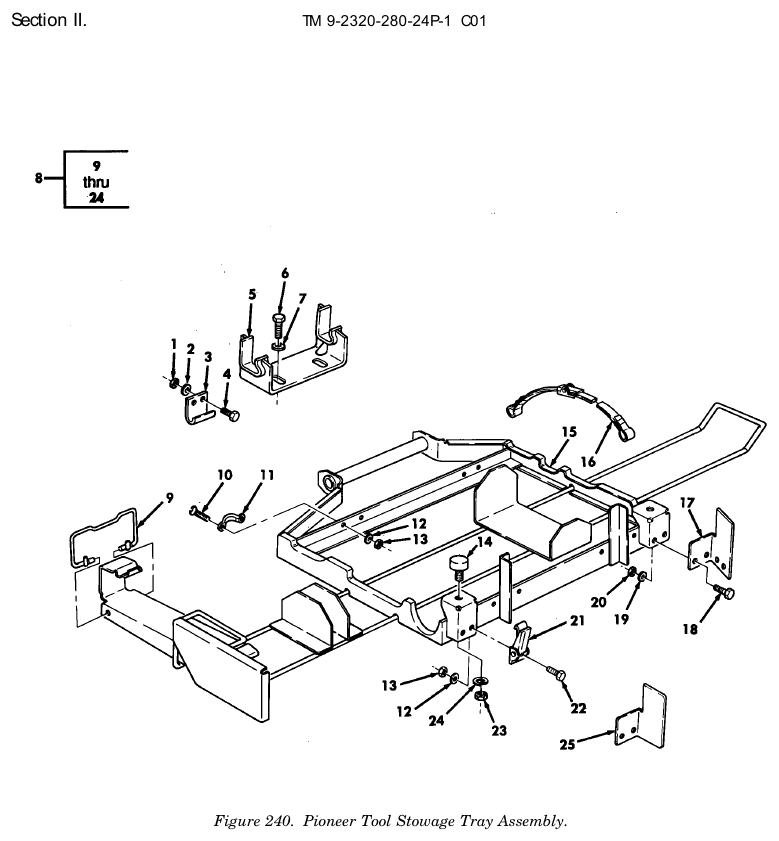

TM 9-2320-280-24P figure 240, Pioneer Tool Stowage Tray Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.
