HMMWV Rear Seatbelts, Brackets, and Mounting Hardware TM 9-2320-280-24P · Fig. 239

Every part in figure 239 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1806 Upholstery Seats and Carpet: 15 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

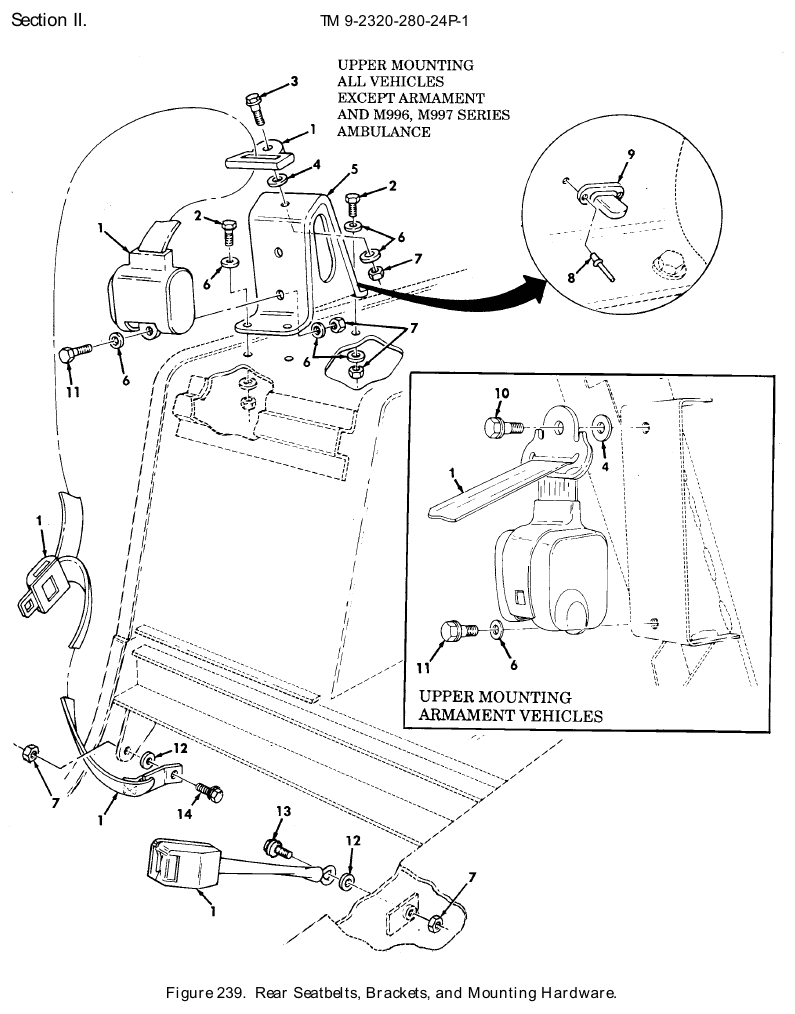

TM 9-2320-280-24P figure 239, Rear Seatbelts, Brackets, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Safety Belt NSN 2540-01-315-3143 · P/N F07011 BELT,VEHICULAR SAFE REAR LEFT AND RIGHT,USBL EFF 100,000 AND ABOVE Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	2	11 in stock
2	Cap Hexagon Head Screw NSN 5305-01-315-7066 · P/N 9425339 SCREW,CAP,HEXAGON H 7/16-20 X 1.25, USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M998, M998A1, M1035, M1035A1 and 12 more	8	We can source it
3	Shoulder Bolt NSN 5306-01-315-7087 · P/N 12340259-5 BOLT,SHOULDER 7/16-20 X 1.25,USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M998, M998A1, M1035, M1035A1 and 12 more	2	We can source it
4	Flat Washer NSN 5310-01-286-6077 · P/N 12341856 WASHER,FLAT 7/16-20,USBL EFF 100, 000 AND ABOVE Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	2	76 in stock
5	Mounting Bracket NSN 2530-01-334-2887 · P/N 12342374 BRACKET,MOUNTING USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M998, M998A1, M1035, M1035A1 and 13 more	2	61 in stock $221.02 per eachgov't list price
6	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16,USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M998, M998A1, M1035, M1035A1 and 14 more	12	170 in stock
6	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16,USBL EFF 100,000 AND ABOVE Fits: All A2 models except M997A2, M1097A2, plus M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 11 more	2	170 in stock
7	Self-Locking Hexagon Nut NSN 5310-01-315-3403 · P/N 9442938 NUT,SELF-LOCKING,HE 7/16-20,USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M998, M998A1, M1035, M1035A1 and 13 more	6	We can source it
8	Blind Rivet NSN 5320-01-029-8205 · P/N M24243/1-A405 RIVET,BLIND 1/4,USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M998, M998A1, M1035, M1035A1 and 13 more	4	We can source it
9	Turnbutton Fastener Stud NSN 5325-00-823-5999 · P/N XB78323-05001 STUD,TURNBUTTON FAS USBL EFF 100, 000 AND ABOVE Fits: M966, M966A1, M998, M998A1, M1035, M1035A1 and 13 more	2	22 in stock
10	Shoulder Bolt NSN 5306-01-316-2433 · P/N 12340259-7 BOLT,SHOULDER 7/16-20 X 1.00 USBL EFF 100,000 AND ABOVE Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 5 more	2	62 in stock
11	Machine Bolt NSN 5306-01-185-7052 · P/N 9419293 BOLT,MACHINE 7/16-20 X 1.00,USBL EFF 100,000 AND ABOVE Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	16 in stock
12	Flat Washer NSN 5310-01-253-8437 · P/N 12340058 WASHER,FLAT 7/16,USBLE EFF 100,000 AND ABOVE Fits: M966, M966A1, M998, M998A1, M1035, M1035A1 and 13 more	4	We can source it
13	Shoulder Bolt NSN 5306-01-437-8056 · P/N 12340259-11 BOLT,SHOULDER FOR REPAIR ONLY,USE WITH ITEMS 7 AND 12,REAR SEAT BELTS 7/16-20 X 1.47 USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M998, M998A1, M1035, M1035A1 and 13 more	2	121 in stock
14	Shoulder Bolt NSN 5306-01-437-8058 · P/N 12340259-13 BOLT,SHOULDER FOR REPAIR ONLY,USE WITH ITEMS 7 AND 12,REAR SEAT BELTS 7/16-20 X 1.03 USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M998, M998A1, M1035, M1035A1 and 13 more	2	106 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
