HMMWV TOW Missle Rack Assembly and Mounting Hardware TM 9-2320-280-24P · Fig. 242

Every part in figure 242 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 10 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

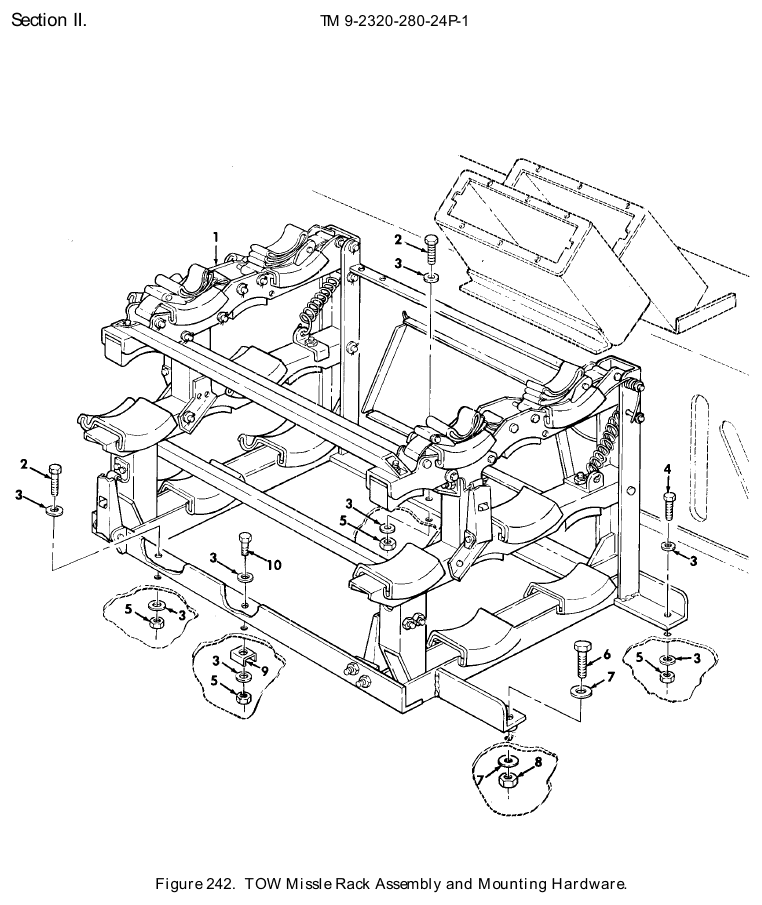

TM 9-2320-280-24P figure 242, TOW Missle Rack Assembly and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Missi Rack Assembly NSN 2540-01-246-8283 · P/N 12339821 RACK ASSEMBLY,MISSI Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it quote only $5,000.55 per assemblygov't list price
2	Cap Hexagon Head Screw NSN 5305-00-226-4831 · P/N B1821BH031C150N SCREW,CAP,HEXAGON H 5/16-18 X 1.50 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	3	221 in stock
3	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	10	471 in stock
4	Machine Bolt NSN 5306-00-226-4833 · P/N B1821BH031C200N BOLT,MACHINE 5/16-18 X 2.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	23 in stock
5	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	5	354 in stock
6	Cap Hexagon Head Screw NSN 5305-00-071-2070 · P/N B1821BH050C175N SCREW,CAP,HEXAGON H 1/2-13 X 1.75 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	4,200 in stock $52.99our price Buy online ↗
7	Flat Washer NSN 5310-01-121-1703 · P/N 2436165 WASHER,FLAT 1/2 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	2,218 in stock
8	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	1,713 in stock
9	Mounting Bracket NSN 5340-01-247-7911 · P/N 12340569 BRACKET,MOUNTING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
10	Machine Bolt NSN 5306-00-226-4827 · P/N B1821BH031C100N BOLT,MACHINE 5/16-18 X 1.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	292 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
