HMMWV TOW Missle Rack Assembly, Upper Rack, Support, and Mounting Hardware TM 9-2320-280-24P · Fig. 243

Every part in figure 243 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 34 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

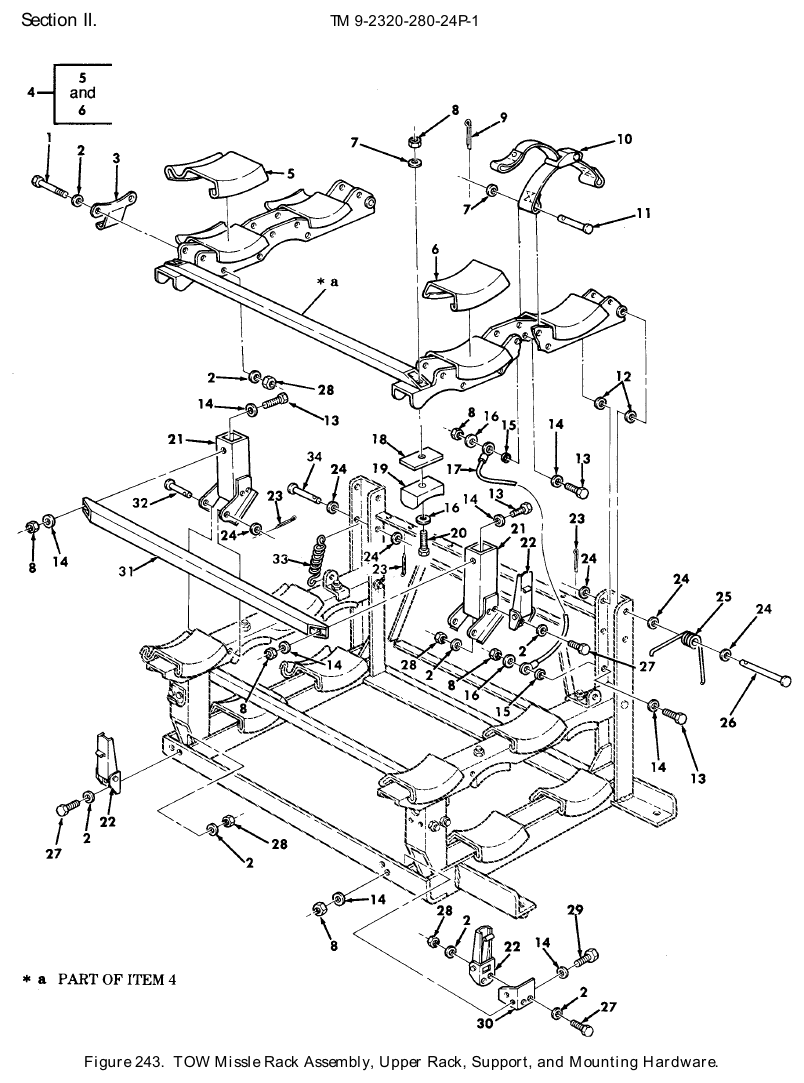

TM 9-2320-280-24P figure 243, TOW Missle Rack Assembly, Upper Rack, Support, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-01-255-2670 · P/N 12341815 SCREW,MACHINE #10-24 X 2.62 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it
2	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	24	909 in stock
3	Catch Strike NSN 5340-01-256-4659 · P/N 12339760 STRIKE,CATCH UPPER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
4	Missile Rack Assembly NSN 2540-01-246-8284 · P/N 12339819 RACK ASSEMBLY,MISSI UPPER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	15 in stock quote only $12,571.74 per assemblygov't list price
5	Cushioning Pad NSN 2590-01-235-8661 · P/N 12339778 PAD,CUSHIONING REAR Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	70 in stock
6	Cushioning Pad NSN 2590-01-194-0309 · P/N 12339777 PAD,CUSHIONING FRONT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	3 in stock
7	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	16	2,325 in stock
8	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	14	626 in stock
9	Cotter Pin NSN 5315-00-839-5820 · P/N MS24665-134 PIN,COTTER 1/16 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	121 in stock
10	Webbing Strap NSN 5340-01-203-5634 · P/N 44647-10 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	2 in stock $25–$45 eachtypical
11	Straight Headed Pin NSN 5315-00-840-9653 · P/N MS20392-3C67 PIN,STRAIGHT,HEADED 1/4 X 2.29 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	We can source it
12	Flat Washer NSN 5310-01-256-4491 · P/N 5610-140-62 WASHER,FLAT 5/16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it
13	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	248 in stock
14	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	10	351 in stock
15	Flat Washer NSN 5310-01-117-3446 · P/N 1851863-4 WASHER,FLAT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
16	Flat Washer NSN 5310-00-809-3078 · P/N MS27183-11 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	10	52 in stock
17	Single Leg Wire Rope Assembly NSN 4010-01-203-0411 · P/N HC-9.56 WIRE ROPE ASSEMBLY, Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it quote only $25–$40 per assemblytypical
18	Plate Spacer NSN 5365-01-196-2699 · P/N 12339767 SPACER,PLATE FRONT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it $25–$40 eachtypical
19	Bumper NSN 5340-01-195-5397 · P/N 5579818 BUMPER,NONMETALLIC Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	3 in stock $30–$70 eachtypical
20	Machine Screw NSN 5305-01-075-0957 · P/N MS51849-100 SCREW,MACHINE 1/4-20 X 1.50 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	We can source it
21	Structural Vehicul Frame Section NSN 2510-01-252-4756 · P/N 12339784 FRAME SECTION,STRUC UPPER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it $90–$150 per assemblytypical
22	Clamping Catch NSN 5340-01-206-5040 · P/N 18L01-1X1AA CATCH,CLAMPING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	435 in stock $25–$50 eachtypical
23	Cotter Pin NSN 5315-00-842-3044 · P/N MS24665-283 PIN,COTTER 3/32 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	6	3,000 in stock
24	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	10	1,368 in stock
25	Helical Torsion Spring NSN 2940-01-195-6200 · P/N 5584854 SPRING,HELICAL,TORS Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	1 in stock
26	Straight Headed Pin NSN 5315-01-255-2764 · P/N 5596460 PIN,STRAIGHT,HEADED 5/16 X 4.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it $25–$45 eachtypical
27	Machine Screw NSN 5305-01-005-6715 · P/N MS51849-77 SCREW,MACHINE #10-24 X .88 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	We can source it
28	Self-Locking Hexagon Nut NSN 5310-00-208-1918 · P/N AN365-1024A NUT,SELF-LOCKING,HE #10-24 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	12	118 in stock
29	Machine Screw NSN 5305-00-954-3937 · P/N MS35190-290 SCREW,MACHINE 1/4-20 X 7/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
30	Angle Bracket NSN 5340-01-256-4515 · P/N 12339763 BRACKET,ANGLE LOWER FRONT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	1 in stock $184.01 per eachgov't list price
31	Connector Bar NSN 5340-01-248-7621 · P/N 5593624 BAR,METAL UPPER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $30–$55 eachtypical
32	Straight Headed Pin NSN 5315-00-240-0251 · P/N MS20392-4C77 PIN,STRAIGHT,HEADED 5/16 X 2.656 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	2 in stock $30–$70 eachtypical
33	Helical Extension Spring NSN 5360-01-255-2808 · P/N E1000-105-3500M SPRING,HELICAL,EXTE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
34	Straight Headed Pin NSN 5315-01-255-2763 · P/N 5596459 PIN,STRAIGHT,HEADED 5/16 X 3.50 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it $25–$50 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
