HMMWV MGS Battery Stowage Rack and Related Parts TM 9-2320-280-24P · Fig. 247

Every part in figure 247 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 28 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

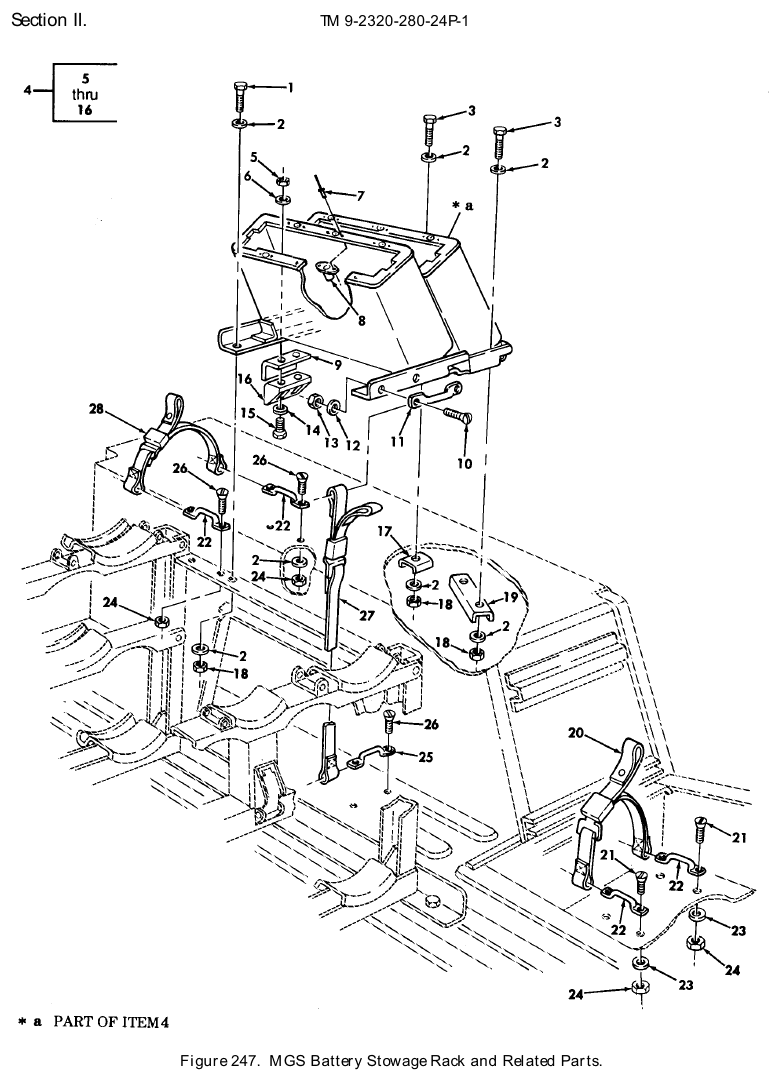

TM 9-2320-280-24P figure 247, MGS Battery Stowage Rack and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	559 in stock
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	16	351 in stock
3	Machine Screw NSN 5305-00-958-5246 · P/N MS35190-289 SCREW,MACHINE 1/4-20 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	6	146 in stock
4	Battery Rack NSN 6140-01-188-5113 · P/N 12339750 RACK,BATTERY Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	9 in stock $1,141.41 per eachgov't list price
5	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	626 in stock
6	Flat Washer NSN 5310-00-809-3078 · P/N MS27183-11 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	52 in stock
7	Blind Rivet NSN 5320-01-362-6195 · P/N AAC-32 RIVET,BLIND Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	24	We can source it
8	Receptacle Fastener NSN 5325-00-886-1067 · P/N 10224818 FASTENER,RECEPTACLE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	12	We can source it $45–$85 eachtypical
9	Angle Bracket NSN 5340-01-283-2458 · P/N 5583556-B BRACKET,ANGLE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $40–$75 eachtypical
10	Machine Screw NSN 5305-00-995-3444 · P/N MS35207-266 SCREW,MACHINE #10-32 X 7/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	100 in stock
11	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411-B LOOP,STRAP FASTENER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	621 in stock
12	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	909 in stock
13	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it
14	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	351 in stock
15	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N B1821BH025C088N SCREW,CAP,HEXAGON H 1/4-20 X 7/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
16	Bumper NSN 5340-01-259-7523 · P/N 5583555 BUMPER,NONMETALLIC Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
17	Retaining Strap NSN 5340-01-198-2248 · P/N 5582423 STRAP,RETAINING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	3	We can source it $25–$50 eachtypical
18	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	626 in stock
19	Retaining Strap NSN 5340-01-199-8258 · P/N 12339758 STRAP,RETAINING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $25–$40 eachtypical
20	Webbing Strap NSN 5340-01-198-2255 · P/N 44647-12 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	57 in stock $25–$40 eachtypical
21	Machine Screw NSN 5305-01-255-1016 · P/N 5592884 SCREW,MACHINE #10-32 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it
22	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411-B LOOP,STRAP FASTENER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	621 in stock
23	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it
24	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	We can source it
25	Retaining Strap NSN 5340-01-214-1778 · P/N 12338839-7 STRAP,RETAINING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $35–$70 eachtypical
26	Machine Screw NSN 5305-01-255-1016 · P/N 5592884 SCREW,MACHINE #10-32 X 5/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	6	We can source it
27	Webbing Strap NSN 5340-01-203-4646 · P/N 44648-15 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $30–$65 eachtypical
28	Webbing Strap NSN 5340-01-203-2708 · P/N 44648-17 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $25–$55 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
