HMMWV TOW Tripod, Fuel Can, M16 Ammo Stowage Brackets, Telephone Cable Reel, Combat Ration Straps, and Mounting Components TM 9-2320-280-24P · Fig. 246

Every part in figure 246 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 39 lines, 20 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

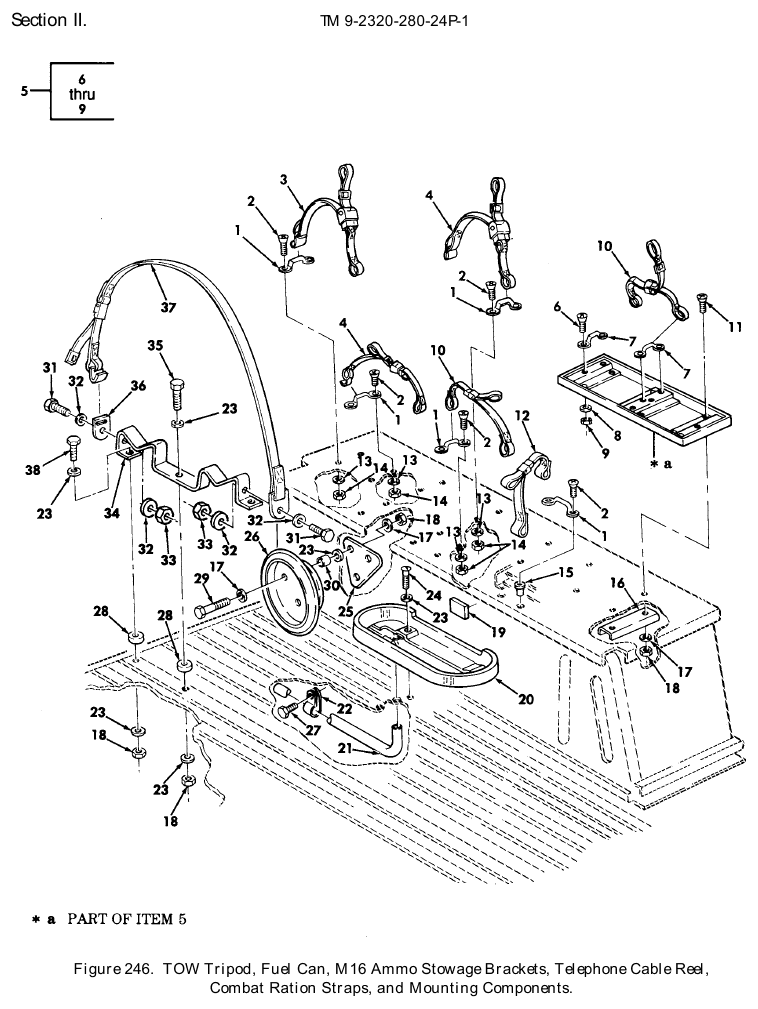

TM 9-2320-280-24P figure 246, TOW Tripod, Fuel Can, M16 Ammo Stowage Brackets, Telephone Cable Reel, Combat Ration Straps, and Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411-B LOOP,STRAP FASTENER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	9	621 in stock
2	Machine Screw NSN 5305-00-993-1848 · P/N MS35207-265 SCREW,MACHINE #10-32 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	18	55 in stock
3	Webbing Strap NSN 5340-01-199-1663 · P/N 45096-11 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	4 in stock $25–$40 eachtypical
4	Webbing Strap NSN 5340-01-198-5165 · P/N 45096-10 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
5	Ammunition Stowage Rack NSN 2590-01-188-7384 · P/N 12340174 RACK,AMMUNITION STO Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	52 in stock $288.97 per eachgov't list price
6	Screw NSN 5305-01-185-0114 · P/N 157166 SCREW #10-32 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	We can source it
7	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411-B LOOP,STRAP FASTENER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	621 in stock
8	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	909 in stock
9	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	We can source it
10	Webbing Strap NSN 5340-01-198-2255 · P/N 44647-12 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	3	57 in stock $25–$40 eachtypical
11	Machine Screw NSN 5305-00-719-5017 · P/N MS51959-82 SCREW,MACHINE 1/4-20 X 7/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	6	300 in stock
12	Webbing Strap NSN 5340-01-258-6157 · P/N 45606-11 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	1 in stock $25–$40 eachtypical
13	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	18	909 in stock
14	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	16	We can source it
15	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N 12339998-14 NUT,PLAIN,BLIND RIV #10-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
16	Retaining Strap NSN 5340-01-198-2249 · P/N 12340129 STRAP,RETAINING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it $324.42 per eachgov't list price
17	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	12	351 in stock
18	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	12	626 in stock
19	Retaining Strap NSN 5340-01-253-5479 · P/N 12340130 STRAP,RETAINING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
20	Fuel Can Tray NSN 2510-01-197-8572 · P/N 12340155 TRAY,FUEL CAN Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	27 in stock $30–$70 eachtypical
21	Hose Make From Hose P/N 5578887 HOSE MAKE FROM HOSE, P/N 9440949, 11 INCHES LONG Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	Ask us
22	Loop Clamp NSN 5340-00-282-7537 · P/N MS21333-41 CLAMP,LOOP Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	4 in stock
23	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	2,325 in stock
24	Machine Screw NSN 5305-00-071-1318 · P/N MS51957-83 SCREW,MACHINE 1/4-20 X 1.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	6 in stock
25	Plate Spacer NSN 5365-01-211-6083 · P/N 5579811 SPACER,PLATE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $25–$45 eachtypical
26	Mounting Bracket NSN 5340-01-196-7733 · P/N 12339753 BRACKET,MOUNTING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $40–$80 eachtypical
27	Tapping Screw NSN 5305-01-255-2675 · P/N 5592970 SCREW,TAPPING 1/4-14 X 5/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
28	Sleeve Spacer NSN 5365-01-256-4526 · P/N 12339814-6 SPACER,SLEEVE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
29	Cap Hexagon Head Screw NSN 5305-00-071-2510 · P/N B1821BH025C175N SCREW,CAP,HEXAGON H 1/4-20 X 1.75 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	3	We can source it
30	Sleeve Spacer NSN 5365-01-214-0006 · P/N 12339814-2 SPACER,SLEEVE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	3	We can source it
31	Machine Screw NSN 5305-00-071-1322 · P/N MS51960-65 SCREW,MACHINE #10-24 X 1.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	100 in stock
32	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it
33	Plain Hexagon Nut NSN 5310-00-934-9764 · P/N MS35649-205 NUT,PLAIN,HEXAGON #10-24 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	24 in stock
34	Mounting Bracket NSN 5340-01-246-8290 · P/N 12339754 BRACKET,MOUNTING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $35–$75 per assemblytypical
35	Cap Hexagon Head Screw NSN 5305-00-071-2509 · P/N B1821BH025C150N SCREW,CAP,HEXAGON H 1/4-20 X 1.50 Fits: M966, M966A1, M1045, M1045A1, M1046, M1046A1 and 1 more	3	558 in stock
35	Cap Hexagon Head Screw NSN 5305-00-071-2509 · P/N B1821BH025C150N SCREW,CAP,HEXAGON H 1/4-20 X 1.50 Fits: M1045A2	2	558 in stock
36	Strap Fastener Loop NSN 5340-01-256-4657 · P/N 5594703 LOOP,STRAP FASTENER Fits: M966, M966A1, M1045, M1045A1, M1046, M1046A1 and 1 more	1	We can source it
37	Webbing Strap NSN 5340-01-259-3956 · P/N 45302-11 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $25–$60 eachtypical
38	Cap Hexagon Head Screw NSN 5305-00-071-2510 · P/N B1821BH025C175N SCREW,CAP,HEXAGON H Fits: M1045A2	1	We can source it
