HMMWV TOW Night Sight Batteries and Coolant, Radiac Meter, Night Vision Goggles Stowage, and TAS Carry Bag Stowage TM 9-2320-280-24P · Fig. 249

Every part in figure 249 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 49 lines, 27 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

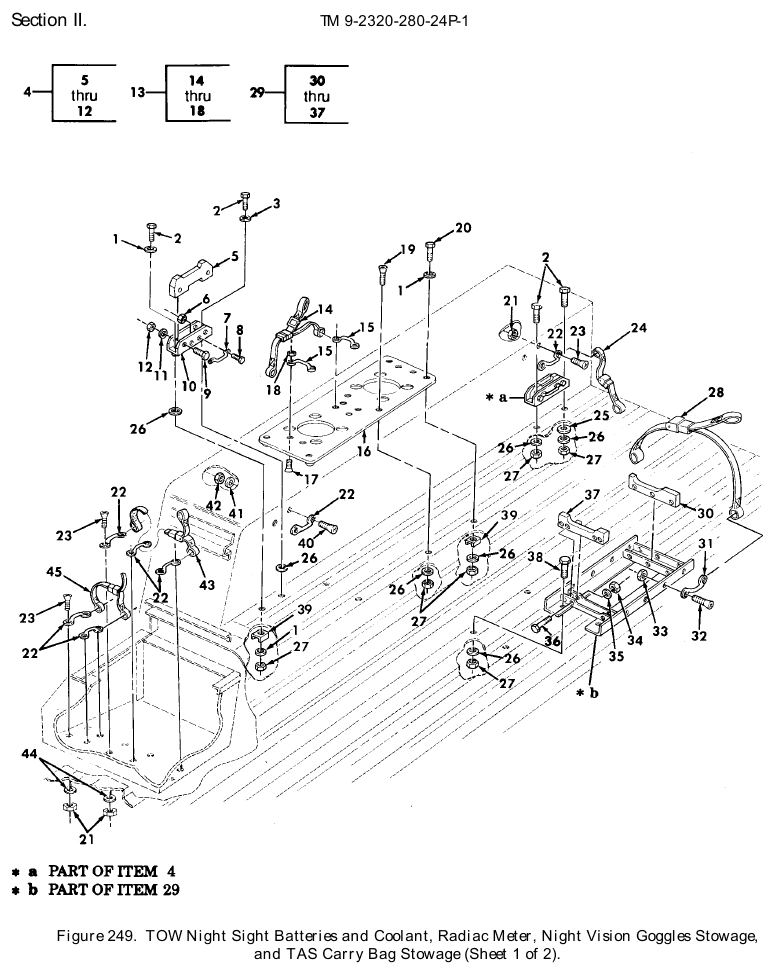

TM 9-2320-280-24P figure 249, TOW Night Sight Batteries and Coolant, Radiac Meter, Night Vision Goggles Stowage, and TAS Carry Bag Stowage, sheet 1 of 2: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	8	2,325 in stock
2	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	4	559 in stock
3	Lock Washer NSN 5310-00-274-8715 · P/N MS35338-63 WASHER,LOCK 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	We can source it
4	Mounting Bracket NSN 5340-01-188-7383 · P/N 12339813 BRACKET,MOUNTING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	We can source it $201.67 per eachgov't list price
5	Cushioning Pad NSN 2590-01-194-6981 · P/N 12339811 PAD,CUSHIONING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	2 in stock $50–$95 eachtypical
6	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	We can source it
7	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411-B LOOP,STRAP FASTENER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	621 in stock
8	Machine Screw NSN 5305-01-255-1016 · P/N 5592884 SCREW,MACHINE #10-32 X 5/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	We can source it
9	Cap Hexagon Head Screw NSN 5305-00-071-2510 · P/N B1821BH025C175N SCREW,CAP,HEXAGON H 1/4-20 X 1.75 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	We can source it
10	Channel Assembly P/N 5582902 CHANNEL ASSEMBLY Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	Ask us
11	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	351 in stock
12	Self-Locking Nut NSN 5310-01-255-2695 · P/N 5593035 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	We can source it
13	NI Bracket Assembly NSN 2590-01-246-8291 · P/N 12339818 BRACKET ASSEMBLY,NI Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	27 in stock $300.21 per assemblygov't list price
14	Webbing Strap NSN 5340-01-198-2255 · P/N 44647-12 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	57 in stock $25–$40 eachtypical
15	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411-B LOOP,STRAP FASTENER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	4	621 in stock
16	Base Assembly P/N 5593985 BASE ASSEMBLY Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	Ask us
17	Machine Screw NSN 5305-00-958-5471 · P/N MS35190-273 SCREW,MACHINE #10-24 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	8	200 in stock
18	Self-Locking Hexagon Nut NSN 5310-00-208-1918 · P/N AN365-1024A NUT,SELF-LOCKING,HE #10-24 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	8	118 in stock
19	Machine Screw NSN 5305-01-255-1017 · P/N 5592846 SCREW,MACHINE 1/4-20 X 1.50 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	We can source it
20	Cap Hexagon Head Screw NSN 5305-00-071-2509 · P/N B1821BH025C150N SCREW,CAP,HEXAGON H 1/4-20 X 1.50 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	4	558 in stock
21	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	12	We can source it
22	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411-B LOOP,STRAP FASTENER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	7	621 in stock
23	Machine Screw NSN 5305-01-251-0728 · P/N 5592823 SCREW,MACHINE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	12	482 in stock
24	Webbing Strap NSN 5340-01-198-2254 · P/N 44648-20 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	We can source it
25	Flat Washer NSN 5310-01-252-0513 · P/N 5592916 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	1,375 in stock
26	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	13	351 in stock
27	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	13	626 in stock
28	Webbing Strap NSN 5340-01-203-6538 · P/N 44648-19 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	We can source it $25–$40 eachtypical
29	Mounting Bracket NSN 5340-01-188-7382 · P/N 12339805 BRACKET,MOUNTING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	We can source it $263.83 per assemblygov't list price
30	Cushioning Pad NSN 2590-01-194-6980 · P/N 12339803 PAD,CUSHIONING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	32 in stock $55–$90 eachtypical
31	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411-B LOOP,STRAP FASTENER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	4	621 in stock
32	Machine Screw NSN 5305-01-255-1016 · P/N 5592884 SCREW,MACHINE #10-32 X 5/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	8	We can source it
33	Self-Locking Nut NSN 5310-01-252-0481 · P/N 5593048 NUT,SELF-LOCKING,HE #10-32 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	8	We can source it
34	Self-Locking Nut NSN 5310-01-255-2695 · P/N 5593035 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1038, M1045A1, M1045A2, M1046 and 1 more	7	We can source it
35	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	7	351 in stock
36	Cap Hexagon Head Screw NSN 5305-00-071-2513 · P/N B1821BH025C250N SCREW,CAP,HEXAGON H 1/4-20 X 2.50 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	7	We can source it
37	Cushioning Pad NSN 2590-01-194-6979 · P/N 12339802 PAD,CUSHIONING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	1 in stock $35–$70 eachtypical
38	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H 1/4-20 X 1.25 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	4	298 in stock
39	Retaining Strap NSN 5340-01-198-2248 · P/N 5582423 STRAP,RETAINING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	3	We can source it $25–$50 eachtypical
40	Machine Screw NSN 5305-01-254-2451 · P/N 5592862 SCREW,MACHINE #10-24 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	We can source it
41	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	909 in stock
42	Self-Locking Hexagon Nut NSN 5310-00-208-1918 · P/N AN365-1024A NUT,SELF-LOCKING,HE #10-24 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	2	118 in stock
43	Webbing Strap NSN 5340-01-198-2256 · P/N 44648-22 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	90 in stock $25–$40 eachtypical
44	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	10	We can source it
45	Webbing Strap NSN 5340-01-198-2257 · P/N 44648-21 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 1 more	1	97 in stock $30–$65 eachtypical
46	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H 1/4-20 X 1.25 Fits: M1121	2	298 in stock
47	Strap Assembly NSN 5340-01-467-1669 · P/N 12340595-2 STRAP ASSEMBLY Fits: M1121	2	We can source it
48	Flat Washer NSN 3460-01-102-3170 · P/N 2436161 WASHER,FLAT 1/4 Fits: M1121	2	We can source it
49	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1121	2	626 in stock
